Quick Details
-
Brand Name:
-
Darsen
-
Model Number:
-
DS-301
-
Product name:
-
Automatic Bursting Strength Tester
-
Bursting strength range:
-
250~5600kPa
-
Unit change:
-
KG, lb, Kpa
-
Resolution:
-
1 kPa
-
Accuracy:
-
±0.5%FS
-
Pressure speed:
-
170±10ml/min
-
Specimen clumping force:
-
more than 690kPa
-
Clamping ring diameter:
-
Dia. 31.5mm
-
Power supply:
-
AC220 V±10%,50Hz
-
Dimension and weight:
-
480*420*570mm, 55KG
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Darsen
-
Model Number:
-
DS-301
-
Product name:
-
Automatic Bursting Strength Tester
-
Bursting strength range:
-
250~5600kPa
-
Unit change:
-
KG, lb, Kpa
-
Resolution:
-
1 kPa
-
Accuracy:
-
±0.5%FS
-
Pressure speed:
-
170±10ml/min
-
Specimen clumping force:
-
more than 690kPa
-
Clamping ring diameter:
-
Dia. 31.5mm
-
Power supply:
-
AC220 V±10%,50Hz
-
Dimension and weight:
-
480*420*570mm, 55KG

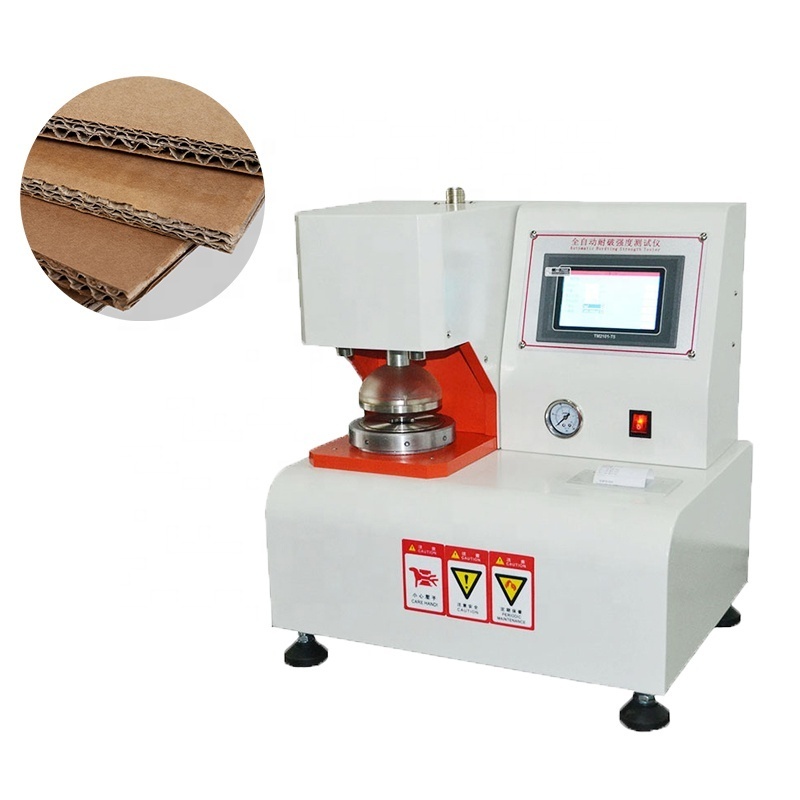

DDarsen DS-301 Digital Paper Cardboard Automatic Bursting Strength Test Machine Mullen Compression Tester
Summary :
The full-automatic Bursting(rupture) strength tester is an international Mullen instrument, which is widely used in packaging materials. It is mainly used to measure the rupture strength of various paperboards and single-layer and multi-layer corrugated paperboards, as well as non paper materials such as silk and cotton cloth. It is suitable for testing the rupture strength of corrugated boxes in factories such as electronics, electrical appliances, wires, hardware, bicycles, handbags, food, shoes and furniture. It can also test synthetic leather and cloth.
Test Standards :
ASTM-D2210 | ISO-2759 | JIS-L1018 , L1004, L1031, K6328, P8131, P8112 | TAPPI-T403 | GB/T 1539 |QB/T1057 and so on.
Main Feature s:
1. After the cardboard is crushed, it will stop automatically and return to the initial position
2. Fully automatic one button operation
3. It can store 50 groups of data at the same time
4. Equipped with micro printing, test results can be printed
5. Equipped with emergency stop button to improve operation safety
6. Equipped with air pressure gauge to monitor the pressure at any time
7. High Definition LCD / touch screen display, easy to operate
8. Change the traditional method of glycerin + water and use silicone oil to prevent the machine from rusting and prolong the service life of the machine.
Technical Specifications:
|
Bursting strength range |
250~5600kPa |
|
Unit change |
KG, lb, Kpa |
|
Resolution |
1 kPa |
|
Accuracy |
±0.5%FS |
|
Pressure speed |
170±10ml/min |
|
Specimen clumping force |
more than 690kPa |
|
Clamping ring diameter |
Φ 31.5mm |
|
Power supply |
AC220 V±10%,50Hz |
|
Dimen s ion |
480*420*570mm |
|
Machine weight |
About 55kg |
We have professional packing team and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process: We offer below business term:
|
Accepted Delivery Terms |
FOB, CFR, CIF, EXW, DDP |
|
Accepted Payment Currency |
USD, EUR, HKD, CNY |
|
Accepted Payment Type |
T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Nearest Port |
Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
