Quick Details
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
certificate:
-
CE/ROHS,ISO9001
-
Power consumption:
-
6VA
-
Control way:
-
90-250v, 24V, 0-10v/4-20ma
-
Pipe Connection:
-
G/BSP
-
OEM:
-
Acceptable
-
Type:
-
BALL VALVES
Quick Details
-
Port Size:
-
1/2''-2''
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
W8BV3../WCBS3..
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
certificate:
-
CE/ROHS,ISO9001
-
Power consumption:
-
6VA
-
Control way:
-
90-250v, 24V, 0-10v/4-20ma
-
Pipe Connection:
-
G/BSP
-
OEM:
-
Acceptable
-
Type:
-
BALL VALVES
Description

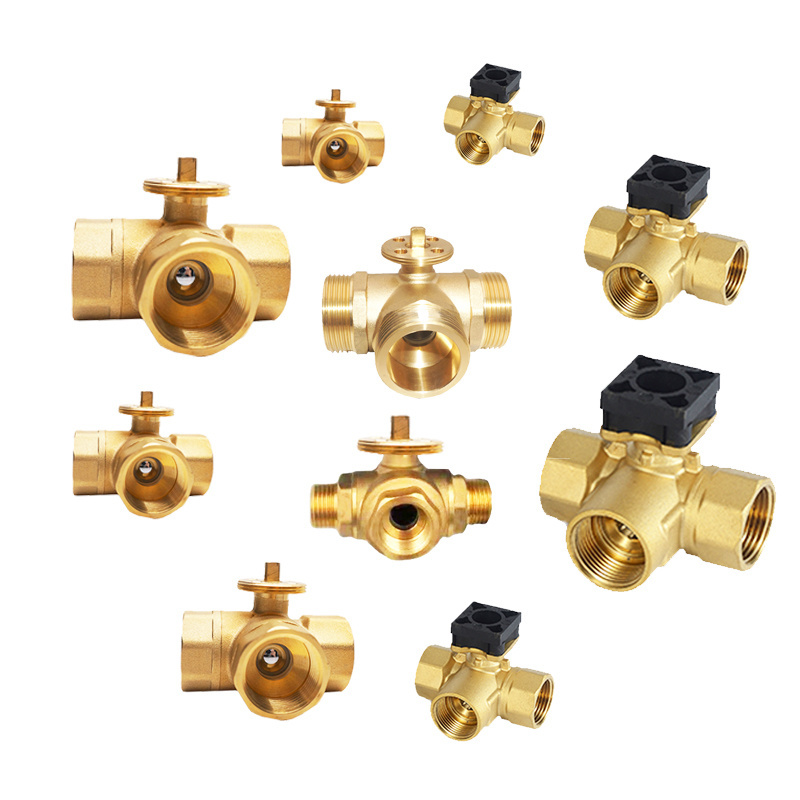

Winner brass ball valve can be used with multiple actuators in our store . Equal percentage flo w characteristic guarantees the valve performances of stability.
Application
Winvall motorized ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: − 5…+60°C ; 0…90%RH Size: G1/2 ’’ -G2 ’’
Flow characteristic: equal percentage , on/off Valve type: 2-way and 3-way
Material
V alve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass Stem: EPDM
Valve connector: PC Valve spindle : aluminum alloy
BSP Valve WCBS... series Type
|
Model No. |
DN(mm) |
Inch |
Kvs(m 3 /h) |
Pvmax ( M Pa) |
Ps (KPa) |
|
WCBS315 |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
|
WCBS320 |
DN20 |
3/4’’ |
6.3 |
2.5Mpa |
1400 |
|
WCBS325 |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
|
WCBS332 |
DN32 |
11/4'' |
16 |
2.5Mpa |
1400 |
|
WCBS340 |
DN40 |
11/2'' |
25 |
2.5Mpa |
1400 |
|
WCBS350 |
DN50 |
2” |
43 |
2.5Mpa |
1400 |
BSP Valve W8BV... series Type
|
Model No. |
|
Inner Dia. |
Inch |
Kvs(m 3 /h) |
Pmax(KPa) |
Ps(KPa) |
|
3-way
|
12mm |
1/2” |
8.6 |
1000 |
1400 |
|
|
W8BV320 |
15mm |
3/4” |
21 |
1000 |
1400 |
|
|
W8BV325 |
20mm |
1” |
26 |
1000 |
1400 |
|
|
W8BV332 |
10mm |
11/4” |
8.6 |
1000 |
1400 |
|
|
W8BV340 |
14mm |
11/2” |
21 |
1000 |
1400 |
|
|
W8BV350 |
18mm |
2” |
22 |
1000 |
1400 |
|
||
