Quick Details
-
Product name:
-

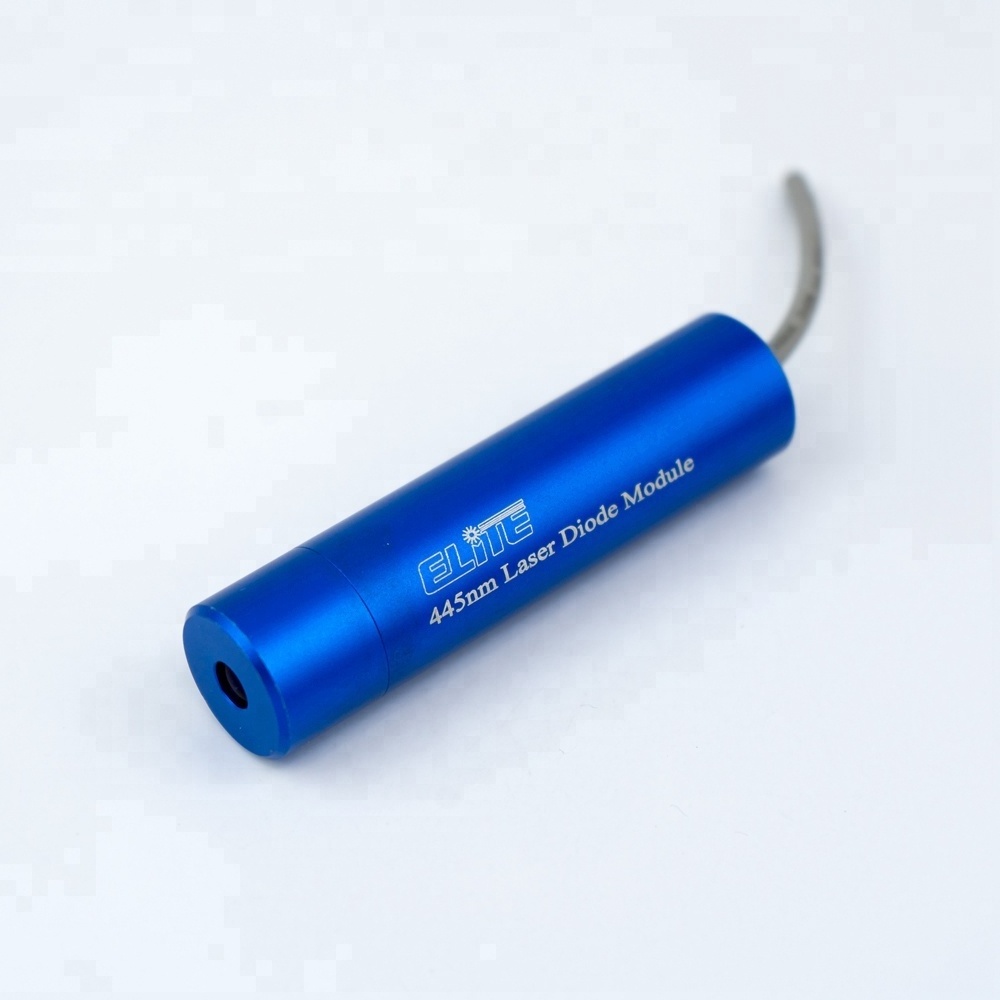

blue cyan-blue Laser Diode Module VB445D10VG2
-
Wavelength:
-
405nm, 445nm, 450nm, 488nm
-
Laser Sight:
-
Violet, purple, blue, cyan-blue
-
Material:
-
Aluminum black anodized or Brass
-
Lifetime:
-
>10,000hrs
-
Output power:
-
1mw to 1000mW
-
Laser type:
-
semiconductor diode
-
Lens:
-
Optical glass
-
Drive:
-
APC
-
Aperture:
-
1.0mm to 5.0mm
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
laser component
-
Weight (KG):
-
0.01 KG
-
Product name:
-
blue cyan-blue Laser Diode Module VB445D10VG2
-
Wavelength:
-
405nm, 445nm, 450nm, 488nm
-
Laser Sight:
-
Violet, purple, blue, cyan-blue
-
Material:
-
Aluminum black anodized or Brass
-
Lifetime:
-
>10,000hrs
-
Output power:
-
1mw to 1000mW
-
Laser type:
-
semiconductor diode
-
Lens:
-
Optical glass
-
Drive:
-
APC
-
Aperture:
-
1.0mm to 5.0mm
|
Specification
|
Industrial Diode Laser Module
|
|
|
|
|
|
|
||||||
|
Wavelength
|
405nm
|
450nm
|
488nm
|
520nm
|
635nm
|
650nm
|
|
||||||
|
|
808nm
|
830nm
|
850nm
|
905nm
|
940nm
|
980nm
|
|
||||||
|
|
660nm
|
670nm
|
685nm
|
705nm
|
730nm
|
780nm
|
|
||||||
|
Output Power
|
1,5,10,20,35,50,80,100,and130mW（Custom）
|
|
|
|
|
|
|
||||||
|
CDRH Class
|
I,II,IIIa,IIIb
|
|
|
|
|
|
|
||||||
|
Water Resistance
|
IP55~65
|
|
|
|
|
|
|
||||||
|
Aperture
|
Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm
|
|
|
|
|
|
|
||||||
|
Divergence
|
0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad
|
|
|
|
|
|
|
||||||
|
Circular Beam Size
|
Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m)
|
|
|
|
|
|
|
||||||
|
Elliptical Beam Size
|
1x2mm(@1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m）
|
|
|
|
|
|
|
||||||
|
Operaating Current
|
<300mA
|
|
|
|
|
|
|
||||||
|
Input Voltage
|
3.0V, 5.0V, 9.0V, 12.0V, 24.0V
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-20℃~60℃
|
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-40℃~85℃
|
|
|
|
|
|
|
||||||
|
MTBF
|
>10,000hours
|
|
|
|
|
|
|
||||||
Elite industrial Laser Diode Modules use high-quality laser diode with specially designed optical collimating lens and high stable driven circuit (APC).
Elite laser diode modules are all assessed with CE, ISO9001:2015, IEC certifications.
✔Compact Size Design
✔High Performance
✔High Reliability
✔High Product Quality
✔Water-resistance IP55~65
1.Small beam size from 5um 2.Compact and light weight
3.Long term stability 4.High reliability
5.High power density 6.Water-resistant IP55~65
Elite also offers the ultra-small beam laser diode module,specially designed for high precision instrument and equipment, widely used in precise positioning and high-precision detection.
