Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hailian
-
Model Number:
-

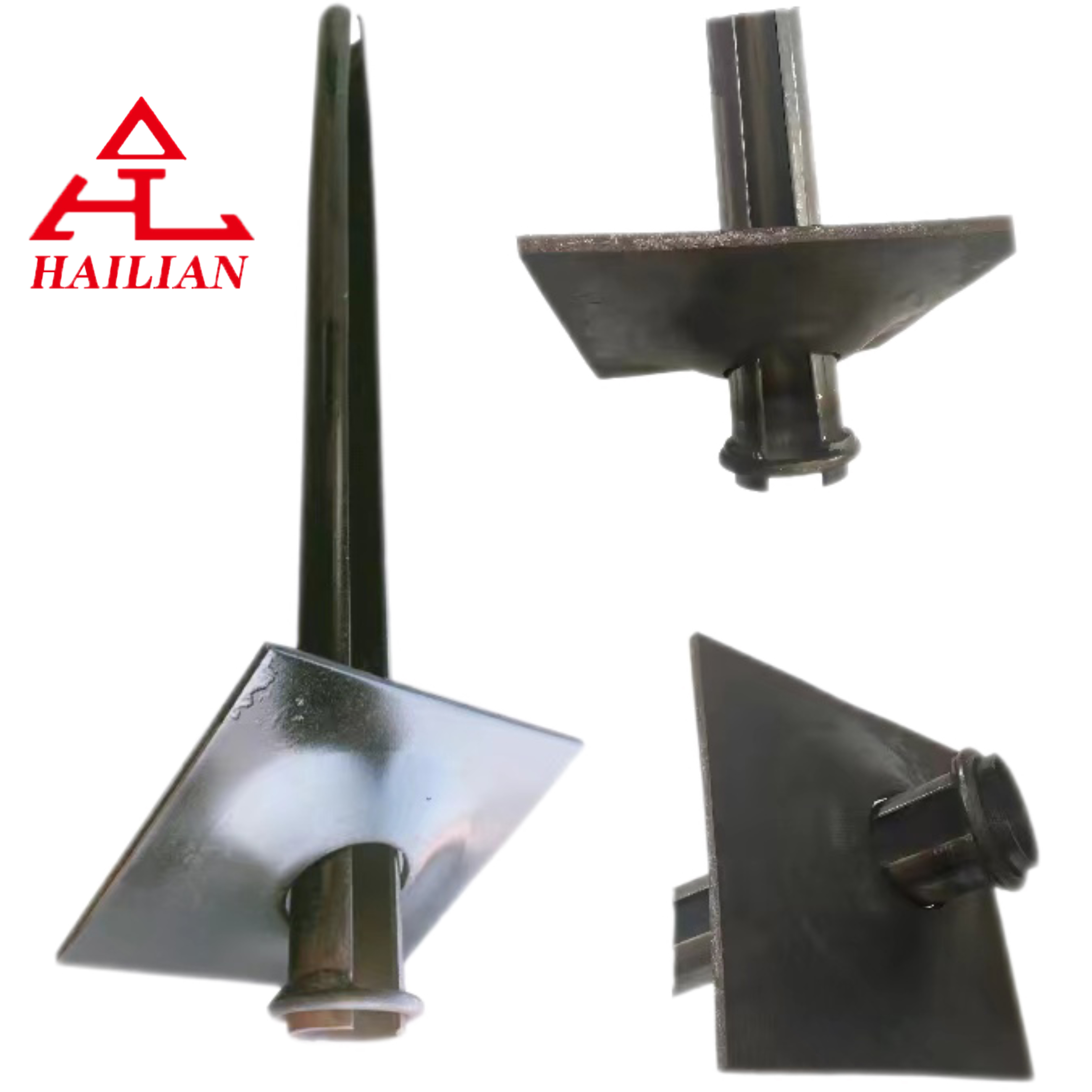

35*2.3, Rock split set bolts
-
Diameter:
-
35mm
-
Application:
-
Construction Foundation
-
Installation Site:
-
Surface Engineering
-
Anchor Type:
-
Rock Anchor
-
Sample:
-
Availabe
-
Warranty:
-
25 Years Life Time
-
Moq:
-
10 Pcs
-
Function:
-
Hydropower Engineering Reinforcement
Quick Details
-
System of Measurement:
-
mm
-
Material:
-
alloy steel
-
Capacity:
-
100KN--120KN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hailian
-
Model Number:
-
35*2.3, Rock split set bolts
-
Diameter:
-
35mm
-
Application:
-
Construction Foundation
-
Installation Site:
-
Surface Engineering
-
Anchor Type:
-
Rock Anchor
-
Sample:
-
Availabe
-
Warranty:
-
25 Years Life Time
-
Moq:
-
10 Pcs
-
Function:
-
Hydropower Engineering Reinforcement
Product Description
Specification
|
Series
|
Series
|
(KN)Bearing capacity
|
high-strength tray
|
|
length（mm）
|
|
|
|
|
|
Plate(global)
|
(KN)Bearing capacity
|
|
|
|
series MF- 33
|
33 × 2 . 3
|
100
|
120 × 120 × 5 . 0
|
≥ 100
|
914 - 3000
|
|
|
|
33 × 2 . 5
|
120
|
120 × 120 × 6 . 0
|
≥ 120
|
914 - 3000
|
|
|
series MF- 35
|
35 × 2 . 3
|
100
|
120 × 120 × 5 . 0
|
≥ 100
|
914 - 3000
|
|
|
|
35 × 2 . 5
|
120
|
120 × 120 × 6 . 0
|
≥ 120
|
914 - 3000
|
|
|
series MF- 39
|
39 × 2 . 5
|
130
|
150 × 150 × 5 . 0
|
≥ 150
|
1200 - 3000
|
|
|
|
39 × 3 . 0
|
150
|
150 × 150 × 6 . 0
|
≥ 180
|
1200 - 3000
|
|
|
series MF- 42
|
42 × 2 . 5
|
140
|
150 × 150 × 5 . 0
|
≥ 150
|
1400 - 3000
|
|
|
|
42 × 3 . 0
|
160
|
150 × 150 × 6 . 0
|
≥ 180
|
1400 - 3000
|
|
|
series MF- 46
|
46 × 2 . 5
|
150
|
150 × 150 × 6 . 0
|
≥ 180
|
1600 - 3000
|
|
|
|
46 × 3 . 0
|
170
|
150 × 150 × 6 . 0
|
≥ 180
|
1600 - 3000
|
|
|
series MF- 47
|
47 × 2 . 5
|
150
|
150 × 150 × 6 . 0
|
≥ 180
|
1600 - 3000
|
|
|
|
47 × 3 . 0
|
170
|
150 × 150 × 6 . 0
|
≥ 180
|
1600 - 3000
|
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
|
Bolt biameter
|
Bolt length
|
Taperture End Diameter
|
Width of cone groove
|
taper
length
|
Bolt groove width
|
Ring distanc
|
material specification
|
Coil specification
|
Ring opening Gap
|
