Quick Details
-
Model Number:
-
OPIP-2500
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
396*180*128mm
-
Weight:
-
7KG
-
Certificate:
-
CE ROHS, CE ROHS
-
Product name:
-

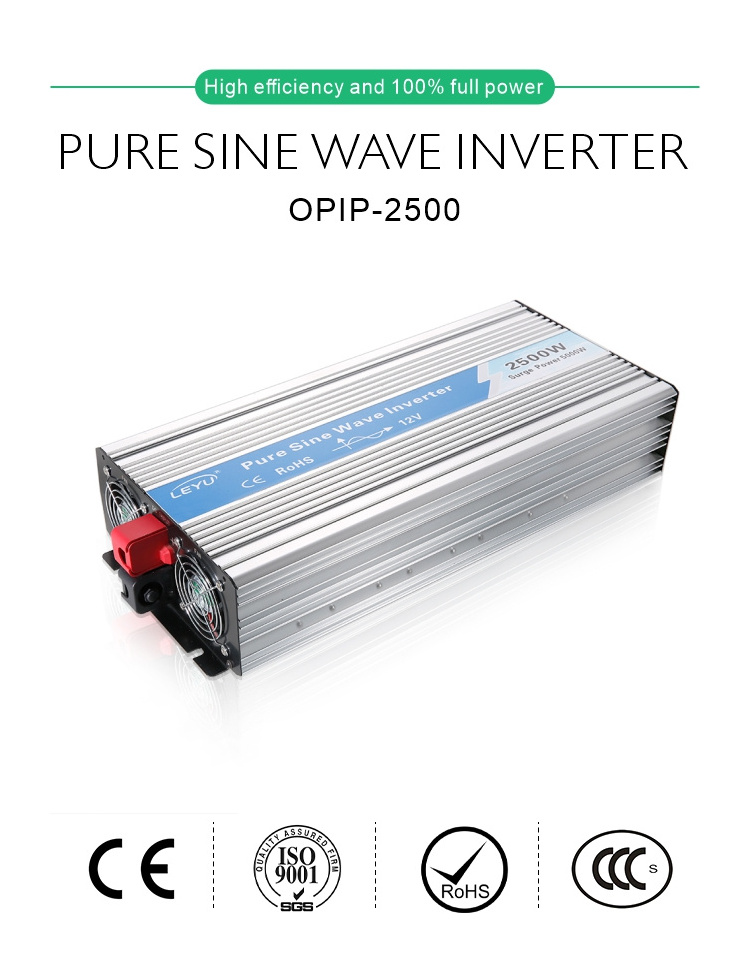

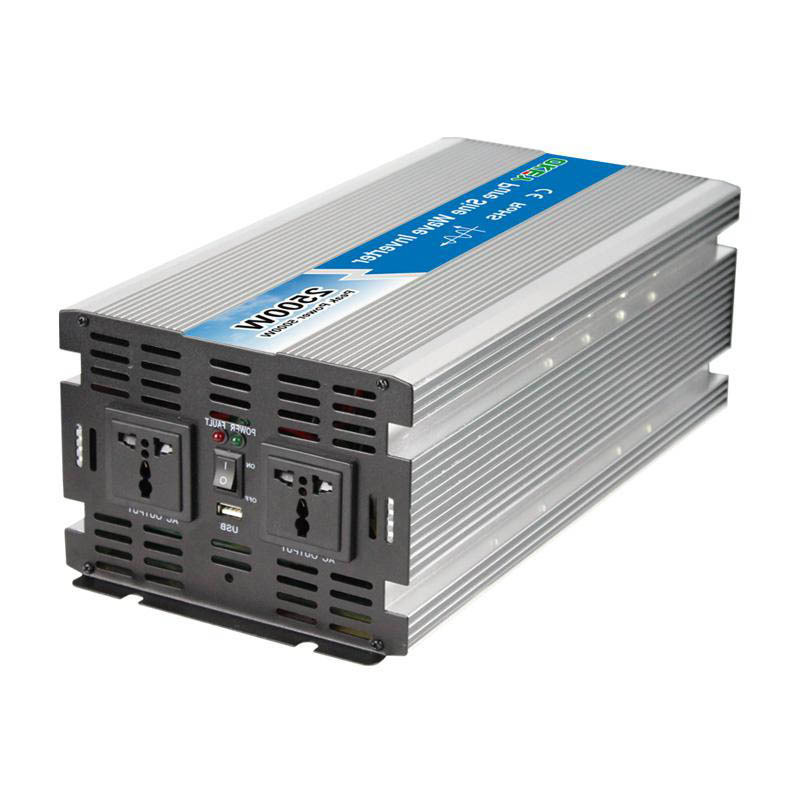

Solar Power Inverter
-
Application:
-
Solar Power System Home
-
Color:
-
Silver
-
Warranty:
-
12 Months
-
Protection:
-
Overload
-
Rated power:
-
2500W
-
Keyword:
-
2500w power inverter
Quick Details
-
Output Current:
-
1.1A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OKEY
-
Model Number:
-
OPIP-2500
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
396*180*128mm
-
Weight:
-
7KG
-
Certificate:
-
CE ROHS, CE ROHS
-
Product name:
-
Solar Power Inverter
-
Application:
-
Solar Power System Home
-
Color:
-
Silver
-
Warranty:
-
12 Months
-
Protection:
-
Overload
-
Rated power:
-
2500W
-
Keyword:
-
2500w power inverter
Product Description
Specification
|
Model
|
OPIP-2.5K-1
|
OPIP-2.5K-1
|
OPIP-2.5K-1
|
OPIP-2.5K-2
|
OPIP-2.5K-2
|
OPIP-2.5K-2
|
|||||
|
Rated power
|
2500W
|
|
|
|
|
|
|||||
|
Peak power
|
5000W
|
|
|
|
|
|
|||||
|
Input voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|||||
|
Output voltage
|
100VAC or 110VAC or 120VAC±5%
|
|
|
220VAC or 230VAC or 240VAC±5%
|
|
|
|||||
|
Unload current less than
|
1.3A
|
0.8A
|
0.6A
|
1.3A
|
0.8A
|
0.6A
|
|||||
|
Output frequency
|
50Hz±0.5Hz or 60Hz±0.5Hz
|
|
|
|
|
|
|||||
|
Output waveform
|
Pure Sine Wave
|
|
|
|
|
|
|||||
|
Waveform distortion
|
THD<3%(Linear load)
|
|
|
|
|
|
|||||
|
USB port
|
5V 1A
|
|
|
|
|
|
|||||
|
Max.efficiency
|
90%
|
|
|
|
|
|
|||||
|
Input voltage range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|||||
|
Low voltage alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|||||
|
Low voltage protection
|
10±0.5V
|
20±0.5V
|
40±15V
|
10±0.5V
|
20±0.5V
|
40±15V
|
|||||
|
Over voltage protection
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|||||
|
Low voltage recover
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|||||
|
Over voltage recover
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29.5V±0.5V
|
59V±1V
|
|||||
|

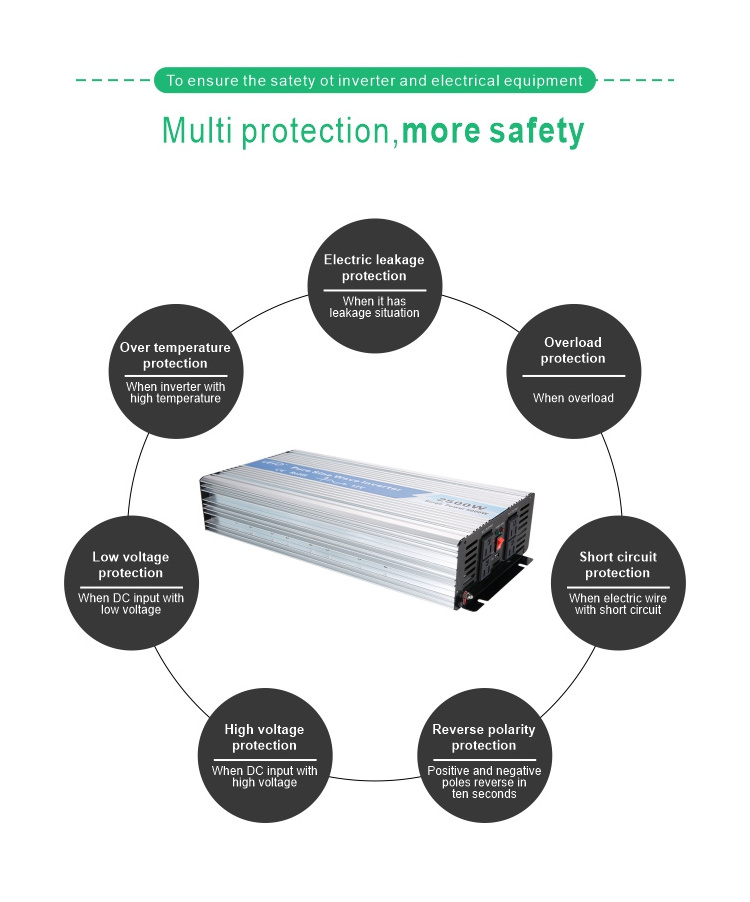

Protection function
|
Low voltage
|
|
Alarm at first, voltage continously reduce. LED Red light on & shut sown.
|
|
|
|
|||||
|
|
Over voltage
|
|
LED Red light on, shut down
|
|
|
|
|||||
|
|
Over load
|
|
LED Red light on, shut down
|
|
|
|
|||||
|
|
Over temperature
|
|
Alarm at first, tempurature continously rise.LED Red light on & shut sown
|
|
|
|
|||||
|
|
Short circuit
|
|
LED Red light on
|
|
|
|
|||||
|
|
Input reverse polarity
|
|
Fuse burn-out
|
|
|
|
|||||
|
Working temperature
|
-10°- +50°
|
|
|
|
|
|
|||||
|
Storage temperature
|
-30°- +70°
|
|
|
|
|
|
|||||
|
Dimension(mm)
|
495x215x95mm
|
|
|
|
|
|
|||||
|
Packing(mm)
|
515x262x120mm
|
|
|
|
|
|
|||||
|
Net./gross weight(g)
|
6620/7180g
|
|
|
|
|
|
|||||
|
QTY/Ctn
|
2 Pcs
|
|
|
|
|
|
|||||
|
Meas./Ctn(mm)
|
540x278x230mm
|
|
|
|
|
|
|||||
|
Gross weight/Ctn(g)
|
15200g
|
|
|
|
|
|
|||||
|
Warranty
|
1 years
|
|
|
|
|
|
|||||
|
Configuration
|
Standard
|
|
|
|
|
|
|||||
|
Cooling method
|
Intelligent air cooling
|
|
|
|
|
|
|||||
