Quick Details
-
Brand Name:
-
DOUBLE-LIN
Quick Details
-
Port Size:
-
1/2"-2"
-
Place of Origin:
-
ZHE
-
Model Number:
-
LL5082
-
Brand Name:
-
DOUBLE-LIN
Products Description
LL5082

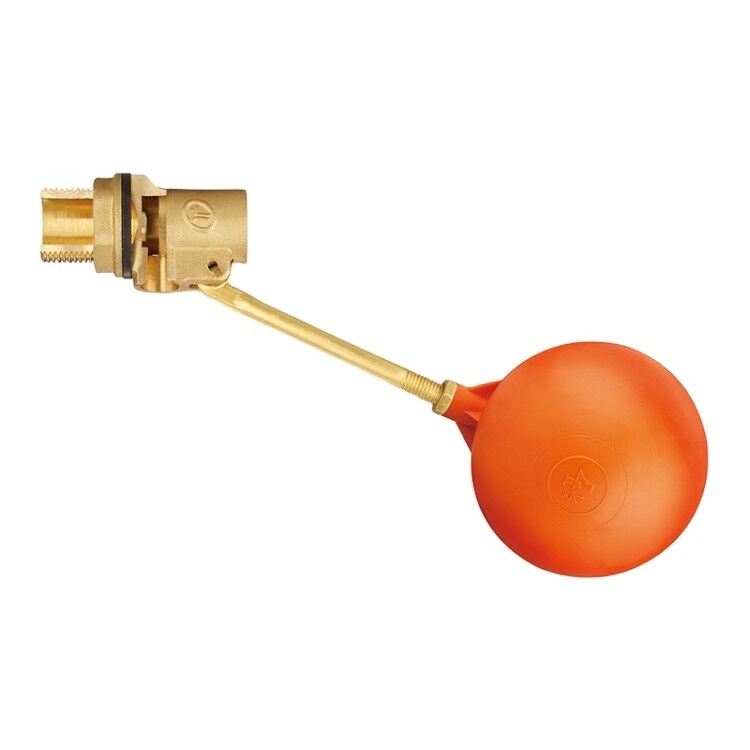

1/2 " To 2 " 16 Bar Brass Floating Valve
* Description
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
* Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Pole: Made of brass material in good quality and is quite durable.
NBR Rubber Seal: Made of imported raw material, long service life and not easy to leak.
PE Ball: No air holes, stable performance.
* Description
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
* Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Pole: Made of brass material in good quality and is quite durable.
NBR Rubber Seal: Made of imported raw material, long service life and not easy to leak.
PE Ball: No air holes, stable performance.
Details Images
|
Dimension mm
|
1/2"
|
3/4"
|
1"
|
1-1/4"
|
1-1/2"
|
2"
|
|
A
|
65
|
71
|
81.5
|
116.5
|
117.5
|
137.5
|
|
B
|
7
|
7
|
9
|
10.7
|
10.7
|
12.7
|
|
C
|
114
|
127
|
152
|
203
|
254
|
304
|
|
D
|
M8
|
M8
|
M10
|
M12
|
M12
|
M14
|
|
E
|
6
|
7
|
15
|
20
|
20
|
26
|
|
L
|
270
|
270
|
300
|
470
|
470
|
470
|
|
PN
|
16
|
16
|
16
|
16
|
16
|
16
|
|
No.
|
Part
|
Materials
|
|
1
|
Body
|
Brass
|
|
2
|
Pole
|
Brass
|
|
3
|
Rubber
|
NBR
|
|
4
|
Ball
|
PE
|
