Quick Details
-
Brand Name:
-
ANSHI
-
Use:
-
FTTx Solutions, FTTX
-
Warranty Time:
-
1 Year
-
Product name:
-
Fiber Optic Adapter
-
Insertion Loss:
-
IL<0.2dB
-
Return Loss:
-
RL>50dB
-
Color:
-
Blue
-
Storage temperature:
-
-45-85°c
-
No. of Fiber:
-
1.
Quick Details
-
Type:
-
Fiber Adapter & Connectors
-
Model Number:
-
FTTH-SC-Trans
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANSHI
-
Use:
-
FTTx Solutions, FTTX
-
Warranty Time:
-
1 Year
-
Product name:
-
Fiber Optic Adapter
-
Insertion Loss:
-
IL<0.2dB
-
Return Loss:
-
RL>50dB
-
Color:
-
Blue
-
Storage temperature:
-
-45-85°c
-
No. of Fiber:
-
1.

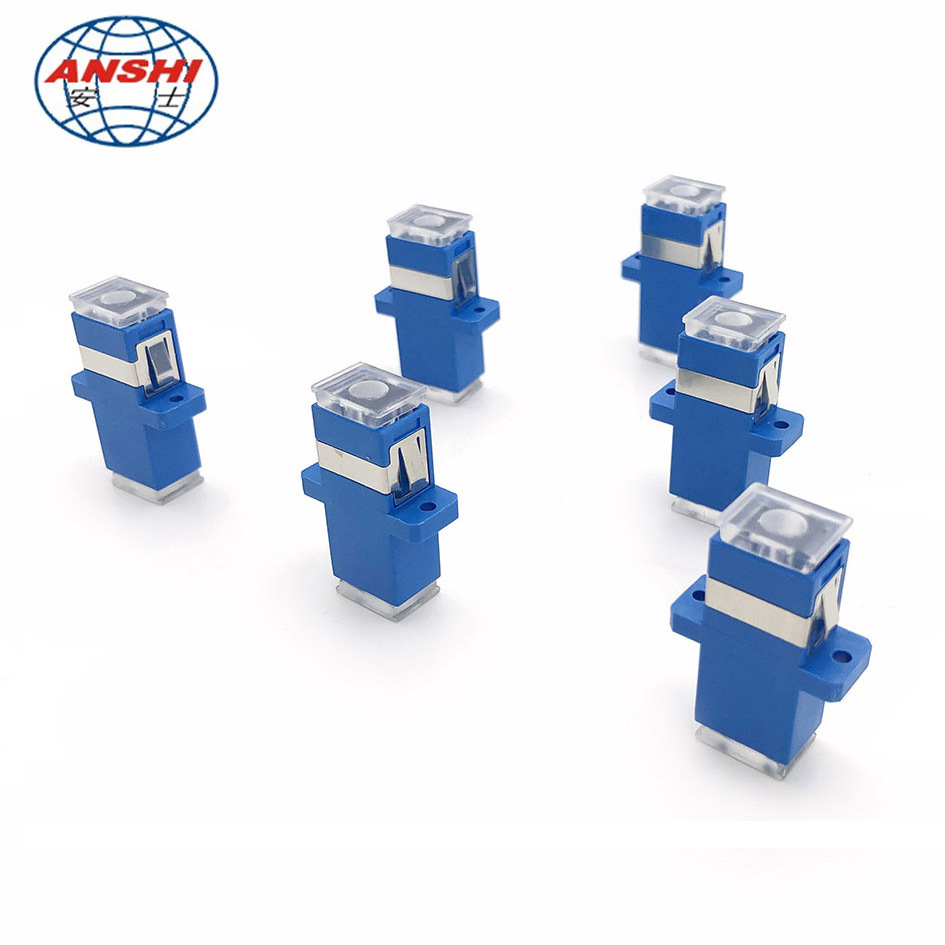

Adapter SM SC/UPC simplex with translucent dust cap
| ameter | Unit | LC, SC, FC, ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °C | -40~75 | |||
| Storage Temperature | °C | -45~85 | |||
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing
- Telcordia style boots
- Free-floating ceramic ferrule
- Zirconia sleeves or Phosphor bronze sleeves
- D-shaped easily installs into panel mount
- RoHS compliant
- Fiber Optic Telecommunications
- LAN (Local Area Network)
- FTTH (Fiber To The Home)
- CATV&CCTV System
- High speed transmission systems
- Fiber optic sensing
- Industtial, Mechanical and Military
