* 1/2.7" 5MP CMOS sensor
* 5MP HD resolution 2880*1620@25fps Smart encoding
* Ultra low illumination 0.01Lux
* 2-Exposure Line WDR upto 100dB
* Scenes switching, Day/Night (ICR), AWB, 2D/3D-DNR, Rotation 90°
* Slow Shutter, light control, White Balance, Defog
* OSD , Privacy Mask, ROI, Watermark
* Smart Intelligent Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring
* RTSP and Onvif 17.06 compatible
* Common event Motion Detection, Tampering Alarm, Audio Detection
* 265/H.264 three-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af PoE
* Lightning protection 4000V
* Strong water-proof housing, IP67
* 4PCS infrared IR Leds, IR distance:70-80M
* 2.8-12mm VF Lens
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
I755AHZ86A
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Video Resolution:
-
25fps@5MP(2880*1620)
-
IR Distance:
-
20-25 M
-
Processor:
-
Sigmaster
-
Lens:
-
2.8-12MM VF
-
WDR/HDR:
-
HDR DWDR
-
Power Supply:
-
PoE/DC12V 1A
-
Other features:
-
Micro/MicroSD Card is optional
-
Scenario:
-
Indoor/outdoor
-
Smart features:
-
Human/Vehicle/motion detection/perimeter protection
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, One-way Audio, Cross line detection, Enter/Leave area detection, intrusion detection, people flow counting, Human/Vehicle detection
-
Function:
-
Built-in Mic
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YCX/OEM
-
Model Number:
-
I755AHZ86A
-
Image Sensor:
-
1/2.8" CMOS Sensor
-
Video Resolution:
-
25fps@5MP(2880*1620)
-
IR Distance:
-
20-25 M
-
Processor:
-
Sigmaster
-
Lens:
-
2.8-12MM VF
-
WDR/HDR:
-
HDR DWDR
-
Power Supply:
-
PoE/DC12V 1A
-
Other features:
-
Micro/MicroSD Card is optional
-
Scenario:
-
Indoor/outdoor
-
Smart features:
-
Human/Vehicle/motion detection/perimeter protection

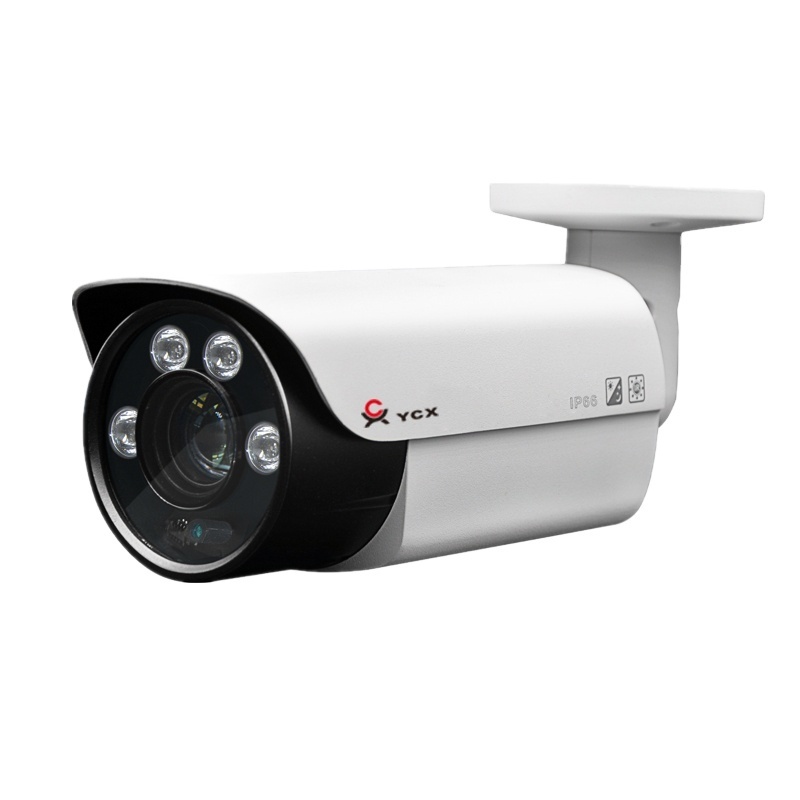

5MP Vari-focal Lens AI Bullet IP Camera,Support POE,human vehicle Detection , People Counting perimeter protection
Smart features::
* 2022 Newest Human Detection & AI Smart Functions --- This system have AI Smart Functions include Human Detection, Area
Intrusion, Line crossing, Region Entrance/Exiting, people counting. You can customize motion detection zones with AI Smart
Function and adjust motion sensibility. You will get notifications only when the human or AI smartmotion is detected, the useless
motion caused by natural will be filtered. It will greatly reduce annoying false alert
Intrusion, Line crossing, Region Entrance/Exiting, people counting. You can customize motion detection zones with AI Smart
Function and adjust motion sensibility. You will get notifications only when the human or AI smartmotion is detected, the useless
motion caused by natural will be filtered. It will greatly reduce annoying false alert
Product Description
key Features
Specification
|
Model
|
I755AHZ86A
|
|
|
Camera
|
|
|
|
Image Sensor
|
1/2.7" 5MP CMOS
|
|
|
Effective Pixels
|
2888H x 1628V
|
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
|
Min. Illumination
|
0.01Lux@F1.2(AGC ON), 0Lux IR on
|
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
|
WDR
|
2-Exposure Line WDR upto 100dB
|
|
|
White Balance
|
Auto/Manual
|
|
|
AGC/BLC/HLC
|
Support
|
|
|
DNR
|
2D/3D DNR
|
|
|
Other
|
Multi-lines OSD, Privacy Mask, ROI, Watermark, Low Shutter, Scenes
|
|
|
Encode
|
|
|
|
Video Standard
|
H.264/H.265
|
|
|
Video Resolution
|
Main Stream:
25fps@5MP(2880x1620)/4MP(2560x1440), 30fps@3MP(2304x1296)/1080P Sub stream: 30fps@720P/D1/640x360/CIF Third stream: D1, 640x360,CIF |
|
|
Video Bitrates
|
128kbps – 6144kbps, VBR/CBR
|
|
|
Audio Standard
|
G.711-u/G.711-a
|
|
|
Built-in Mic
|
Yes
|
|
|
Intelligent Detection
|
Human Detection, Vehicle Detection
Cross Line, Enter Area, Leave Area, Intrusion, People Flow Counting, Crowd Density Monitoring |
|
|
Leds and distance
|
|
|
|
Leds
|
4pcs Infrared leds
|
|
|
light distance
|
70-80 M
|
|
|
Lens
|
|
|
|
Focal length
|
2.8-12MM VF Lens
|
|
|
Optional Function
|
|
|
|
Built in Microphone optional
|
|
|
|
Network Services
|
|
|
|
Protocol
|
HTTP(s)/IPv6/TCP/UDP/RTP/RTSP/FTP/SMTP/DDNS/DHCP/PPPoE/NTP, etc.
|
|
|
P2P
|
Yes
|
|
|
Web
|
IE, Firefox, Chrome, Edge, Safari, etc.
|
|
|
Media
|
CMS, Android, IOS
|
|
|
ONVIF
|
17.06 compatible
|
|
|
General
|
|
|
|
Network Port
|
POE ,1-RJ45, 100Mbps
|
|
|
Power Supply
|
12 VDC ± 10%
|
|
|
Power Consumption
|
< 5 W
|
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
|
Connection Diagram
FAQ
Does this camera work with Hik-vision NVR ?
A: Featured with Hik0-vision private agreement, this camera can plug & play with Hik-vision NVR. -(Adding Method: Plug & Play,
Protocol: Hik-vision ).
Q: What kind of power adapter does this camera work with?
A : This 5MP Dome Camera works with PoE injector, 802.3af standard, 48V for power and video transmission. Also, 12V 1A power
adaptor is a option.
Q: What about the range of work temperature?
A: The camera could work properly range -40~60°
Q: Is there SD Card slot?
A: Yes, it accepts microSD/SDHC/SDXC cards up to 256GB
Q: Will this camera work with Da-hua or other brand NVR?
A: Sure, it could work with Da-Hua or other brand NVR with 0n-vif protocol. Our cameras are setting H.265 by default. If your NVR only support H.264. Please modify the cameras to H.264 accessing web interface to start.
A: Featured with Hik0-vision private agreement, this camera can plug & play with Hik-vision NVR. -(Adding Method: Plug & Play,
Protocol: Hik-vision ).
Q: What kind of power adapter does this camera work with?
A : This 5MP Dome Camera works with PoE injector, 802.3af standard, 48V for power and video transmission. Also, 12V 1A power
adaptor is a option.
Q: What about the range of work temperature?
A: The camera could work properly range -40~60°
Q: Is there SD Card slot?
A: Yes, it accepts microSD/SDHC/SDXC cards up to 256GB
Q: Will this camera work with Da-hua or other brand NVR?
A: Sure, it could work with Da-Hua or other brand NVR with 0n-vif protocol. Our cameras are setting H.265 by default. If your NVR only support H.264. Please modify the cameras to H.264 accessing web interface to start.
Q: Can the camera zoom from the app?
A: This Bullet camera features 3.6mm lens by default, could not zoom in/out.
Q: Does this camera record video with voice?
A: Yes, this camera built-in internal Microphone!
Q: Does this camera can activate record on & off whem motion is detected?
A: Of course, besides the motion detection, this camera could filter false alarm messages.It can focus on human/vehicle targets, only send you a message only when humans and vehicles are detected.
Q: Why does the nvr not show image after adding your ip camera?
A: Please make sure your nvr supports H.265 video compression and 5MP resolution, if your NVR only supports h.264 please switch the camera to h.264 mode on webpage; set lower resolution of the camera if you NVRs are not compatible to decode 5mp resolution.
Q: Is this camera compatible with Google Chrome web browser?
A: Sure, this camera is compatible with Google Chrome, IE, firefox, Microsoft edge,safari
Q: Can I use this camera with my NAS ?
A: Yes, our IP Camera can work with Milestone, Synology NSA, Qnap NAS, Ispy
