Quick Details
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
81 cm³
-
Injection Rate (g/s):
-
75.5 g/s
-
Injection Weight (g):
-
78 g
-
Screw Speed (rpm):
-
1 - 205 rpm
-
Screw diameter (mm):
-
30 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
375*205mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
180 mm
-
Model Number:
-
CY-350ST-PP
-
Brand Name:
-
ZanYang
-
Power (kW):
-
3.75 kW
-
Opening Stroke:
-
180mm
-
Clamping Force (kN):
-
350 kN
-
Injection Weight:
-
78g
-
Machine weight:
-
1.15Tons
-
Ejector Stroke:
-
35mm
-
Ejector force:
-
1.3Tons
-
Pump motor power:
-
3.75kw/5.5HP
-
Min. mold height:
-
258/58mm
-
Injection Rate:
-
115
-
Power(KW):
-
6.3KW
Quick Details
-
Plasticizing Capacity(g/s):
-
59
-
Mold Height(mm):
-
58 - 258 mm
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
81 cm³
-
Injection Rate (g/s):
-
75.5 g/s
-
Injection Weight (g):
-
78 g
-
Screw Speed (rpm):
-
1 - 205 rpm
-
Screw diameter (mm):
-
30 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
375*205mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
180 mm
-
Model Number:
-
CY-350ST-PP
-
Brand Name:
-
ZanYang
-
Power (kW):
-
3.75 kW
-
Opening Stroke:
-
180mm
-
Clamping Force (kN):
-
350 kN
-
Injection Weight:
-
78g
-
Machine weight:
-
1.15Tons
-
Ejector Stroke:
-
35mm
-
Ejector force:
-
1.3Tons
-
Pump motor power:
-
3.75kw/5.5HP
-
Min. mold height:
-
258/58mm
-
Injection Rate:
-
115
-
Power(KW):
-
6.3KW

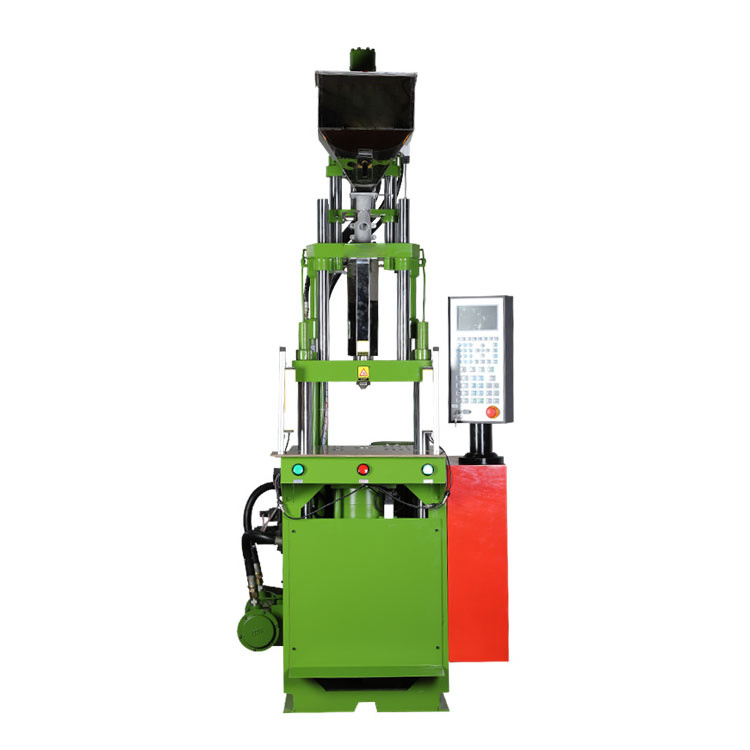

1. Verical opening and closing mpold and inline screw ijcion for esysina and injection molding.
2. Multi section PID temperature control of material pipe, stepless speed regulation of feeding, stable forming.
3. Screen industrial control computer, simple operation, precise control and low failure.
4. Four column type with pedestal lifting, more stable large mold, more stable product quality.
5. It can be equipped with manipulator and automatic feeding device to realize unmanned automatic production.
It is easy to fix die.
| MODEL | UNIT | CY-350ST-PP | |||
| INJECTION UNIT | Screw Diameter | mm | 26 | 28 | 30 |
| lnjection Pressure | kg/cm² | 1410 | 1220 | 1060 | |
| Theoretical Shot Volume | cm³ | 61 | 70.8 | 81 | |
| Max.Shot Weight(Ps) | g | 56 | 65 | 74 | |
| Safe Shot Weight(Ps) | oz | 2.0 | 2.3 | 2.6 | |
| Injection Rate | cm³/sec | 55 | 63 | 73 | |
| screw stroke | mm | 115 | |||
| screw Speed Max. | rpm | 0-205 | |||
| Nozzle Comtact Force | tons | 4.45 | |||
| Nozzle Retraction Stroke | mm | 170 | |||
| Number of Temperature Control | 3 | ||||
| CLAMPING UNIT | Clamping Force |
tons
KN |
35
350 |
||
| Platen Size | mm | 540×380 | |||
| Distance Between Tie Bere | mm | 375×205 | |||
| Min.Mold Height | mm | 158/58 | |||
| pening Stroke | mm | 180 | |||
| Max.Open daylight | mm | 338/238 | |||
| Ejetor Force | tons | 1.3 | |||
| Ejetor Stroke | mm | 35 | |||
| POWER/HEADING UNIT | Max.Hydaulic Pressure | kg/cm² | 140 | ||
| Pump output | l/min | 34.5 | |||
| Oil Resservoir Capacity | l | 100 | |||
| Cooling waer Consumption | l/hr | 400~600 | |||
| Pump Motor Power | kW/HP | 3.7/5HP | |||
| BerrelHeating Power | kW | 2.4 | |||
| Total electricity usage | kW | 6.3 | |||
| OTHER | Machine Weight | tons | 1.05 | ||
| Machine Dimensions(LxWxH) | m | 1.35x 1 x2.25 | |||
| Shipping weight | tons | 1.15 | |||
| Shipping Measurements(LxWxH) | m | 1.45×1.15× 2.35 | |||
Q1:Are you a trading company or a manufactory?
A1 :We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2 :We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3 :We will deliver the machines on time as the date we agreed both side.
