5m Steel Wire Rope Retractable Fall Arrester

5m Steel Wire Rope Retractable Fall Arrester

Item No.	GJ Series
Features	- Main Cable: Galvanized steel wire rope - Shell Material: Aluminum alloy - Cable Diameter: 4mm - Max. Load 150Kg - Self Weight: 3-20Kg
Performance	Locking speed: 1.0 m/s
Compliance Standard	GB2454-2009 << TEST METHOD FOR PERSONAL FALL PROTECTION SYSTEMS>>
MOQ	1 unit
Warranty	1 Year
Payment	L/C, T/T, Western Union
Packing Details	Iron Pack
Diagrammatic Drawing

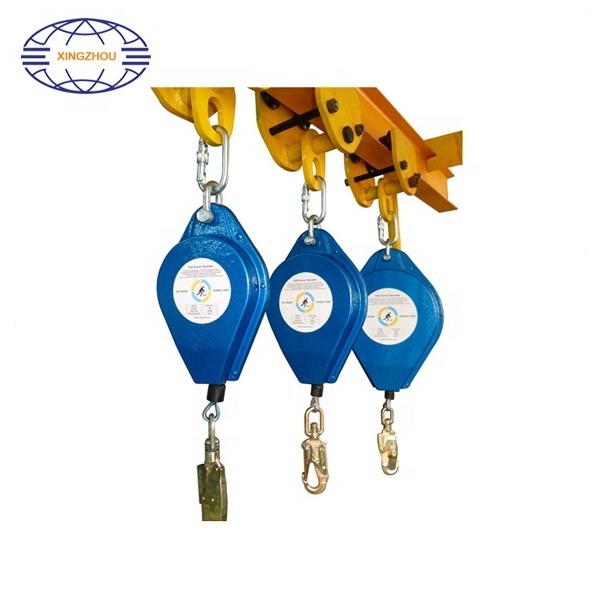

The GJ Series Retractable Fall Arrester is designed to restrain the person from vertical falls while allowing them freedom of movement. It also can be called fall arrester. The retracting feature eliminates tripping hazards while the inertia-locking mechanism arrests a fall within inches of activation.

The retractor connects to the fixed sling of the person which is parallel to the hook of the crane and must be attached to an approved point which can be endured 23KN.

Fall Arrester is made of sealed aluminum Jacket or Plastic shell, automatically controlled by the changed speed. It is an innovative engineering solution to arrest falls by two-disc anti-ratchet braking system. A f a l l a rr e s t system i s a pe r s ona l f a l l p r o t e c t i o n s y s t e m tha t a rr e s ts a f r e e f a l l a n d whi c h li m it s th e i m pa c t f o r c e on t h e b o d y of the u s er or goods du r i ng f all a rr e s t.

In the event of a fall, the retractor will lock and suspend the person until either self-rescue or outside assistance becomes available.

Although cable retractors are designed to provide years of trouble free service the type of atmosphere they are used in, or prolonged cable exposure to the sun or moisture may impact the overall service life. For example, use near chemical or paint sprays or failure to allow cable to retract when not in use will reduce the cable's life.

Immediately remove the cable retractor from service and discard if it has been used to arrest a free fall.

Immediately remove the retractor from service and inspection if the device has failed a visual inspection for any reason.

Always store in a cool dry place, always from chemical, water, direct sun light and sources of heat and vibration.

Always ensure cable section is completely retracted before storage.

It is especially important when retractors are left in place outside as components of a permanent fall protection system.
