Quick Details
-
Power:
-
11kw, motor or diesel engine
-
Dimension(L*W*H):
-
1400*600*750mm
-
Weight (KG):
-
200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
wood grinding machine
-
Raw material:
-
log,branch,timber,tree
-
Motor:
-
copper coil
-
Price:
-
reasonable
-
Final size:
-
3-5mm
-
Design:
-
suitable
-
Capacity:
-
big
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
380V, 220/240/380/415
-
Power:
-
11kw, motor or diesel engine
-
Dimension(L*W*H):
-
1400*600*750mm
-
Weight (KG):
-
200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
wood grinding machine
-
Raw material:
-
log,branch,timber,tree
-
Motor:
-
copper coil
-
Price:
-
reasonable
-
Final size:
-
3-5mm
-
Design:
-
suitable
-
Capacity:
-
big

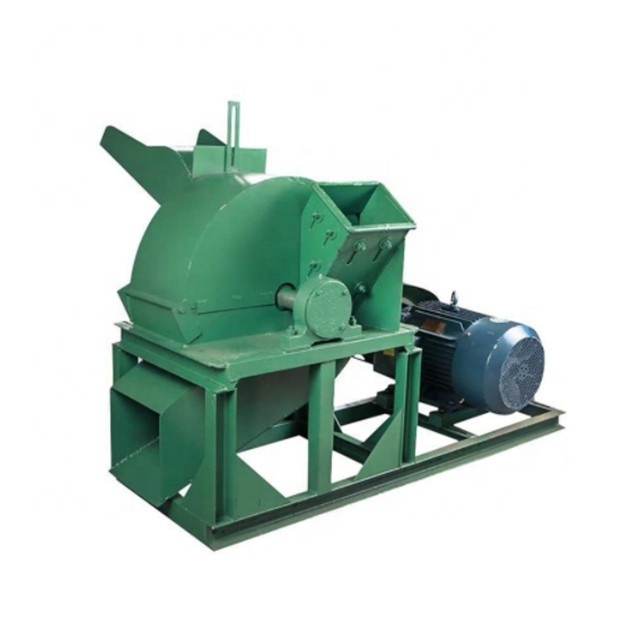

Blade Hammer Wood sawdust crusher Shaving making machine grinding production chips maker pulverizer machine for charcoal pellets
The final products for our machine can be sawdust,shavings or chips,we can recommend suitable wood machine for you according the final products you need.
Working principle of wood grinding machine:
1) The wood crusher machine is composed of machine body, knife chipping part; chips recrush part and sieving part.
2) It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for preprocessing of wood logs.
3) To ensure security, the feed inlet of this crushing equipment adopts selfsuction design to avoid serious damage to operators.
Parameters of wood grinding machine :
|
Model |
Machine size(mm) |
Feeding size (mm) |
Blade (pcs) |
Motor Power(KW) |
Capacity (t/h) |
|
YW-420 |
1400*600*750 |
180*150 |
4 |
11 |
0.6 |
|
YW-500 |
1500*650*850 |
200*180 |
4 |
15 |
0.8-1.2 |
|
YW-600 |
1500*700*1000 |
230*210 |
4 |
18.5 |
1.2-1.8 |
|
YW-700 |
1550*750*1050 |
240*240 |
6 |
22 |
2 |
|
YW-800 |
1600*800*1100 |
260*260 |
6 |
30 |
2.5 |
|
YW-1000 |
2000*1100*1300 |
300*300 |
8 |
37 |
3 |
In order to give you the quotaiton in time ,could you tell me the following questions in your inquiry
1 what is the raw material ?
2 what is the max feed size ?
3 what is the output size ?
4 which industry do you want to use the final product ?
