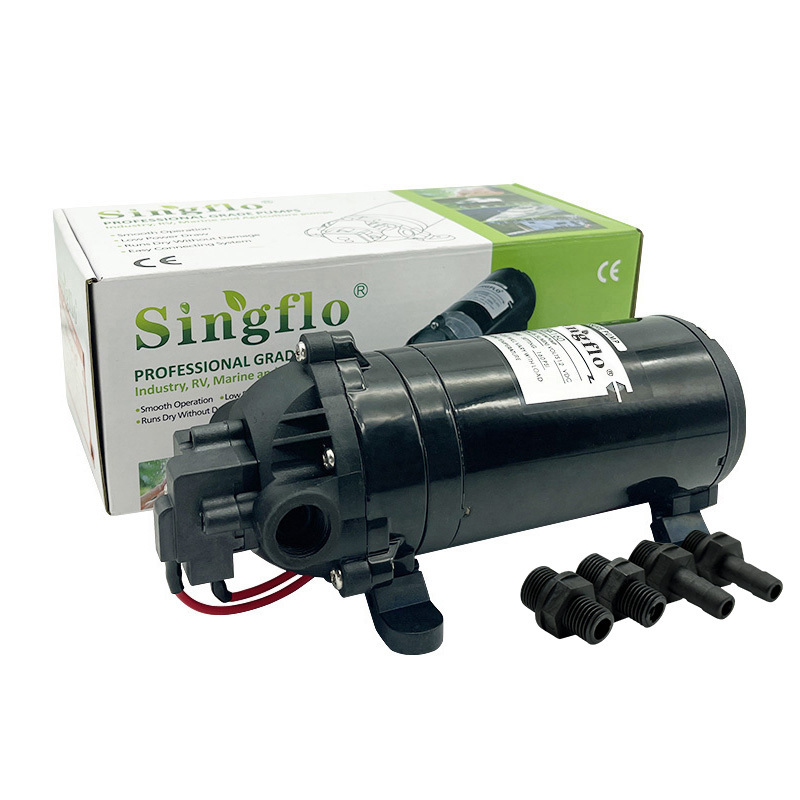

Singflo high pressure 160psi diaphragm pumps 12 volt car washer water pump

Singflo high pressure 160psi diaphragm pumps 12 volt car washer water pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $38

≥50 Sets

US $36

≥500 Sets

US $33

≥1000 Sets

US $29

Free Inquiry

Customized Request

Explore More Products

High pressure multi stage water pump commercial pressure washer pump

$ 192.4 - $ 204.46

Factory Electric Motor Pumps Peripheral Vortex Pompa Houseuse Pressure Water Pump

$ 80 - $ 90

High efficiency 50 meter head water pumps 4kw 5.5hp high head submersible pump

$ 190 - $ 200

high pressure head electric portable water pump

$ 220 - $ 260

1hp 220V 21m High Head Household Stainless Steel Hot Cold Water Circulating Pumps Hot water circulating pump

$ 190 - $ 200

3hp high pressure 40m head electric portable water pump

$ 220 - $ 260

High Lift Multi-Stage Pump QD su high water pressure borehole agricultural water sewage diesel water dispenser pump pompa pompe

$ 45 - $ 60

Multistage High Pressure Monoblock Horizontal Pressure Centrifuge Water Booster Pump System For Shower

$ 190 - $ 200

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years

Brand Name:: Singflo

Model Number:: DP-160

Place of Origin:: Fujian, China

Horsepower:: 126w

Outlet Size:: 3/8''hose barb, 1/4''thread

Power:: 126w

motor:: electric,brush

Flow:: 5.5 L/Min

Duty Cycle:: working intermittent

Liquid Temperature:: 0-60 centigrade

Diaphragm material:: santoprene

Body Material:: Cast Iron

Pump Design:: Pump Design

Fuel:: Electric Power

Keyword:: Car Wash Machine Fully Automatic

Quick Details

Application:: Irrigation and Agriculture, Marine, Washing and Cleaning

Pressure:: High Pressure

Voltage:: 12v, 24v/115v/220v is available, 12v dc

Warranty:: 1 years

Brand Name:: Singflo

Model Number:: DP-160

Place of Origin:: Fujian, China

Horsepower:: 126w

Outlet Size:: 3/8''hose barb, 1/4''thread

Power:: 126w

motor:: electric,brush

Flow:: 5.5 L/Min

Duty Cycle:: working intermittent

Liquid Temperature:: 0-60 centigrade

Diaphragm material:: santoprene

Body Material:: Cast Iron

Pump Design:: Pump Design

Fuel:: Electric Power

Keyword:: Car Wash Machine Fully Automatic

Application

√ Water purification,filter machine,chemical metering and fluid supply.

√ High pressure pumps used in sprayers and spray fixtures for high plants.

√ Food,beverage filling and liquid transfer.

√ Can be used for washing car and conditioner.

Products Description

Feature:

Type: 3 Chamber Diaphragm

Port Size: 3/8" Female Thread

Liquid: 140°F [60 °C] Max Self-priming: 6.5feet [about2M] Max pressure： 170psi Run Dry: Yes (within 30 second) Motor: Permanent Magnet, Intermittent Duty Protection: Automatic Restart Volts: 12V/24V DC/ 220v ac motors standard Approved Certificate: CE and RoHS

AC pump is available with speed controller

which is adjustable flow rate from 1 to 5.5LPM.

Model	Volt	Flow(L/Min)	Pressure(PSI)	Amp Draw(A)
DP-60	12	4.6	60	7
DP-60B	24	4.5	60	4
DP-80	12	5.5	80	8
DP-100	12	5.5	100	9
DP-120	12	5.5	120	9.5
DP-120B	24	5.3	120	4.5
DP-160	12	5.5	160	10.5
DP-160B	24	5.5	160	4.2
DP-100M	230	5.5	100	0.6
DP-160S	120	5.5	160	1
DP-120M	220	5.5	120	0.5
DP-160M	220	5.5	160	0.55

Features

✓ Upgrade Pressure Switch

✓ Long life, no leak, quiet operation
✓ Positive displacement pump
✓ Industry standard mount pattern
✓ Built thermal protector
✓ Self priming, fully automatic, easy installation
✓ Special valve for liquid input and output
✓ 12v,24vDC and 120v,230v AC motors standard (consult factory for other voltages)
✓ Numerous fittings options for greater mounting flexibility

Dimension & Explosive View
