Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate
Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate

Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
≥2 Sets
US $17500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Screw Speed (rpm):
38 rpm
Place of Origin:
Shandong, China
Brand Name:
Hanhai
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Power (kW):
80
Weight:
20000 KG
Name:
HDPE PP PPR Tube Making Machine With CE Certificate
Inverter:
ABB
Temperature Controller:
Omron
Motor:
SIEMENS
Automatic Grade:
Automatic
Material:
38CrMoAlA
After Warranty Service:
Spare parts
Usage:
produce HDPE PP PPR pipes
After-sales Service Provided:
Engineers available to service machinery overseas
Features:
Competitive price/Long service life/High-accuracy

Quick Details

Screw Design:
Single-screw
Screw L/D Ratio:
33:1
Screw diameter (mm):
75 mm
Screw Speed (rpm):
38 rpm
Place of Origin:
Shandong, China
Brand Name:
Hanhai
Voltage:
380V 50HZ 3Phase(Customized)
Dimension(L*W*H):
20mx2.5mx2.2m
Power (kW):
80
Weight:
20000 KG
Name:
HDPE PP PPR Tube Making Machine With CE Certificate
Inverter:
ABB
Temperature Controller:
Omron
Motor:
SIEMENS
Automatic Grade:
Automatic
Material:
38CrMoAlA
After Warranty Service:
Spare parts
Usage:
produce HDPE PP PPR pipes
After-sales Service Provided:
Engineers available to service machinery overseas
Features:
Competitive price/Long service life/High-accuracy
Product Description

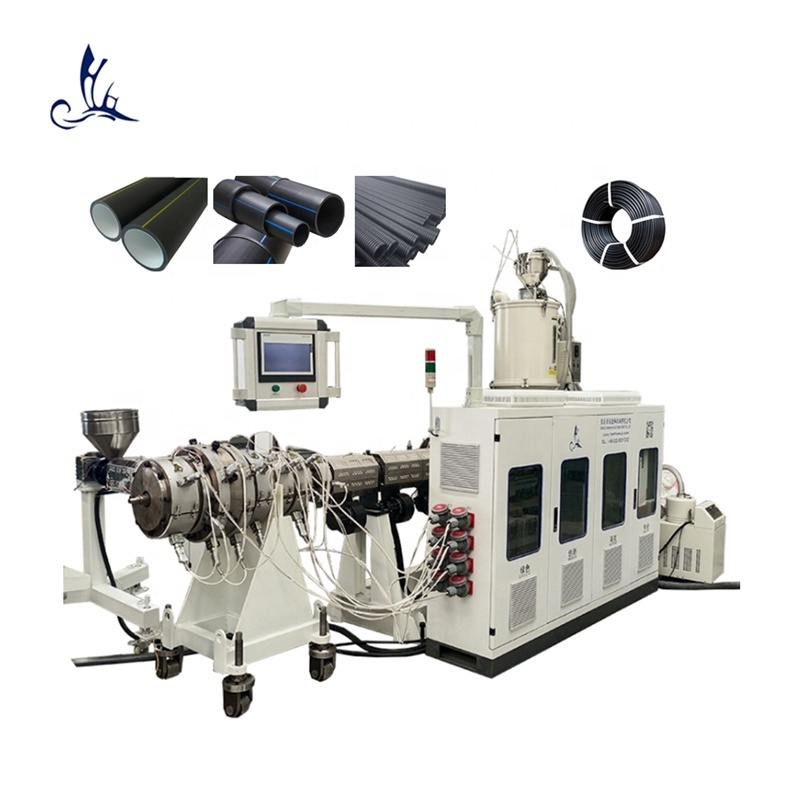

Plastic Pipe Extrusion Production Line HDPE PP PPR Tube Making Machine With CE Certificate

This HDPE Water And GasTube PE Pipe Making Machine developed by Hanhai company is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance. It consists of the following seven parts:
NO.
Name
Quantity
1
Single screw extruder (with automatic feeding system)
1set
2
Mould
1set
3
Vacuum calibrating tank
1set
4
Water cooling tank
1set
5
Haul-off machine
1set
6
Cutting machine
1set
7
Bracket
1set
Pipe produced by our machine has the moderate rigidity&strength, good flexibility, creep resistant,environmental stress crack resistance and favorable hot melting property.
Extruder Model
Pipe Diameter
(mm)
Production Capacity
(kg/h)
Total Power
(kw/h)
SJ50
16~63
100~150
75
SJ65
75~160
300~350
160
SJ75
200~400
600~700
280
SJ90
450~630
800~850
350
SJ120
710~1200
1200~1300
700
SJ150
1200~2000
1400~1500
1000
Detailed Images
1. HDPE Water And Gas Tube PE Pipe Making Machine: Single screw extruder
(with automatic feeding system)
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider (6) Heating method: C ast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
2. HDPE Water And Gas Tube PE Pipe Making Machine: Mold
(1) Material: 40GR
(2) Size: Customized
3. HDPE Water And Gas Tube PE Pipe Making Machine: Vacuum calibrating tank
(1) Vacuum pump power : 5.5 kw
(2) M aterial: Stainless steel
(3) Diameter: Customized
(4) Length: 6 m
4. HDPE Water And GasTube PE Pipe Making Machine: Water cooling tank
(1) Water pump power: 4 kw
(2) Material: Stainless steel
(3) Method: Enforced spraying
(4) Length of tank: 6 m
5. HDPE Water And GasTube PE Pipe Making Machine: Haul-off machine
(1) Driving motor power: 2.2 kw (2) Transducer: Siemens transducer (3) hauling track type：110 plastic block (4) Pressing method: Pneumatic pressing
(5) Effective clamping length:1800 mm
6. HDPE Water And GasTube PE Pipe Making Machine: Cutting machine
(1) Motor power: 3 kw
(2) Method: Saw cutting (3) Cutting scope: Customized
(4) PLC control system, u sing meter counter or sensor switch for the setting of desired length.
7. HDPE Water And GasTube PE Pipe Making Machine: Bracket
(1) Length: 12 m
(2) Material: Stainless steel
(3) Unloading method: Pneumatic unloading
Final products
You just tell me what machine you want，let us do the rest work:
1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
Reviews by customers
Certificates
FAQ
1.Are you manufacturer or trading company? We are manufacturer. 2.Why choose us? We have 20 years experience for producing machine.We can arrange for you to visit our local customer's factory. 3.Delivery time: 30 days. 4.Payment terms: 30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C（at sight). 5.After-sales service: Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;    Video/Online technical support. 6.Warranty: 1 year.
