Quick Details
-
Brand Name:
-
Fucheng hydraulic
-
Place of Origin:
-
Shandong, China
-
Pressure:
-
high pressure, High Pressure
-
Structure:
-
gear pump
-
Weight:
-
32
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Application:
-
Machinery
-
Material:
-
Cast Iron
-
Product name:
-
Hydraulic Pump
-
Standard or Nonstandard:
-
Standanrd
-
Color:
-
Black
-
Condition:
-
New
-
Type:
-
hydraulic pumps
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
1 Year
-
Displacement:
-
Other
-
Pump Type:
-
Gear Pump
-
Brand Name:
-
Fucheng hydraulic
-
Place of Origin:
-
Shandong, China
-
Pressure:
-
high pressure, High Pressure
-
Structure:
-
gear pump
-
Weight:
-
32
-
Power:
-
standard
-
Dimension(L*W*H):
-
standard
-
Application:
-
Machinery
-
Material:
-
Cast Iron
-
Product name:
-
Hydraulic Pump
-
Standard or Nonstandard:
-
Standanrd
-
Color:
-
Black
-
Condition:
-
New
-
Type:
-
hydraulic pumps
-
Certification:
-
ISO9001
Product Description
Our dump body pump/valve products deliver the right flow range for most applications at 1800 rpm/2000 psi. Models with two shafts (C101/G101) can be mounted to remote PTO's operating in either direction of rotation.
Single shaft units (C102/G102) mount directly to the vehicle drive train. All can be connected in two- or three-line circuits to control single-acting cylinders. All units are supplied with factory-set 2000 psi relief valves.
Single shaft units (C102/G102) mount directly to the vehicle drive train. All can be connected in two- or three-line circuits to control single-acting cylinders. All units are supplied with factory-set 2000 psi relief valves.
• Offering high performance and high endurance due to its cast iron construction.
• All cast iron 3 piece construction fully rebuildable
• High pressure shaft seals(Taiwan brand)
• Direct acting relief c/w load check
• Pressure balance thrust plates
• Heavy-duty roller bearings provides long lasting service even in the roughest of dump applications(USA brand)
• Two or three line hook-up( U can choose by yourself)
• Factory set rotation(Left rotation in usual, u should let me know the rotation once u confirm the order)
• Manual Cab Control and Optional airshift control
• Factory set relief pressure @2000 psi and 2500psi
• Optional mounting bracket for C101( if u also need Bracket for C101 and G101, we also can provide to u)
• Dowelled for higher pressure with Relief Valve.
• Pump and cylinder protected in the “Raise” & “Neutral” position of the valve spool.
• 100% factory tested.
• All cast iron 3 piece construction fully rebuildable
• High pressure shaft seals(Taiwan brand)
• Direct acting relief c/w load check
• Pressure balance thrust plates
• Heavy-duty roller bearings provides long lasting service even in the roughest of dump applications(USA brand)
• Two or three line hook-up( U can choose by yourself)
• Factory set rotation(Left rotation in usual, u should let me know the rotation once u confirm the order)
• Manual Cab Control and Optional airshift control
• Factory set relief pressure @2000 psi and 2500psi
• Optional mounting bracket for C101( if u also need Bracket for C101 and G101, we also can provide to u)
• Dowelled for higher pressure with Relief Valve.
• Pump and cylinder protected in the “Raise” & “Neutral” position of the valve spool.
• 100% factory tested.
Detailed Images
Size Information

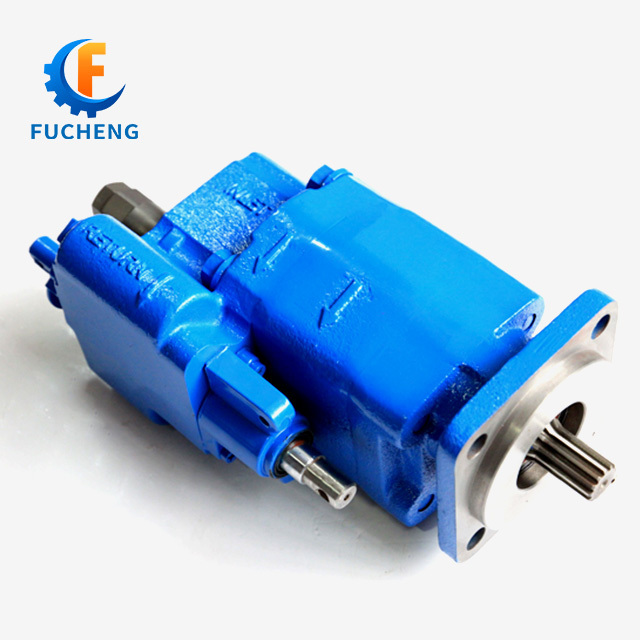

G101 / G102 rugged cast iron combination gear pump / valve assemblies for the medium size dump and trailer applications. Units are available for SAE-B PTO mounting (G102) or remote drive shaft mounting (G101). Units are supplied with a full flow adjustable main relief valve to protect the pump and cylinder from over pressure and shock loads. A three position valve assembly controls the raising and lowering of a single acting cylinder, The pump / valve comes standard as manually operated & can be actuated by a cable control. The Pump/Valve can also be equipped with an air shift kit for actuation by air pressure. Installation can be either 2 line or 3 line configuration using the sleeve supplied .
|
Model
|
Gear Width
|
Rotation
|
Operation style
|
Line No
|
Relief Valve Setting
|
|
G101
|
0.75
|
L: CW Rotaion
R: CCW Rotation
|
MS: Manual
AS: Airshift
|
2: Line installation
3: Line installation
|
20: 37bar(2000psi)
25: 72bar(2500psi)
|
|
G102
|
1.5
|
|
|
|
|
|
C101
|
2.0
|
|
|
|
|
|
C102
|
2.5
|
|
|
|
|
