Quick Details
-
Lamp Body Material:
-
plastic optical fiber
-
Product Weight（kg）:
-
1.5
-
CRI (Ra>):
-
50
-
Working Temperature(℃):
-
-40~70
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TXPOF
-
Model Number:
-
TX-FL-0250-1
-
Fiber material:
-
PMMA
-
Cladding:
-
Fluororesin
-
Fiber diameter:
-
0.75mm*3
-
Available Brand:
-
Mitsubishi/Toray/Asahi Kasel/Domestic
-
Application:
-
Lighting Decoration
-
Attenuation:
-
Lower 240db/km
-
Color:
-
RGB
-
Advantage:
-
Durable and Insulating
-
Certificates:
-
UL/REACH/ROSH/CE/7S/ISO19001
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Lamp Luminous Efficiency(lm/w):
-
45
-
Warranty(Year):
-
2-Year
-
Lamp Body Material:
-
plastic optical fiber
-
Product Weight（kg）:
-
1.5
-
CRI (Ra>):
-
50
-
Working Temperature(℃):
-
-40~70
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TXPOF
-
Model Number:
-
TX-FL-0250-1
-
Fiber material:
-
PMMA
-
Cladding:
-
Fluororesin
-
Fiber diameter:
-
0.75mm*3
-
Available Brand:
-
Mitsubishi/Toray/Asahi Kasel/Domestic
-
Application:
-
Lighting Decoration
-
Attenuation:
-
Lower 240db/km
-
Color:
-
RGB
-
Advantage:
-
Durable and Insulating
-
Certificates:
-
UL/REACH/ROSH/CE/7S/ISO19001
Product Description
Side Pointed Emitting Optical Fiber consists of PMMA fiber core and fluororesin cladding. Fiber diameter ranges from 0.25mm to 3.0mm, with strong side glow performance, Sparkle Fiber are widely used for decorative lighting.
|
Product Name:
|
Sparkle Plastic Optical Fiber
|
|
Core Material:
|
PMMA
|
|
Cladding:
|
Fluororesin
|
|
Optical Configuation:
|
Step Type
|
|
Core Index:
|
1.49
|
|
Working Temperature:
|
-50~+70℃
|
|
Numerical Aperture:
|
0.5
|
Features:
* Optical fiber safety, itself is not charged, not afraid of water, can suite many environment;
* Optical fiber small size, soft and flexible, easy to create and make whatever you want shape;
* Optical fiber long life, low maintenance workload;

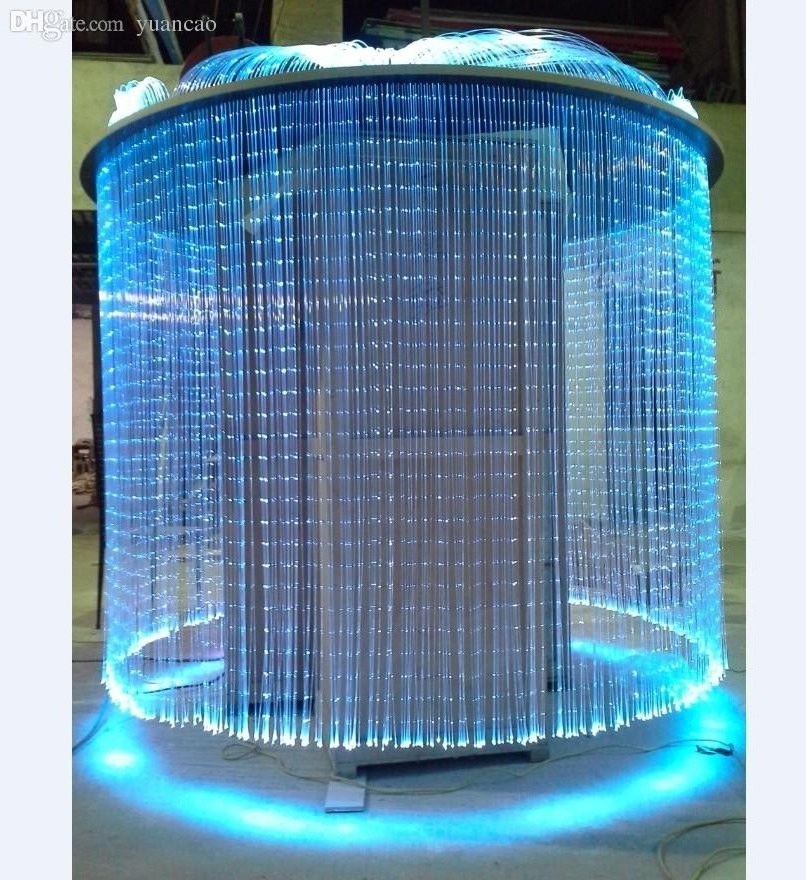

* Optical fiber bright colors and beat rhythm, widely used to make curtain, screen, ceiling sky decoration.
* Optic fiber light is a night lighting ideal light source, by using the theory of total reflection, light transmission through optical fiber to people need light anywhere for lighting;
* Optical fiber safety, itself is not charged, not afraid of water, can suite many environment;
* Optical fiber small size, soft and flexible, easy to create and make whatever you want shape;
* Optical fiber long life, low maintenance workload;
* Optical fiber bright colors and beat rhythm, widely used to make curtain, screen, ceiling sky decoration.
Specifications
|
Item
|
Fiber Material
|
Number of Cores
|
Fiber OD (mm)
|
Reel Length (M)
|
Attenuation
|
Emitting Method
|
|
TX-FL0250-1
|
PMMA
|
1
|
0.25
|
12,000
|
≤350
|
Side Glow
|
|
TX-FL0500-1
|
PMMA
|
1
|
0.5
|
6,000
|
≤200
|
Side Glow
|
|
TX-FL-0750-1
|
PMMA
|
1
|
0.75
|
2,700
|
≤200
|
Side Glow
|
|
TX-FL1000-1
|
PMMA
|
1
|
1
|
1, 500
|
≤200
|
Side Glow
|
|
TX-FL1200-1
|
PMMA
|
1
|
1.2
|
1, 000
|
≤200
|
Side Glow
|
|
TX-FL1500-1
|
PMMA
|
1
|
1.5
|
700
|
≤200
|
Side Glow
|
|
TX-FL2000-1
|
PMMA
|
1
|
2.0
|
350
|
≤200
|
Side Glow
|
|
TX-FL2500-1
|
PMMA
|
1
|
2.5
|
200
|
≤200
|
Side Glow
|
|
TX-FL3000-1
|
PMMA
|
1
|
3.0
|
150
|
≤200
|
Side Glow
|
|
TX-FL0750-3
|
PMMA
|
3
|
3.0±0.2
|
900
|
≤250
|
Side Glow
|
|
TX-FL1000-3
|
PMMA
|
3
|
3.8±0.2
|
500
|
≤250
|
Side Glow
|
Application
Company Introduction
Jiangsu TX Plastic Optical Fibers Co.,Ltd was founded in 2011, it is a professional high-tech manufacturer of plastic optical cable and specialized in research development. The headquarter is located in famous historical city—Zhenjiang, Jiangsu Province, China, the branch offices are set up in Shenzhen, Beijing, Shanghai and other big cities. We have an excellent, experienced, hard-working perfect top R & D team who have been engaged in POF field for long time. We take "the demand expectation of customer" as our main principles, take "high-quality as our priority, technology development, customer first, excellence" as our service goals, take "to be honest hard-working person" as our behave standard.
