Quick Details
-
Brand Name:
-
Baode
-
Liquid Flow Rate:
-
--
-
Maximum Working Pressure:
-
4.5Mpa
-
Weight:
-
1 KG
-
Dimension(L*W*H):
-
---
-
After-sales Service Provided:
-
Overseas service center available
-

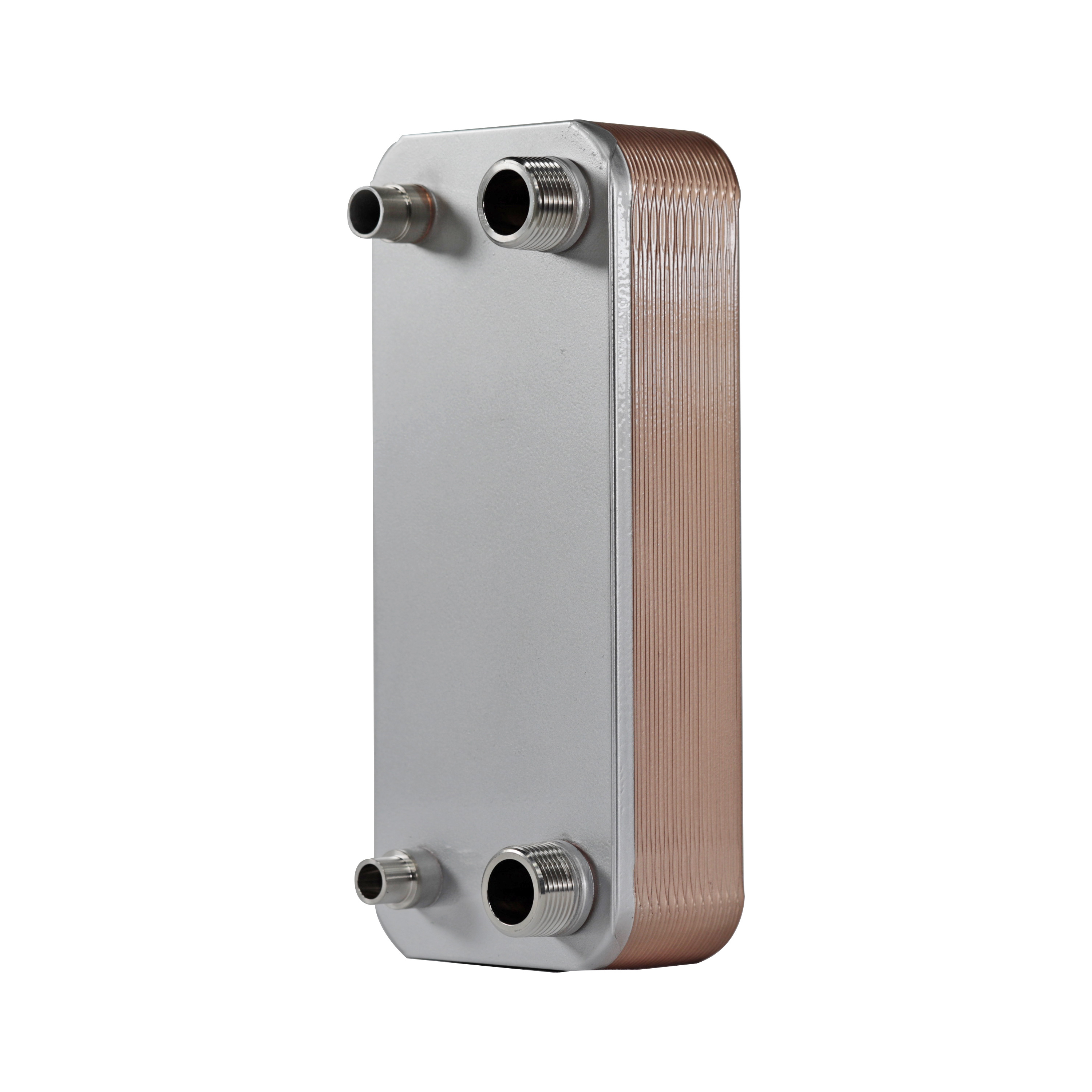

Product Name:
-
titanium heat exchanger coil
-
Heat exchanger type:
-
Copper brazed plate heat exchanger
-
Main application:
-
condenser
-
Plate material:
-
Stainless steel AISI316
-
Connections:
-
Stainless steel AISI 316, 304
-
Design data:
-
Max 45 bar up to 225C, testing pressure 60 bar
-
advantage:
-
high efficient
-
Application:
-
heating cooling
-
Connection type:
-
customized
-
Marketing Type:
-
New Product 2020
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
--
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Baode
-
Liquid Flow Rate:
-
--
-
Maximum Working Pressure:
-
4.5Mpa
-
Weight:
-
1 KG
-
Dimension(L*W*H):
-
---
-
After-sales Service Provided:
-
Overseas service center available
-
Product Name:
-
titanium heat exchanger coil
-
Heat exchanger type:
-
Copper brazed plate heat exchanger
-
Main application:
-
condenser
-
Plate material:
-
Stainless steel AISI316
-
Connections:
-
Stainless steel AISI 316, 304
-
Design data:
-
Max 45 bar up to 225C, testing pressure 60 bar
-
advantage:
-
high efficient
-
Application:
-
heating cooling
-
Connection type:
-
customized
-
Marketing Type:
-
New Product 2020
heat transfer plate stainless steel condensers titanium heat exchanger coil coil
| Brazed plate heat exchangers specification | |||
| Model | BL14 | BL20 | BL26 |
| Width (mm) | 78 | 76 | 111 |
| Height (mm) | 206 | 310 | 310 |
| Length (m) | 9+2.3n | 9+2.3n | 10+2.36n |
| Horizontal port distance (mm) | 42 | 42 | 50 |
| Vertical port distance (mm) | 172 | 282 | 250 |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 |
| Max flowrate (M3/h) | 3.6 | 3.6 | 8.1 |
| Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n |
| Model | BL26C | BL50 | BL95 |
| Width (mm) | 124 | 111 | 191 |
| Height(mm) | 304 | 525 | 616 |
| Length (m) | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance (mm) | 70 | 50 | 92 |
| Vertical port distance (mm) | 250 | 466 | 519 |
| Maxpressure(Mpa) | 3 | 3/4.5 | 3/4.5 |
| Max flowrate (M3/h) | 8.1 | 12.7 | 39 |
| Weight[kg] | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 |
| Width (mm) | 246 | 307 | 321 |
| Height(mm) | 528 | 696 | 738 |
| Length (mm) | 13+2.36n | 13+2.75n | 13+2.7n |
| Horizontalportdistance (mm) | 174 | 179 | 188 |
| Vertical port distance (mm) | 456 | 567 | 603 |
| Max pressure [Mpa] | 3 | 3 | 21 |
| Max flowrate [M3/h] | 42 | 100 | 100 |
| Weight[kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n |
| Model | BL600 | BL100 | BL210 |
| Width [mm] | 429 | 248 | 322 |
| Height [mm] | 1398 | 495 | 739 |
| Length [mm] | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontalportdistance[mm] | 220 | 157 | 205.2 |
| Vertical port distance [mm] | 1190 | 405 | 631 |
| Max pressure [Mpa] | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 300 | 42 | 100 |
| Weight[kg] | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
