-Inside wall, SUS 304, thickness: 3mm
-Outside wall, SUS 304, thickness: 2mm
-Cooling jacket: both on cylinder and cone parts, SUS 304
-Insulation: Polyurethane, thickness:100mm
-Dome top and cone bottom,60 degree
-Working pressure: 0.2Mpa
-Relief/vacuum valve on top
-Sample valve
-Rotating racking arm with butterfly valve
-Inside CIP arm with 360° CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Discharge arm with butterfly valve
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
customized
-
Weight:
-
KG
-
Core Components:
-
Beer tank
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Heating method:
-
electricity /steam /gas direct /HERMS /RIMS
-
Material:
-
SUS304/316 or red copper
-
Material Thickness:
-
Inside:3.0mm, outside:2.0mm
-
Insulation:
-
PU/glass wool ,100mm
-
Optional:
-
LED light on dome top,hops filter
-
capacity range:
-
100 liter to 10000 liter
-
Welding:
-
100% TIG Welding
-
Control system:
-
PLC/PID control cabinet
-
Polishing:
-
0.4-0.6um/Mirror Polished
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAINBOW
-
Voltage:
-
220v/380v/440v/adjustable
-
Power:
-
0-80KW
-
Dimension(L*W*H):
-
customized
-
Weight:
-
KG
-
Core Components:
-
Beer tank
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Heating method:
-
electricity /steam /gas direct /HERMS /RIMS
-
Material:
-
SUS304/316 or red copper
-
Material Thickness:
-
Inside:3.0mm, outside:2.0mm
-
Insulation:
-
PU/glass wool ,100mm
-
Optional:
-
LED light on dome top,hops filter
-
capacity range:
-
100 liter to 10000 liter
-
Welding:
-
100% TIG Welding
-
Control system:
-
PLC/PID control cabinet
-
Polishing:
-
0.4-0.6um/Mirror Polished
Products Description
|
Items
|
Equipment
|
Specification
|
|
|
Brewhouse
|
Malt miller
|
100kg/h
|
|
|
|
Mash/Lauter tun
|
100L
|
|
|
|
Brew kettle/Whirlpool
|
100L
|
|
|
|
Hot liquid tank
|
200L
|
|
|
|
Plate heat exchanger
|
3m2
|
|
|
|
Wort pump
|
3m³/h
|
|
|
Fermentation
|
Fermenter
|
100L
|
|
|
|
Yeast adding tank
|
30L
|
|
|
Cooling
|
Glycol water tank
|
200L
|
|
|
|
Glycol chiller
|
3hp
|
|
|
|
Glycol water pump
|
3m³/h
|
|
|
CIP
|
Alkali tank
|
30L
|
|
|
|
Sterilization tank
|
30L
|
|
|
|
CIP pump
|
3 m³/h
|
|
|
Control
|
Digital/PLC control panel (Main electrical instruments brand:SIEMENS, OMRON, DANFOSS, SCHNEIDER, ABB)
|
|
|
|
Spare parts
|
All necessary spare, like pipelines, valves, gauges…
|
|
|
|
Optional
|
bottle filler and capper, keg washing machine, keg filling machine, steam boiler, filter machine...
|
|
|

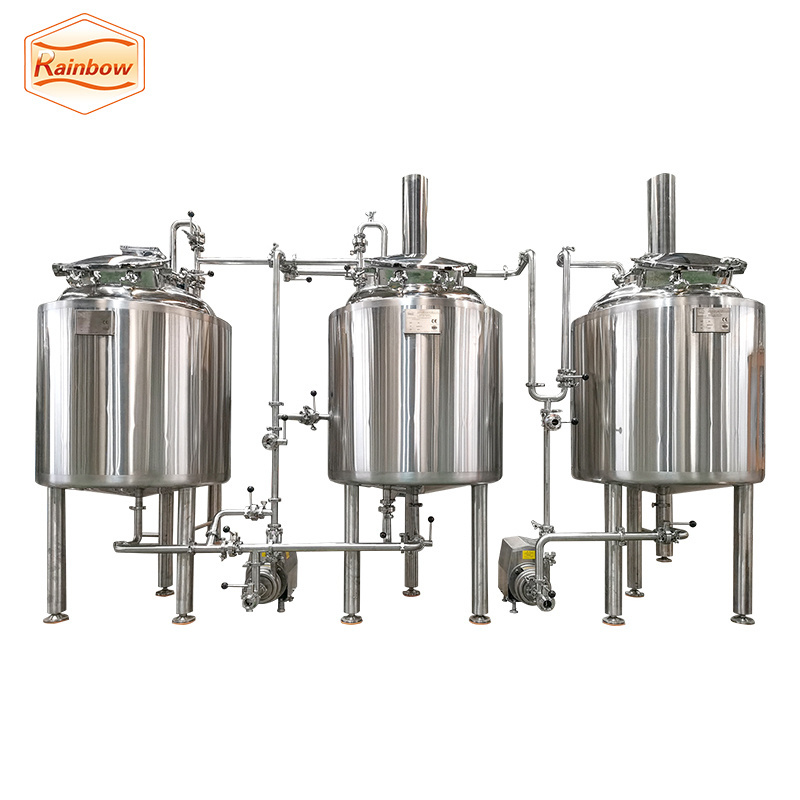

Brewhouse System
Different Combinations of brewhouse system:
-2 veseels:
Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool
-3 vessels:
Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool
Mash/lauter tun+Brew kettle+Whirlpool
-4 vessels:
Mash tun, Lauter tun, Brew kettle, Whirlpool
Optional: Hot liquor tank/Cold liquor tank
Heating method: Electricity/Steam/Direct gas fire
-2 veseels:
Mash/lauter tun +Brew kettle/whirlpool
Mash/brew kettle+Lauter/whirlpool
-3 vessels:
Mash/brew kettle+Lauter tun+Whirlpool tun
Mash tun+Lauter tun+Brew kettle/whirlpool
Mash/lauter tun+Brew kettle+Whirlpool
-4 vessels:
Mash tun, Lauter tun, Brew kettle, Whirlpool
Optional: Hot liquor tank/Cold liquor tank
Heating method: Electricity/Steam/Direct gas fire
Features:
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3mm
-Exterior Shell: SUS304,thickness:2mm
-Insulation:Polyurethane, thickness:100mm
-Interior Finish: Fine polishing to 0.4~0.6um without dead corner
-100% TIG welding with pure argon gas shield
-Top mounted manway
-Side manway for spent grains
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom, thickness:5mm, wedge shape
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3mm
-Exterior Shell: SUS304,thickness:2mm
-Insulation:Polyurethane, thickness:100mm
-Interior Finish: Fine polishing to 0.4~0.6um without dead corner
-100% TIG welding with pure argon gas shield
-Top mounted manway
-Side manway for spent grains
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom, thickness:5mm, wedge shape
-360°CIP sparying ball，2pcs
