Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-8/10/12K-SG04LP3
-
Input Voltage:
-
DC48V
-
Output Voltage:
-
AC380V/400V
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
422W*658H*281D
-
Certificate:
-
CE/TUV/VDE
-
Warranty:
-
5 Years
-
Weight:
-
36.8 KG
-

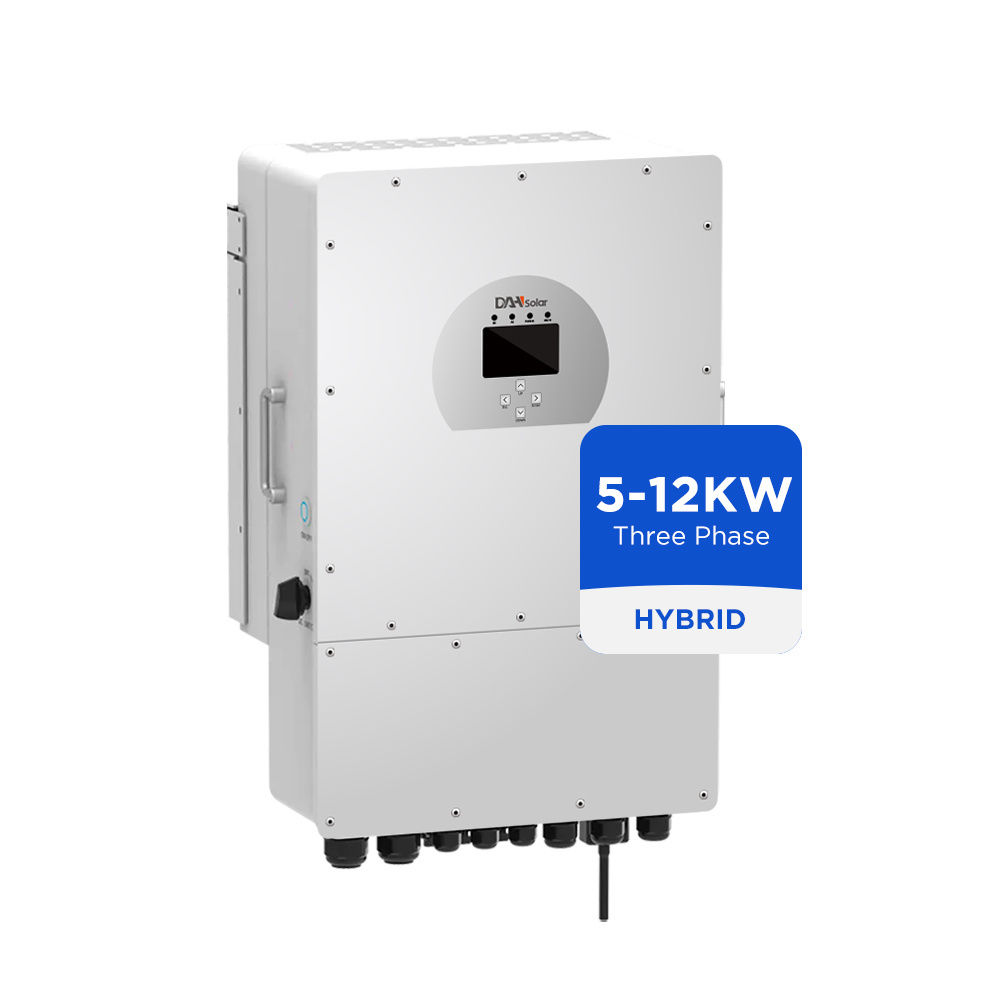

Product Name:
-
Hybrid Solar Inverter
-
Inverter type:
-
Three Phase Hybrid Inverter
-
Battery Voltage:
-
40~60V
-
Keyword:
-
Deye Hybrid Inverter
-
Battery type:
-
Lead-acid or Li-lon
-
MPPT Efficiency:
-
99.9%
-
Rated AC Output and UPS Power (W):
-
12000W
-
No.of MPPT Trackers:
-
2
-
PV Input Current (A):
-
26A+13A
-
Max. DC Input Power (W):
-
15600W
Quick Details
-
Output Type:
-
Triple, 3 Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.9%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-8/10/12K-SG04LP3
-
Input Voltage:
-
DC48V
-
Output Voltage:
-
AC380V/400V
-
Output Frequency:
-
50Hz or 60Hz
-
Size:
-
422W*658H*281D
-
Certificate:
-
CE/TUV/VDE
-
Warranty:
-
5 Years
-
Weight:
-
36.8 KG
-
Product Name:
-
Hybrid Solar Inverter
-
Inverter type:
-
Three Phase Hybrid Inverter
-
Battery Voltage:
-
40~60V
-
Keyword:
-
Deye Hybrid Inverter
-
Battery type:
-
Lead-acid or Li-lon
-
MPPT Efficiency:
-
99.9%
-
Rated AC Output and UPS Power (W):
-
12000W
-
No.of MPPT Trackers:
-
2
-
PV Input Current (A):
-
26A+13A
-
Max. DC Input Power (W):
-
15600W
|
Model
|
SUN-8K-SG04LP3
|
SUN-10K-SG04LP3
|
SUN-12K-SG04LP3
|
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Battery Voltage Range(V)
|
40~60V
|
|
|
|||
|
Max. Charging Current (A)
|
190A
|
210A
|
240A
|
|||
|
Max. Discharging Current (A)
|
190A
|
210A
|
240A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|||
|
External Temperature Sensor
|
Optional
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
10400W
|
13000W
|
15600W
|
|||
|
PV Input Voltage (V)
|
550V (160V~800V)
|
|
|
|||
|
MPPT Range (V)
|
200V-650V
|
|
|
|||
|
Start-up Voltage (V)
|
160V
|
|
|
|||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+13A
|
|||
|
No.of MPPT Trackers
|
2
|
|
|
|||
|
No.of Strings Per MPPT Tracker
|
1+1
|
2+1
|
2+1
|
|||
|
AC Output Data
|
|
|
|
|||
|
Rated AC Output and UPS Power (W)
|
8000W
|
10000W
|
12000W
|
|||
|
Max. AC Output Power (W)
|
8800W
|
11000W
|
13200W
|
|||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|||
|
AC Output Rated Current (A)
|
12A
|
15A
|
18A
|
|||
|
Max. AC Current (A)
|
18A
|
23A
|
27A
|
|||
|
Max. Continuous AC Passthrough (A)
|
50A
|
50A
|
50A
|
|||
|
Output Frequency and Voltage
|
50 / 60Hz; 400Vac (three phase)
|
|
|
|||
|
Grid Type
|
Three Phase
|
|
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
|
|||
|
Certififications and Standards
|
|
|
|
|||
|
Grid Regulation
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|
|
|||
|
Safety EMC/Standard
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Operating Temperature Range (℃)
|
-25~60℃, >45℃ Derating
|
|
|
|||
|
Cooling
|
Smart cooling
|
|
|
|||
|
Noise (dB)
|
<30 dB
|
|
|
|||
|
Communication with BMS
|
RS485; CAN
|
|
|
|||
|
Weight (kg)
|
36.8
|
|
|
|||
|
Size (mm)
|
422W×658H×281D
|
|
|
|||
|
Protection Degree
|
IP65
|
|
|
|||
|
Installation Style
|
Wall-mounted
|
|
|
|||
|
Warranty
|
5 Years
|
|
|
|||
