Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
Tube diameter:15-230mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
CYPCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQLASER
-
Weight (KG):
-
6000 KG
-
Product name:
-
JQ fiber laser tube cutting machine FLT-6016L
-
Keyword:
-
tube cutting machine
-
Laser power:
-
1000w/2000w/3000w/4000w
-
Function:
-
cutting metal materials
-
Cutting materials:
-
carbon steel/stainless steel/ alumunum
-
Laser source:
-
IPG/Raycus
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Control system:
-
CYPCUT
-
Laser head:
-
RAYTOOLS
-
Working table:
-
6000mm
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
60m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
Tube diameter:15-230mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
CYPCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQLASER
-
Weight (KG):
-
6000 KG
-
Product name:
-
JQ fiber laser tube cutting machine FLT-6016L
-
Keyword:
-
tube cutting machine
-
Laser power:
-
1000w/2000w/3000w/4000w
-
Function:
-
cutting metal materials
-
Cutting materials:
-
carbon steel/stainless steel/ alumunum
-
Laser source:
-
IPG/Raycus
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Control system:
-
CYPCUT
-
Laser head:
-
RAYTOOLS
-
Working table:
-
6000mm
Product Description

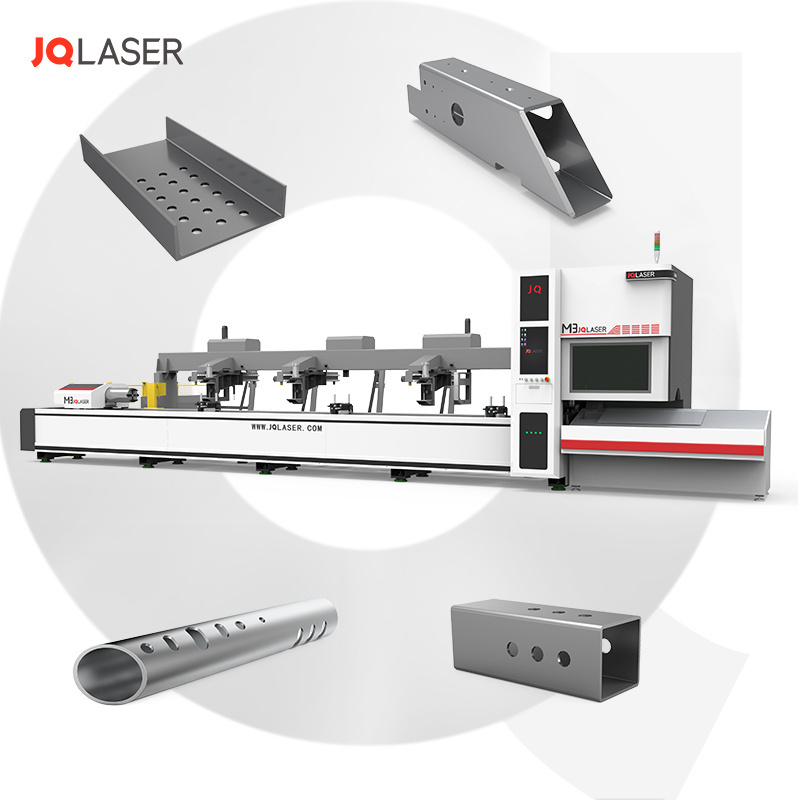

Product Show
Product advantages
:
1. Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.
2.The auxiliary support system adopts the servo follow-up support, which has higher processing precision in pipe cutting compared with the variable diameter wheel.
3 Intimate design for front receving table. The cut waste material is automatically dropped to the waste trolley, realizing continuous processing of pipes; greatly shortening the processing time of new products and reducing development costs.
Product Parameters
|
NO.
|
Item
|
Parameter
|
Unit
|
|
1
|
Maximum cut pipe length
|
0~6400 (more than 3 meters need to extend the front joint material)
|
mm
|
|
2
|
Cut pipe diameter
|
16~220 (external circle of workpiece)
|
mm
|
|
3
|
Minimum tail material
|
90
|
mm
|
|
4
|
Feeding range
|
Suitable for pipe specifications: round, square, rectangular pipe; feeding size: 30mm ≤ external circle diameter ≤ 150mm; single
pipe weight ≤ 150kg. |
|
|
5
|
X,Y positioning accuracy
|
±0.05/1000mm
|
mm
|
|
6
|
X,Y repeat positioning accuracy
|
±0.03/1000mm
|
mm
|
|
7
|
Acceleration speed
|
1.5G
|
m/s²
|
|
8
|
Max running speed
|
100
|
m/min
|
|
9
|
Max. speed of chuck
|
150
|
rpm
|
|
10
|
Chuck load weight
|
Front and rear chucks 120Kg each
|
mm
|
|
11
|
Weight of loading machine
|
6500
|
Kg
|
|
12
|
Main machine shape (length, width and height)
|
Approx. 10700×3700×2410
|
mm
|
|
13
|
Laser power
|
1
|
kw
|
|
14
|
Control system
|
Bertrud 5000B
|
|
|
15
|
Power of the whole machine
|
24
|
kw
|
|
16
|
Power supply requirements
|
380v/50Hz
|
|
