Quick Details
-
Lift Speed:
-
Manual by youself
-
Marketing Type:
-
Hot Product 2021
-
Weight (KG):
-
23 kg
-
Hook Material:
-
Alloy Steel
-
Hand Chain:
-
Galvanized
-
Chain:
-
80class
-
Diameter of load chain:
-
6,8,10mm
-
Color:
-
As your requirements
-
Proof Load:
-
individual proof tested 1.25 times of working load limit
-
Standard lifting height:
-
2.5 / 3 m
-
Test Load:
-
0.75-25 t
-
Certification:
-
CE chain hoist lever block
-
After Warranty Service:
-
Video technical support, Online support
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KOOD
-
Lift Speed:
-
Manual by youself
-
Marketing Type:
-
Hot Product 2021
-
Weight (KG):
-
23 kg
-
Hook Material:
-
Alloy Steel
-
Hand Chain:
-
Galvanized
-
Chain:
-
80class
-
Diameter of load chain:
-
6,8,10mm
-
Color:
-
As your requirements
-
Proof Load:
-
individual proof tested 1.25 times of working load limit
-
Standard lifting height:
-
2.5 / 3 m
-
Test Load:
-
0.75-25 t
-
Certification:
-
CE chain hoist lever block
-
After Warranty Service:
-
Video technical support, Online support
Product Description

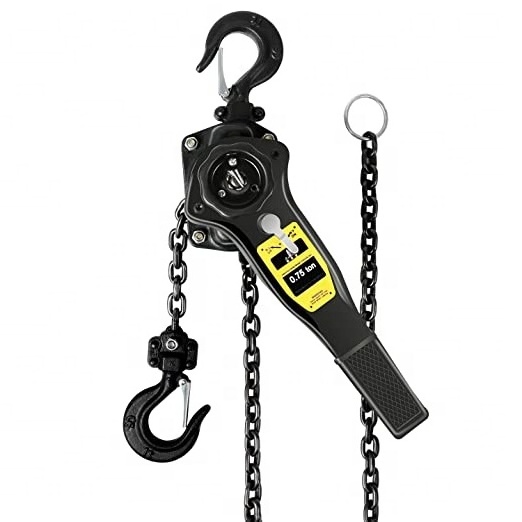

Lever Hoists
1:Chain hoist Capacity range from 0.5ton to 50 ton.
2: Compact sized design product suitable for all application. 3: Suspension and load hooks are made of alloy steel,35CrMo treated.
heat and fitted with heavy duty safety latches, fitting groove and inspection points. 4:Machined chain sprocket and gears provide.
smoother,more efficient operation.
5:Hook with safety latch securely can rotate freely 360 degrees.
6: Ergonomic handle design so that the hoist is easy to operate.
2: Compact sized design product suitable for all application. 3: Suspension and load hooks are made of alloy steel,35CrMo treated.
heat and fitted with heavy duty safety latches, fitting groove and inspection points. 4:Machined chain sprocket and gears provide.
smoother,more efficient operation.
5:Hook with safety latch securely can rotate freely 360 degrees.
6: Ergonomic handle design so that the hoist is easy to operate.
|
Model LSD-DC
|
|
75
|
100
|
150
|
200
|
300
|
600
|
|
|
Capacity (ton)
|
|
0.75
|
1
|
1.5
|
2
|
3
|
6
|
|
|
Standard lifting height (m)
|
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
|
Running test load (t)
|
|
1.13
|
1.5
|
2.25
|
3
|
4.5
|
9
|
|
|
Pulling efforts (kg)
|
|
15
|
20
|
18
|
24
|
38
|
39
|
|
|
Chainfall
|
|
1
|
1
|
1
|
1
|
1
|
2
|
|
|
Load chain diameter (mm)
|
|
6.3
|
6.3
|
7.1
|
8
|
9
|
9
|
|
|
Net weight (kg)
|
|
6.9
|
7.1
|
9.4
|
10.1
|
16.3
|
27.2
|
|
|
Dimensions (mm)
|
A
|
148
|
152
|
161
|
168
|
191
|
191
|
|
|
|
B
|
128
|
128
|
148
|
148
|
180
|
243
|
|
|
|
C
|
295
|
310
|
335
|
350
|
405
|
550
|
|
|
|
D
|
256
|
256
|
368
|
368
|
368
|
368
|
|
|
|
G
|
45
|
48
|
52
|
60
|
66
|
80
|
|
Details Images
HEAVY-DUTY G80 CHAIN
This manual chain hoist is equipped with a leverage gear that can easily lift the heaviest loads. It can lift up to 0.75 tons/1653 lbs to 10 ft. and will help you run your workshop with greater efficiency.
SOLID & DURABLE
All parts of the hoist are made of high-quality alloy steel engineered with the highest standards of craftsmanship. As long as it is used within the rated load, it will not cause big wear and tear to the levered chain hoist, which ensures a long product life.
SAFETY
The forged alloy steel hook has excellent corrosion resistance and toughness ratings, and for increased safety allows for small deformations without breaking even under overload conditions. The safety latches can rotate 360 degrees without limitation so the hook is easier to operate and thus safer.
HEAVY-DUTY G80 CHAIN
The G80 manganese chain with a diameter of 5/16 inch and length of 5 feet has been treated to a black oxidation process that ensures rust- and corrosion-resistance for prolonged service life. These chains run smoothly and won’t ever get stuck.
