Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Aohong
-
Color:
-
Clear
-
OEM & ODM:
-
Accepatable
-
Material:
-
99.9% Pure Quartz
-
MOQ:
-
10pieces
-
Soften point:
-
1730℃
-
Annealing Point:
-
1250℃
-
Package:
-
wrapped with bubble film, then in carton, then in wooden box
-
End treatment:
-
Cutting or fire polished
-
Length:
-
100mm-2500mm
Quick Details
-
Type:
-

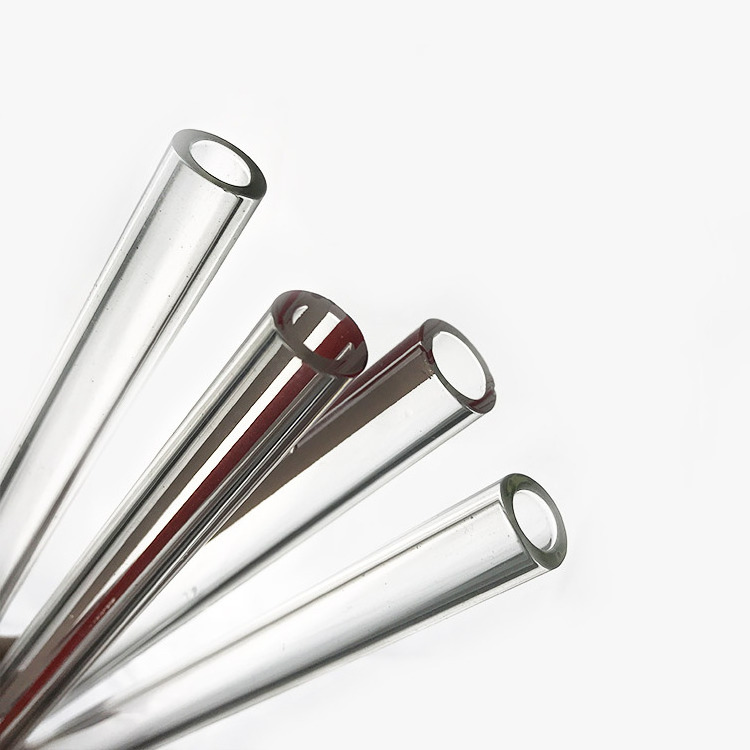

Clear Quartz Pipe
-
Application:
-
electrical, semiconductor, electric light source
-
Outside Diameter:
-
3 ~ 300mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Aohong
-
Color:
-
Clear
-
OEM & ODM:
-
Accepatable
-
Material:
-
99.9% Pure Quartz
-
MOQ:
-
10pieces
-
Soften point:
-
1730℃
-
Annealing Point:
-
1250℃
-
Package:
-
wrapped with bubble film, then in carton, then in wooden box
-
End treatment:
-
Cutting or fire polished
-
Length:
-
100mm-2500mm
Product Description
Fused Clear Silica Quartz Glass Plate
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
Specification
|
Mechenical Behavior
|
Standard Values
|
|
Density
|
2.2g/cm³
|
|
Compressive Strength
|
100Mpa
|
|
Young's Modulus
|
7200Mpa
|
|
Modulus of Rigidity
|
3100Mpa
|
|
Mohs Hardness
|
5.5~6.5
|
|
Transformation Point
|
1280℃
|
|
Softening Point
|
1780℃
|
|
Annealing Point
|
1250℃
|
|
Specific Heat(20~350℃)
|
670J/kg.℃
|
|
Thermal Conductivity(20℃)
|
1.4W/m.℃
|
|
Index of Refraction
|
1.4585
|
|
Thermal Processing Temperature
|
1750~2050℃
|
|
Short-term Use Temperature
|
1300℃
|
|
Long-term Use Temperature
|
1100℃
|
|
Material
|
Silicon Dioxide(Natural Quartz)
|
|
Surface
|
No Air Bubble, No Process
|
|
Strain
|
1270℃ Fused the Quartz Glass Brick
|
|
PPM
|
Controlled 10/20/100 PPM
|
|
Thickness
|
0.5mm~40mm
|
