• Sizes: up to 36″ wide (consult factory)
• Standard Thickness: 0.030″, 0.043″, 0.056”
• Maximum Operating Temperature: 400°F (204°C) intermittent
• Minimum Operating Temperature: -60°F (-50°C)
• Maximum Watt Density: 60 watts/in²
• Maximum Voltage: 600 volts
• Wattage Tolerance: standard +5% -10%
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
JIA
-
Weight:
-
1.5 KG
-
Working Temperature Range:
-
100 - 1500 ℃, -60-280°C
-
Product name:
-
12v-480v silicone rubber strip heater Electric heating element
-
Dimension(L*W*H):
-
as your requests
-
Wattage:
-
0.2/cm2 to 1.0/cm2
-
Key word:
-
Siliconre Rubber Heater
-
Usage:
-
High Temperature Electric Heating
-
Adhesive:
-
3M Brand
-
Leading time:
-
Normally within 7 working days
-
Thickness:
-
1.5-4 mm
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v or customized, 12-480V
-
Place of Origin:
-
JIA
-
Weight:
-
1.5 KG
-
Working Temperature Range:
-
100 - 1500 ℃, -60-280°C
-
Product name:
-
12v-480v silicone rubber strip heater Electric heating element
-
Dimension(L*W*H):
-
as your requests
-
Wattage:
-
0.2/cm2 to 1.0/cm2
-
Key word:
-
Siliconre Rubber Heater
-
Usage:
-
High Temperature Electric Heating
-
Adhesive:
-
3M Brand
-
Leading time:
-
Normally within 7 working days
-
Thickness:
-
1.5-4 mm

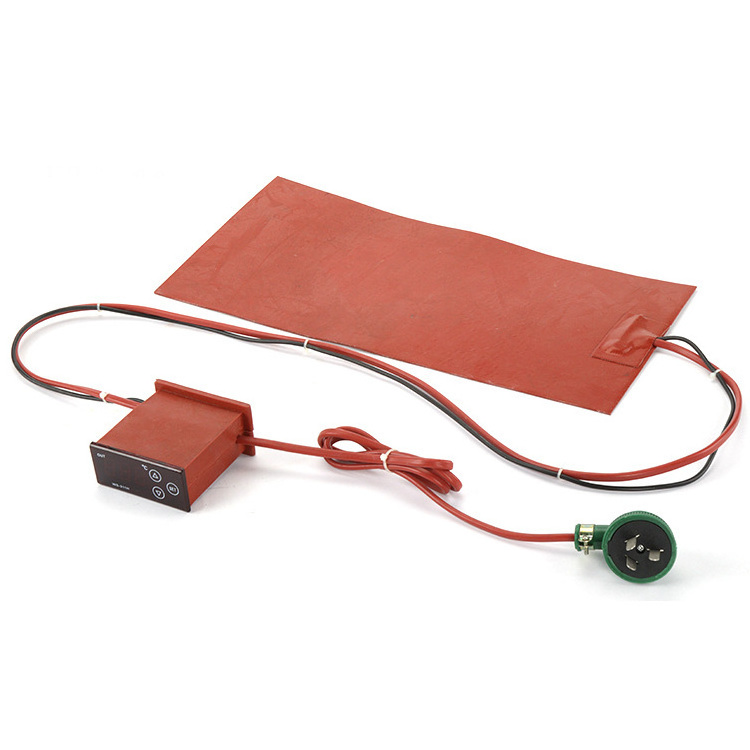

Customized 12v-480v silicone rubber strip heater Electric heating element
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements.
Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little
material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements.
Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little
material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
|
Technical Data:
|
|
|
|
Model
|
round,square, Rectangular (any shaped)
|
|
|
Maximum Operating Temperatures
|
250 °C
|
|
|
Thickness
|
1.5mm standard
|
|
|
Voltage
|
1.5-400V
|
|
|
Wattage
|
0.1-1w/cm2
|
|
|
Thermostat
|
with or W/O
|
|
|
Thermistor
|
with or W/O
|
|
|
3M self-adhesive
|
yes or no
|
|
|
Standard diameter tolerance
|
metric: -0.02 / -0.06 mm
|
|
|
High voltage resistance*
|
1500 V AC at > 24 V operation voltage
|
|
|
Thermocouple Location
|
type J / K / Ground wire
|
|
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.)
3.Any shaped is available
Standard Oil drum Silicone Rubber heater:
|
Volume
|
200Liter
|
200Liter
|
20Liter
|
20Liter
|
100Liter
|
|
OD(oil barrel)
|
580mm
|
580mm
|
300mm
|
300mm
|
580mm
|
|
Size
|
250x1740mm
|
125x1740mm
|
200x860mm
|
120x860mm
|
250x1250mm
|
|
Voltage & wattage
|
220v/2000w
|
220v/1000w
|
220v/800w
|
220v/500w
|
220V/1500W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
Weight(kg)
|
1.4
|
1
|
0.8
|
0.7
|
1.2
|
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
Liquefied gas cylinder heating belt
|
apacity
|
15KG
|
15KG
|
50KG
|
|
Size
|
100x970mm
|
150x970mm
|
120x1250mm
|
|
Voltage & wattage
|
220V/300W
|
220V/350W
|
220V/400W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
weight (KG)
|
0.5
|
0.6
|
0.8
|
Ammonia bottle heating blanket
|
Volume
|
47L
|
470L
|
930L
|
|
Size
|
1100x690mm
|
1600x800mm
|
2000x1000mm
|
|
Heating size
|
1000x600mm
|
1400x700mm
|
1600x900mm
|
|
Voltage & wattage
|
220V/3000W
|
220V/4000W
|
220V/6000W
|
|
Thermocuple
|
2pcs K thermocuple
|
3pcs K thermocouple
|
3pcs K thermocouple
|
|
Thermostat
|
2pcs
|
3pcs
|
3pcs
|
Production Steps:
Specifications:
Mounting Methods:
• Pressure Sensitive Adhesive Surface (PSAS)
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
Advantages of Silicone Heat Tape:
•Dimensional stability
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
Fudi Electric&Equipment Co., Ltd. is one of the most leading and advanced electric heating accessories companies in China, integrating the design, manufacture and marketing of high-tech heating elements. Brand name "FID" was formed in 1983 which more than 30 years ago. We specialize in Flexible Ceramic Pad Heater, PWHT accessories , slicone rubble heater, cartridge heater, electric tubular heater, electric bands and thermocople. We have developed advanced skills and technologies. Our products are widely used in electricity, information, power, automobile and other fields.
Range of PWHT Flexible Ceramic Pad Heater : 30v flexible pad heater, 40v ceramic heating pad, 60v flexible ceramic pad heater, 80v ceramic blanket heater, channel heaters, flexible insulated preheaters, LCD heaters, etc.
"FUDI" strictly complies with ISO9001 quality management system. Our products are widely used in aerospace, mining machinery, lift, power, paper making, laboratory, nonferrous metal processing, electronics processing, textile machinery and other industries, FUDI provides wholesale and retail services.
We have the largest stocks in China, professional manufacturing experience, most complete industrial flexible pad heater , rock bottom price, best service, speedy delivery.
