Quick Details
-
corporate name:
-
MUTIAN
-
Place of production:
-
china hebei
-
Sling Type:
-
Chain
-
Certification:
-
CE, ISO, etc
-
Chain:
-
G80 Chain
-
Usage Way:
-
plant, workshop, etc
-
Capacity:
-
2t
-
Standard lifting height:
-
1.5M
Quick Details
-
Model Number:
-

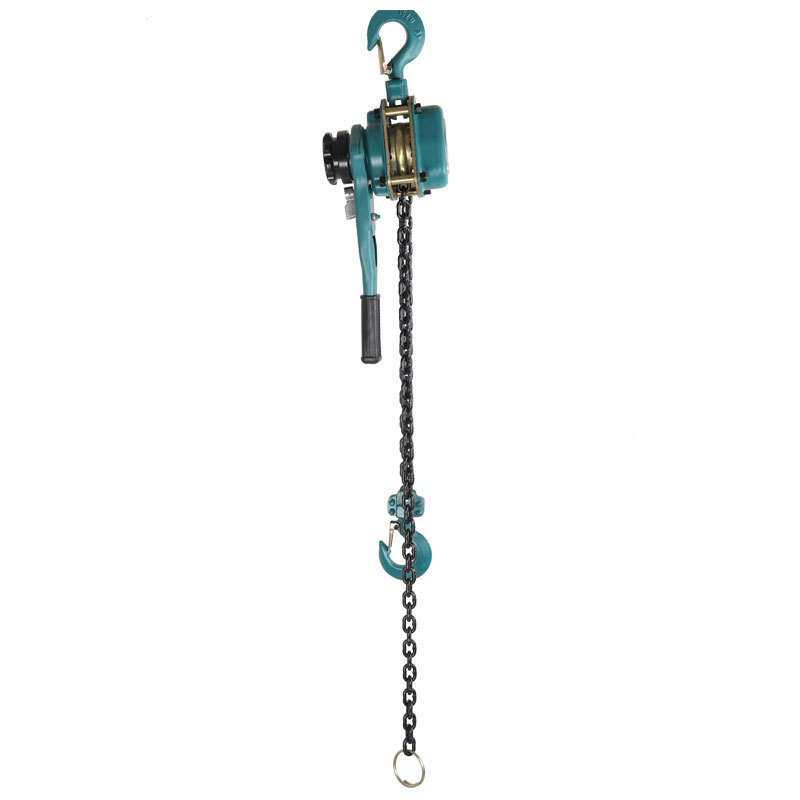

MLB lever chain hoist
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Hebei, China
-
corporate name:
-
MUTIAN
-
Place of production:
-
china hebei
-
Sling Type:
-
Chain
-
Certification:
-
CE, ISO, etc
-
Chain:
-
G80 Chain
-
Usage Way:
-
plant, workshop, etc
-
Capacity:
-
2t
-
Standard lifting height:
-
1.5M
Adjustable Blocks 750kg Ratchet For dairy factory Lever Hoistgreat quality Hsh Hand Block Hoist Stainless Steel Lever Handle On Backplate For Fireworks factoryhot sale Ratchet Chain 6ton Hand Operated Block Lifting For paint factory Lever Pulley Hoist
| Model | MLA008 | MLA010 | MLA015 | MLA020 | MLA030 | MLA060 | MLA090 | |
| Rated lifting capacity | TONS | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Mark the lifting height | M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Style load | KN | 11.2 | 15 | 22.5 | 30 | 45 | 75 | 112.5 |
| Maximum hand pull | N | 225 | 300 | 310 | 310 | 350 | 400 | 410 |
| Number of lifting chain rows | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
| Hoisting chain diameter Dimensions | MM | 6.3 | 6.3 | 7.1 | 7.1 | 9.1 | 9.1 | 9.1 |
| A | 155 | 155 | 180 | 180 | 205 | 205 | 205 | |
| B | 100 | 100 | 115 | 115 | 120 | 120 | 120 | |
| C | 130 | 130 | 155 | 155 | 195 | 240 | 300 | |
| D | 34 | 34 | 48 | 48 | 53 | 67 | 80 | |
| H | 310 | 310 | 390 | 390 | 470 | 780 | 780 | |
| L | 265 | 265 | 360 | 360 | 410 | 410 | 410 | |
| K | 23 | 23 | 33 | 33 | 38 | 47 | 57 | |
| Net weight | KG | 7.5 | 7.5 | 9.5 | 15.5 | 16.5 | 27 | 40 |
| Dimensions | CM | 39x17x16.5 | 39x17x16.5 | 56.5x25x18 | 56.5x25x18 | 55x25x17.5 | 55x25x23 | 55x32.5x25 |
| The weight added for every one meter increase in lifting height | KG | 1.8 | 1.8 | 2.1 | 2.2 | 3.1 | 4.2 | 7.7 |
Product features:
The use of a free device with stickers for quick chain pulling results in high work efficiency, stable braking, and high safety. The long axle adopts a patented structure, and the multi limit control braking effect is higher and more reliable.
The handwheel is connected with involute splines, making the long shaft and handwheel a whole and less susceptible to external interference. The optional gear ratio is very small when using the handle for operation
Standard configuration high-strength alloy steel lifting chain
Forged hook with specialized heat treatment, high strength and long service life
Environmental conditions for use:
Temperature range: -10 ° C-50 ° C
Humidity: less than or equal to 100% RH. This product is not intended for underwater operations and should not be subjected to long-term moisture to prevent rain and water intrusion for use
Material: No special materials (friction discs do not contain effective carcinogenic asbestos materials)
