Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
100%
-
Voltage:
-
380V 50Hz(Customized)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OrangeMech
-
Dimension(L*W*H):
-
4800*900*2000
-
Weight:
-
1600 KG
-
Name:
-
Ice cream fill machine
-
Function:
-
Auto-Weight-Form-Fill-Seal
-
Material:
-
Stianless Steel
-
Usage:
-
Filling Packing Machine
-
Advantage:
-
Easy Operation High Efficiency
-
Suitable for:
-
Paste Liquid Cream
-
MOQ:
-
1SET
-
Feature:
-
High Level High Speed
-
Speed:
-
1200L/H
Quick Details
-
Machinery Capacity:
-
20L/min
-
Packaging Material:
-
Plastic, Paper
-
Filling Material:
-
Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
100%
-
Voltage:
-
380V 50Hz(Customized)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OrangeMech
-
Dimension(L*W*H):
-
4800*900*2000
-
Weight:
-
1600 KG
-
Name:
-
Ice cream fill machine
-
Function:
-
Auto-Weight-Form-Fill-Seal
-
Material:
-
Stianless Steel
-
Usage:
-
Filling Packing Machine
-
Advantage:
-
Easy Operation High Efficiency
-
Suitable for:
-
Paste Liquid Cream
-
MOQ:
-
1SET
-
Feature:
-
High Level High Speed
-
Speed:
-
1200L/H
◆ Product Description
Introduction

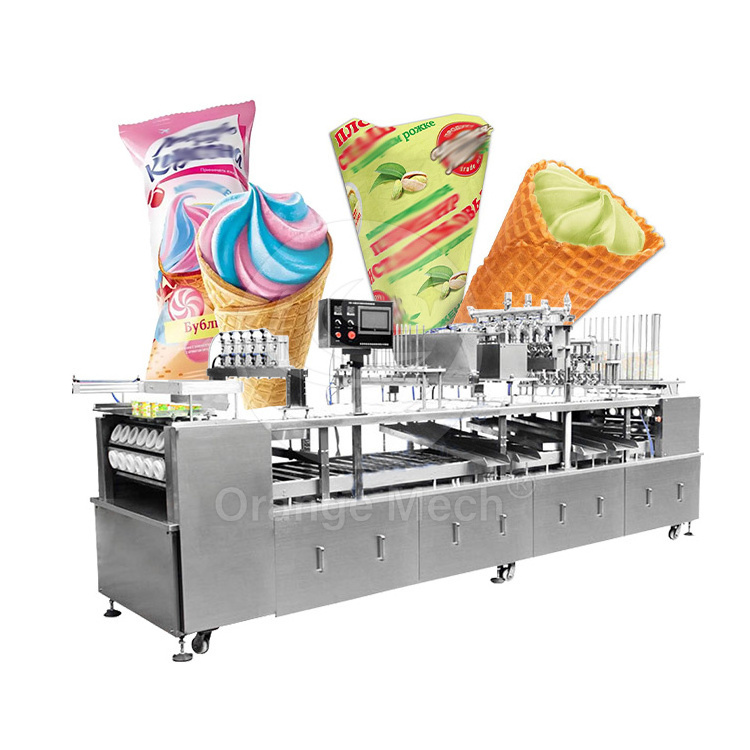

The ice cream filling machine is a four row straight plate type, which can simultaneously fill 1-8 heads of ice cream as needed.The machine automatically drops the cup, fills the ice cream, adds nuts, chocolate, and jam, and then automatically puts the lid on and closes it.
Application
Used for ice cream filling.This machine is a full automatic production line with such processes as automatic cup-loading →filling→photo electric pattern proofreading → heat sealing → cutting → leftover film collecting → cup discharging.
Features
1
.
Machine action completed by aerodynamic optimization and maneuver,
2 . Give full play to the the motor system and pneumatic system,smooth and flexible benefits,
3 . Control system for intelligent monitoring of all actions,minimize errors due to manual operation of the probability of damage caused by machine.
4 . Each action is divided into manual and automatic corporation mode,the operation and commissioning of the machine are very convient.
5 . Sealing temperature by the temperature controller has been set in advance,users do not need to make adjustments.
2 . Give full play to the the motor system and pneumatic system,smooth and flexible benefits,
3 . Control system for intelligent monitoring of all actions,minimize errors due to manual operation of the probability of damage caused by machine.
4 . Each action is divided into manual and automatic corporation mode,the operation and commissioning of the machine are very convient.
5 . Sealing temperature by the temperature controller has been set in advance,users do not need to make adjustments.
Technical Parameter
|
Name
|
Automatic Cup Ice Cream Filling and Sealing Machine
|
|
Output
|
1200L/hour
|
|
Filling volume
|
According to customer cups
|
|
Voltage
|
380V/50HZ
|
|
Air consumption
|
0.8m3/min
|
|
Cup Diameter
|
95mm
|
|
Sealing film width
|
355mm
|
|
Power
|
5kw
|
|
Sealing temperature
|
180-240C
|
|
Dimension
|
3000*800*1600mm
|
|
Packing dimension
|
3500mm*900mm*1700mm
|
|
Weight
|
1600kg
|
◆ Product Details
◆ Packaging & Shipping
▶
Install waterproof membrane to reduce dust and water pollution.
◆ Related Machines
◆ F A Q
Q1：What's your company after-sales service?
A1:
Our machine
will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1.
improper operation problem, we will solve all the usage problems by video call.
2.
machine parts problem, we will send you accessories to ensure the normal use of the machine.
3.
In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2：
Do you provide any warranty about your equipment?
A2：
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？
A3：
We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4：Does your company provide training？
A4 :
Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q5：
Differences from other brands in China ？
A5 :
We
are
not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
