Plant Walk-In Low Cost Agricultural Commercial Hydroponic Co2 Generator Prices Agricultural Greenhouses

Plant Walk-In Low Cost Agricultural Commercial Hydroponic Co2 Generator Prices Agricultural Greenhouses

FOB Reference Price: Get Latest Price

≥100 Square meters

US $3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Instruction for use:: As installation we provided

Model Number:: Single-Span Agricultural Greenhouses

Place of Origin:: Henan, China

Brand Name:: Dorisun

Structure:: hot galvanized steel with 275g/m2

Cover material:: 150micron or 200micron plastic film

Width:: 6-10m

Length:: 20-200m

Basic component:: Structure, covering film, air ventilation,doors and insect net

Optional system:: Cooling system, irrigation system,heater,lights

Application:: vegetable,tomato,fruit,flower

Advantage:: easy installed,economic

Ventilation:: Side and top ventilation

Product name:: single span agriculture greenhouse

Quick Details

Size:: Large

Type:: Single-Span Agricultural Greenhouses

Manufacturer:: Dorisun

Instruction for use:: As installation we provided

Model Number:: Single-Span Agricultural Greenhouses

Place of Origin:: Henan, China

Brand Name:: Dorisun

Structure:: hot galvanized steel with 275g/m2

Cover material:: 150micron or 200micron plastic film

Width:: 6-10m

Length:: 20-200m

Basic component:: Structure, covering film, air ventilation,doors and insect net

Optional system:: Cooling system, irrigation system,heater,lights

Application:: vegetable,tomato,fruit,flower

Advantage:: easy installed,economic

Ventilation:: Side and top ventilation

Product name:: single span agriculture greenhouse

Dorisun Greenhouse

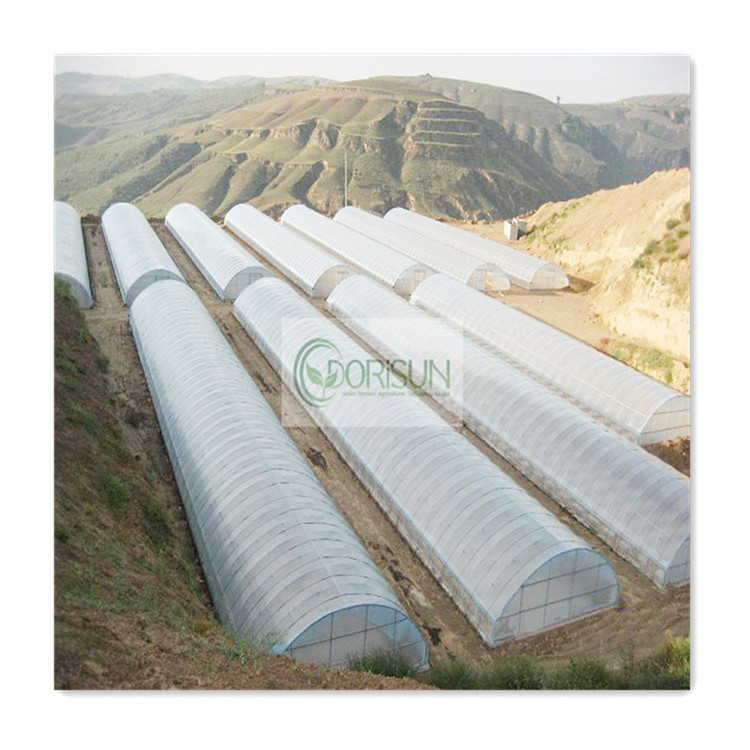

Dorisun Single-span Greenhouses

We provide one-stop service from designing, production, installation, testing and after-sale service. All the greenhouses can be made by customers' requests or advised by our professional engineer. Every greenhouse structure frame can be designed according to your environment in order to against wind and snow.

Why choose our greenhouse:

1. No bare welding points and connected by galvanized bolts, screws and self-screws, easy to install;

2. Hot galvanized steel structure, with 275g/m2 zinc coated, life time over 15years;

3. Standard 150 micron Film: anti-UV, anti-drip, anti-fog, life time 4-5years.

Technical Paramenters

Single-span Greenhouse Parameter
Length			20-100m,customized
Width			6m,7m,8m,9m,10m,customized
Shoulder height			1.3m,2m,customized
Roof height			3.3m,3.5m,customized
Greenhouse frame			275g/m2 zinc coat Hot galvanized steel pipe (diameter of arch pipe is 25mm,32mm, 40mm,50mm,60mm)
Cover film			PEP 150micon,200micron,customized
Wind load			60-130km/h
Snow load			0.25-0.5KN/m²
Rainfall			140mm3/h
Option			Side or top ventilation/heating/cooling/shading system,drip/micro irrigation system
Service			Installation video, 24 hours online service

Details Images

Cover Film

* Light transmission≥90%

*Diffusion≤20%
* Warranty: 4-8 years
* Fast heating, Anti-fog, anti-oxidation, anti-drip.

The Ventilation System

* Both sides can be roll up/ down by manual / electric.

* Top or side ventilation can be customized as your request.

Steel Structure

* Adopt hot galvanized with 275g/m2 zinc coated material(15 years life warranty).

* No welding joint structure with high corrosion and rust resistance.
* Stability structure, we can customize the diameter of pipe according to your environment.

Other Systems for Greenhouse

Working principle:

Cooling pad installed in the northern end of the greenhouse, greenhouse fan mounted in the southern end. When you need to cool down, start the fan, air is forced out of the greenhouse, resulting in negative pressure; at the same time, the pump will hit the water across the cooling pad wall. When the outdoor air is sucked vacuum chamber at a constant speed through the gap from the cooling pad, leading to water evaporation, cooling, cool air flows through the greenhouse, interior heat absorbed by the exhaust fan, so as to achieve the purpose of cooling.

Customer feedback pics

Application

Production procedure

About us

Henan Dorisun Agricultural Technology Co,.Ltd specializes in manufacturing all kinds of greenhouse and rolling bench system. Like blackout greenhouse,rolling bench,single span greenhouse,multi span greenhouse,cooling system,drip irrigation ,heaters and sales and technical services. Dorisun Agricultural is one of big factory in China, which were build over 10 years. We have a professional design team and production team,we can accept customized size and design. And best after-sales service,we can provide installation guiding service,provide installation drawings and files,and online guiding service too Our operation principle is "Quality first and Customer is first". We are making persistent efforts based on the demands from our clients, and promoting quality of the products and reducing the costs continuously, so as to supply products of high performances cost ratio.

*Factory direct sales for competitive cost

*Sufficient inventory, fast delivery

*Our factory was build over 10 years

*Professional design team and production team

* Provide one-stop online consulting service

* Professional team

* Our factory has formed a mature production system in operation. Product quality and a fter-sales service are guaranteed.

Packaging and delivery

FAQ

1. Are you a factory or trading company?

We’re factory. We will provide the best price and quality for you, your visit are warmly welcomed.

2. How to assemble the greenhouse when purchasing?

Our professional after-service engineer will send you manual instruction and installation video in accordance with your greenhouse. You can communicate with him if any needs. If necessary, we can also sent our engineer to your country to help you install the greenhouse, or you can arrange your employees to come to factory to learn how to install.
