Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALLWELL
-
Model Number:
-
ONL-B700
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
9500X2200x2000mm
-
Weight:
-
2300 KG
-
Export Markets:
-
Global
-
Unwinding Roll Core Diameter:
-
76mm
-
Max Unwinding Width:
-
1250mm/1450mm
-
bag length:
-
100mm to 800mm
-
bag width:
-
200mm to 580 mm/680mm
-
output:
-
40 to 100pcs/min
-
non woven fabric grammage:
-
30 to 100gsm
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ALLWELL
-
Model Number:
-
ONL-B700
-
Voltage:
-
220V 50Hz
-
Dimension(L*W*H):
-
9500X2200x2000mm
-
Weight:
-
2300 KG
-
Export Markets:
-
Global
-
Unwinding Roll Core Diameter:
-
76mm
-
Max Unwinding Width:
-
1250mm/1450mm
-
bag length:
-
100mm to 800mm
-
bag width:
-
200mm to 580 mm/680mm
-
output:
-
40 to 100pcs/min
-
non woven fabric grammage:
-
30 to 100gsm

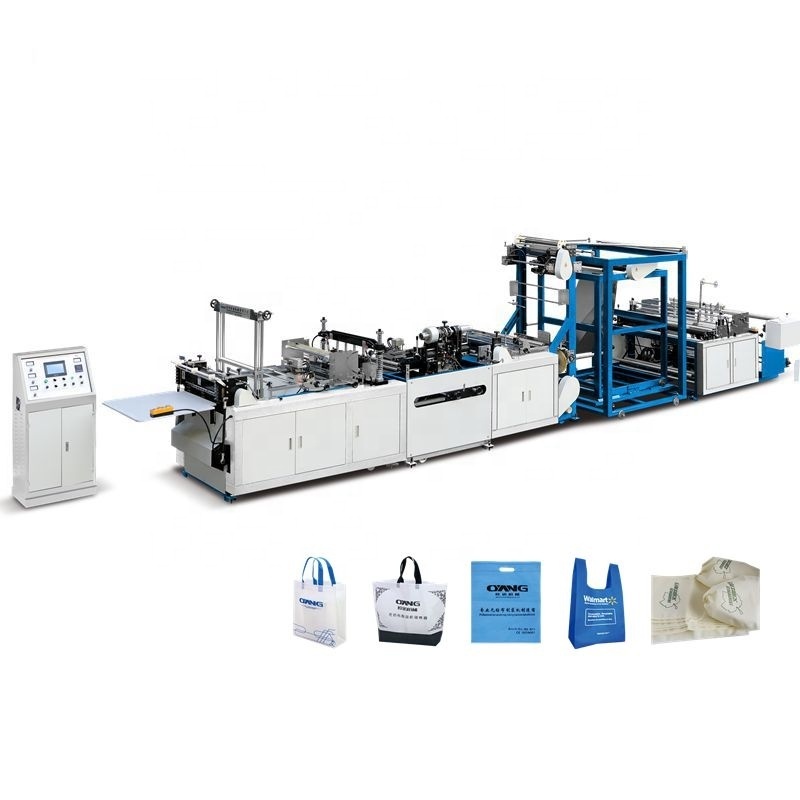

ONL-B700 Non Woven Box Bag Making Machine
This machine is suitable for PP non woven fabric, regeneration non woven fabric,lamination non woven fabric etc. It using non woven fabric roller to produce non woven bag automatically。
|
Model
|
ONL-B700
|
|
|
|
|
||||
|
Finish Products
|
Box bag
|
Handle bag
|
T-shirt bag
|
D-cut bag
|
Shoes bag
|
||||
|
Production Speed
|
60-120pcs/min
|
|
|
|
|
||||
|
Gusset
|
0-18cm
|
0-18cm
|
0-18cm
|
0-18cm
|
0-18cm
|
||||
|
Width
|
25-80cm
|
10-80cm
|
26-34cm
|
10-80cm
|
10-80cm
|
||||
|
Height
|
20-58cm
|
20-58cm
|
10-80cm
|
20-58cm
|
20-58cm
|
||||
|
Roller Width
|
1.25m
|
|
|
|
|
||||
|
Fabric Thickness
|
35-100GSM
|
|
|
|
|
||||
|
Loop Handle Thickness
|
60-120GSM
|
|
|
|
|
||||
|
Power Supply
|
220V 50Hz
|
|
|
|
|
||||
|
Total Power
|
22KW
|
|
|
|
|
||||
|
Overall Size
|
12000X2600X2000MM
|
|
|
|
|
||||
|
Gross Weight
|
4100KG
|
|
|
|
|
||||
|
Model
|
ONL-B800
|
|
|
|
|
||||
|
Finish Products
|
Box bag
|
Handle bag
|
T-shirt bag
|
D-cut bag
|
Shoes bag
|
||||
|
Production Speed
|
60-120pcs/min
|
|
|
|
|
||||
|
Gusset
|
0-18cm
|
0-18cm
|
0-18cm
|
0-18cm
|
0-18cm
|
||||
|
Width
|
25-80cm
|
10-80cm
|
26-34cm
|
10-80cm
|
10-80cm
|
||||
|
Height
|
20-58cm
|
20-58cm
|
10-80cm
|
20-58cm
|
20-58cm
|
||||
|
Roller Width
|
1.45m
|
|
|
|
|
||||
|
Fabric Thickness
|
35-100GSM
|
|
|
|
|
||||
|
Loop Handle Thickness
|
60-120GSM
|
|
|
|
|
||||
|
Power Supply
|
220V 50Hz
|
|
|
|
|
||||
|
Total Power
|
23KW
|
|
|
|
|
||||
|
Overall Size
|
12000X2700X2000MM
|
|
|
|
|
||||
|
Gross Weight
|
4300KG
|
|
|
|
|
||||
