Quick Details
-
Dimensions (L x W x H) (mm):
-
5995*1960*2850MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EVERSTAR
-
Weight:
-
4495KG
-
Passengers (including driver):
-
2
-
Bucket max height:
-
20.7M
-
Maximum working span:
-
12M
-
Outrigger Lateral span:
-
Front 4350/back4020mm
-
Work platform configuration:
-
1380x700x1100mm
-
Slewing type:
-
360 ° continuous rotation
-
Truck chassis:
-
JMC JX1041TCD26 chassis
-
Engine power:
-
85KW
-
Frame:
-
high strength box frame
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Online support
-
Dimensions (L x W x H) (mm):
-
5995*1960*2850MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EVERSTAR
-
Weight:
-
4495KG
-
Passengers (including driver):
-
2
-
Bucket max height:
-
20.7M
-
Maximum working span:
-
12M
-
Outrigger Lateral span:
-
Front 4350/back4020mm
-
Work platform configuration:
-
1380x700x1100mm
-
Slewing type:
-
360 ° continuous rotation
-
Truck chassis:
-
JMC JX1041TCD26 chassis
-
Engine power:
-
85KW
-
Frame:
-
high strength box frame
PRODUCT OVERVIEW

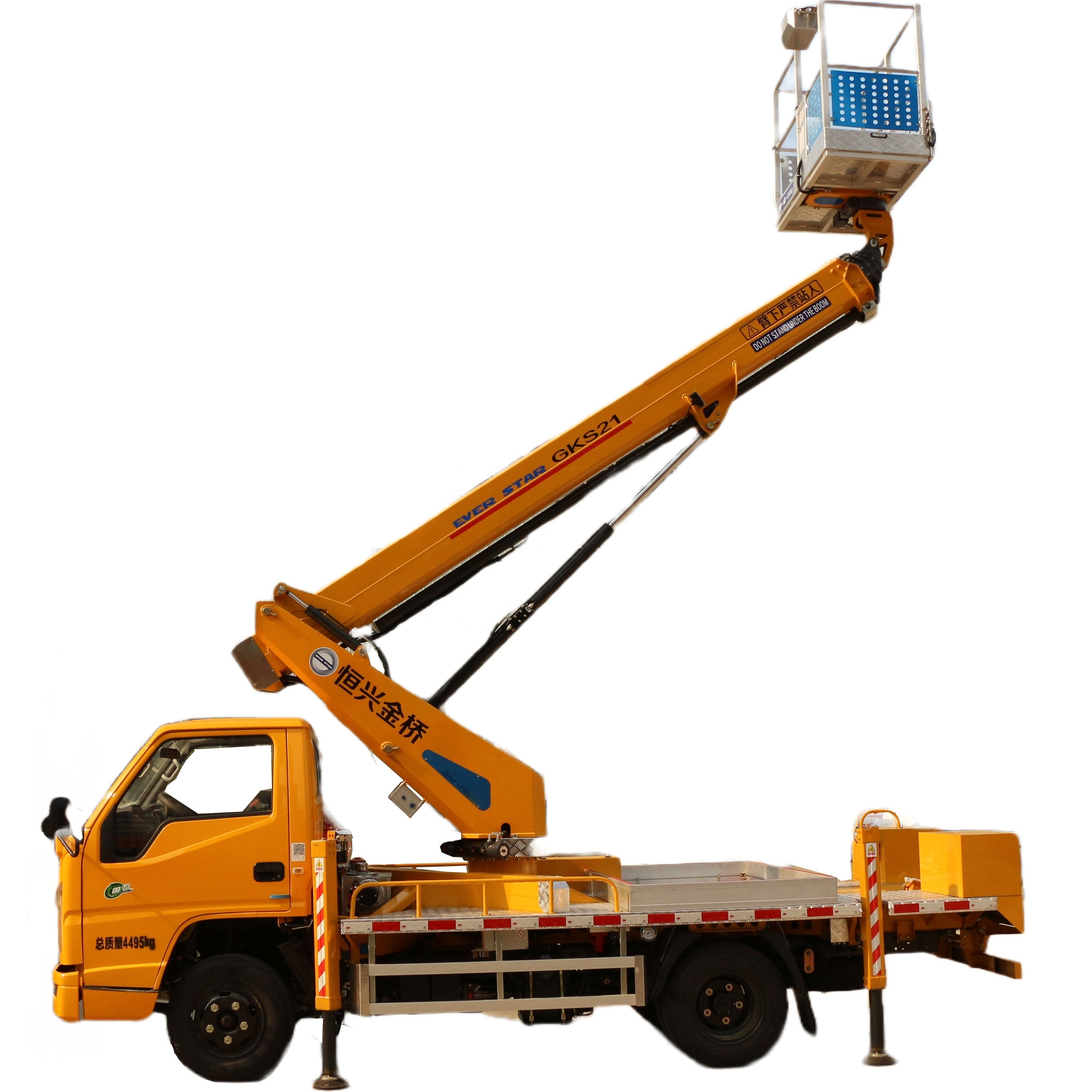

EVERSTAR Hot Sale
Truck Articulated Basket Platform
HXE5040TBAJ6
aerial work vehicle uses a fully automatic remote control system, equipped with intelligent controller and LCD, which can realize amplitude control, automatic throttle, load, amplitude, height display and other operation information.
PRODUCTS DESCRIPTION
|
Specification
|
Items
|
|
|
||
|
Overall Dimension
|
Length
|
5995
|
mm
|
||
|
|
Width
|
2080
|
mm
|
||
|
|
Height
|
2760
|
mm
|
||
|
Weight
|
Weight
|
4495
|
kg
|
||
|
|
Passengers (including driver)
|
2
|
People
|
||
|
Mainly technical data sheet
|
Bucket rated weight
|
200
|
kg
|
||
|
|
|
|
|
||
|
|
Bucket max height
|
20.7
|
m
|
||
|
|
Maximum working span
|
12
|
m
|
||
|
|
Outrigger Lateral span
|
Front 4350/back4020
|
mm
|
||
|
|
Outrigger Longitudinal span
|
3970
|
mm
|
||
|
Drive specification
|
Front/Rear suspension
|
1075/1815
|
mm
|
||
|
|
Front/rear extend
|
0/305
|
mm
|
||
|
|
Approaching/Departure Angle
|
19/13
|
°
|
||
|
|
Max. Driving Speed
|
100
|
km/h
|
||
|
|
Maximum grade ability
|
30
|
%
|
||
|
Parts description
|
HXE5041 JGKJ6 Truck Mounted Aerial Platform
|
|
Truck chassis
|
JMC JX1041TCD26 chassis
|
|
Engine
|
JMC JX4D30B6H, Engine power: 85KW
|
|
Cab
|
JMC National VI CAB，Fit 2 passages(including driver)
|
|
Work platform configuration
|
working platform dimension:1380x700x1100mm
|
|
Boom type
|
4-section polygon synchronous telescopic boom
|
|
Slewing type
|
360 ° continuous rotation
|
|
Frame
|
high strength box frame
|
|
outrigger
|
Front V + rear H outrigger, high-strength steel box-type outrigger, built-in pipeline
|
|
Operation
|
Chassis equipped with a five-handle hydraulic valve group, and the outriggers are fully hydraulical
driven both horizontally and vertically. |
|
|
The truck above chassis is equipped with a load-sensitive proportional valve, which can be operated purely manually.
|
|
|
Loading system with wireless handheld remote control,boom luffing, telescoping and slewing can be combined.
|
|
Controller
|
Equipped with intelligent controller and LCD, it can realize amplitude control, automatic throttle, load, amplitude, height
display and other operation information. |
CERTIFICATIONS
WHY CHOOSE US
1.Jiangsu Everstar International Trade Co., Ltd.
is a national high-tech enterprise specialized in the research and development, production, sales, export and service of multi-functional slip-form paver, water well drilling rig, aerial platform truck, ladder truck, highway guardrail pile driver, solar pile driver, hydraulic earth auger, piling rig spare parts and other equipment.
2.
Our company has an area of 40,000 square meters, factory area of 20,000 square meters and nearly 300 employees. Our product sales and market share have been far ahead in the industry.
3.
We fully implement the standard implementation work, currently we have 4 invention patents, 51 utility model patents, 15 appearance patents, we strictly implement the ISO9001 standard management, we are the first one who adopts refined assembly line in our industry, all products have passed the CE certification. At the same time, we have passed the strict national environmental protection certification- China Quality Certification Center Products Mandatory CCC Certification.
OUR SERVICE
1.We provide 24-hour online service.
2.
Provide new car Teaching.
3.
With 22 domestic offices, the after-sales service system is perfect, providing systematic solutions for customers, and striving to create word-of-mouth services in the ladder car and aerial work vehicle industry.
FAQ
1.What's your payment link?
There are 2 solutions, first you pay 30% advanced payment, balance pay before shipment. second 30% advanced payment, balance pay by L/C.
2.
What chassis do you use?
We use
JMC JX1041TCD26 chassis.
3.
Can you provide double row seats?
We can design double row seats for you according to your needs.
4.
Is your car fully automatic?
Yes, our car is fully automatic and equipped with a remote control.
