- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joneytech
-
Model Number:
-
IPC-Kit601W-Wifi-3.0MP
-
Resolution:
-
3MP
-
Type:
-
3MP wireless cctv cameras system
-
NVR:
-
Wireless 4CH NVR
-
Compression:
-
H.265(Main Profile)
-
Camera type:
-
Wifi Ip Camera 3 mp
-
Lens:
-
3.6mm
-
IR Distance:
-
20m
-
HDD:
-
1*HDD 4TB/6TB(not included)
-
Network Interface:
-
1 adaptable RJ45 10M/100M, 1 WIFI interface
-
installation:
-
Automatic connection with IP
-
mobile app:
-
Eseecloud
Quick Details
-
Network:
-
wifi
-
Customized support:
-
Customized logo
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Vandal-proof
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Joneytech
-
Model Number:
-
IPC-Kit601W-Wifi-3.0MP
-
Resolution:
-
3MP
-
Type:
-
3MP wireless cctv cameras system
-
NVR:
-
Wireless 4CH NVR
-
Compression:
-
H.265(Main Profile)
-
Camera type:
-
Wifi Ip Camera 3 mp
-
Lens:
-
3.6mm
-
IR Distance:
-
20m
-
HDD:
-
1*HDD 4TB/6TB(not included)
-
Network Interface:
-
1 adaptable RJ45 10M/100M, 1 WIFI interface
-
installation:
-
Automatic connection with IP
-
mobile app:
-
Eseecloud
4CH wifi security cctv ip cameras wireless cctv system
Product Description
wireless cctv system
| Wifi NVR KIT SPECIFICATION | ||
|
Key Features:
1. HD video output 2. Automatic connection with IP, save installation cost 3. Plug and play, P2P service 4. Mobile viewing, iphone&android app 5. Free DDNS :www.e-seenet.com,no need DDNS setting |
||
|
Item specifics
4 pcs 3mp camera 1pcs 4ch 3mp NVR 1pcs network cable 1pcs 12V 3A+4pcs 12V 1A power supply English User Manual CD(CMS,mobile app,manual), Mouse |
||
| Wireless NVR Specification | ||
| Model | IPC-Kit601W-Wifi-3.0MP | |
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 4CH |
| Network video input broadbank | 20Mbps | |
| AUdio Bitrate | 64Kbps | |
| AV (audio/video) output | h0mi input |
1ch,resolution:1024x768,1366x768,
1440x900,1920x3mp |
| VGA output |
1ch,resolution:1024x768,1366x768,
1440x900,1920x3mp |
|
| AV CODEC Specification | Video Resolution | D1/720P/1080P/3mp |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Alarm | Alarm Input | 4ch (optional) |
| Alarm Output | 1ch (optional) | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 8B at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc… |
|
| Network Control | ||
| Others | Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |
| IPC Specification | ||
| Technical Parameters | Model | IPC-601W |
| Sensor | 1/3” Progressive Scan Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 3MP | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification |
Three Streaming at the Same Time:
H.265 128x720@30fps or below H.264 640x480@30fps or below |
|
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General Specification | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V1A | |
| Power consumption | ≤6W | |
| Size | 205(L)×70(W)×55 (H)mm | |
| Weight | 500g | |
| Level of Protection | IP66 | |
Detailed Images

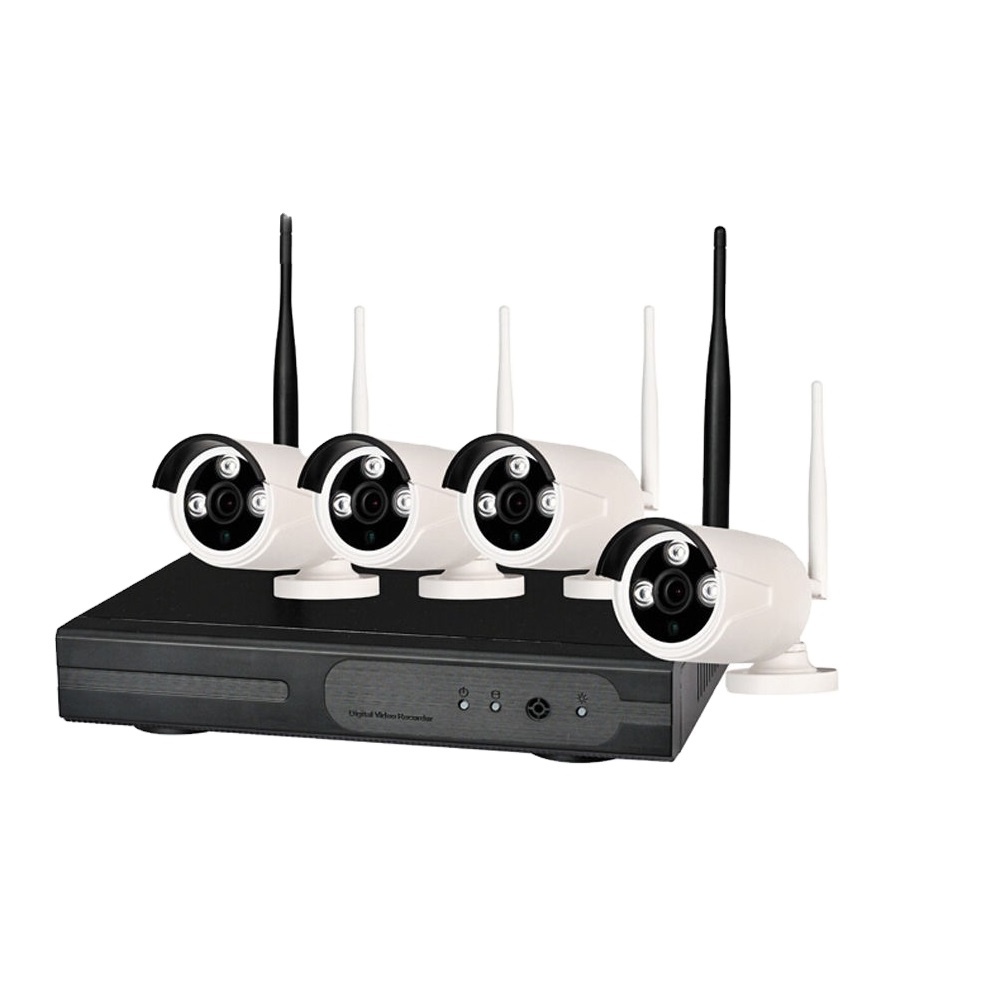

wifi nvr kit
Software
wifi nvr kit
Plug & Play Do not need Network cables !
Automatic connection with IP, save installation cost !
Mobile viewing, iphone&android APP:
