Quick Details
-
Mounting Type:
-
screw installation
-
Description:
-
micro load cell, half bridge load cell
-
Model Number:
-
SC134H (half bridge)
-
Type:
-
Half bridge weight sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SNC
-
Theory:
-
strain gauge sensor
-
Output:
-
0.8-1.6mv/v
-
item:
-
SC134 Half bridge weight sensor
-
Capacity:
-
5kg 10kg, 20kg,30kg, 50kg, 75kg,100kg, 150kg, 200kg,300kg
-
rated output:
-
0.8 ±0.2mV/V
-
Excitation voltage:
-
3V-12VDC
-
Connector:
-
support JST or other connectotrs
-
Optional:
-
HX711 load cell amplifier
-
Size:
-
34 x 34 x H mm
-
Accuracy:
-
0.05% F.S
-
Application:
-
weight measure, body scale. etc
-
Warranty:
-
12 months
Quick Details
-
Use:
-
weight measure
-
Series:
-
Body scale load cell
-
Features:
-
5kg-50kg for baby / adult scale
-
Mounting Type:
-
screw installation
-
Description:
-
micro load cell, half bridge load cell
-
Model Number:
-
SC134H (half bridge)
-
Type:
-
Half bridge weight sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SNC
-
Theory:
-
strain gauge sensor
-
Output:
-
0.8-1.6mv/v
-
item:
-
SC134 Half bridge weight sensor
-
Capacity:
-
5kg 10kg, 20kg,30kg, 50kg, 75kg,100kg, 150kg, 200kg,300kg
-
rated output:
-
0.8 ±0.2mV/V
-
Excitation voltage:
-
3V-12VDC
-
Connector:
-
support JST or other connectotrs
-
Optional:
-
HX711 load cell amplifier
-
Size:
-
34 x 34 x H mm
-
Accuracy:
-
0.05% F.S
-
Application:
-
weight measure, body scale. etc
-
Warranty:
-
12 months

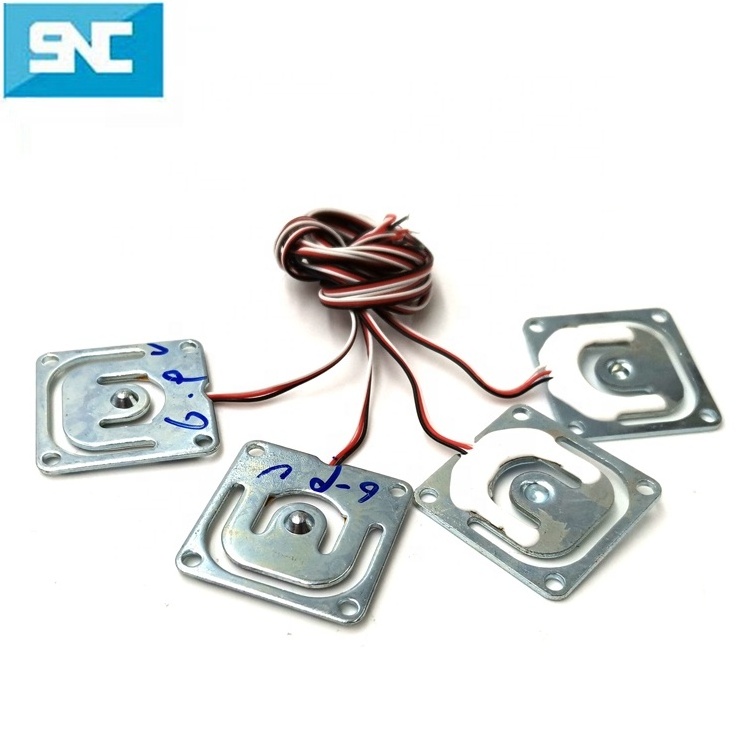

SC134 half bridge weight sensor 5kg10kg 20kg 30kg 50kg 75kg 100kg 200kg 300kg load cell half bridge Load Cell
Product Description
Features:
Model: SC134
Capacity:
10kg, 30kg, 50kg, 75kg, 100kg, 150kg
Type: Full / half bridge load cell
Material: Alloy steel with IP66 waterproof
Application: Kitchen scale, body scale and other weighing devices.
Parameters:
| Rated capacity | 5kg,10kg, 30kg, 50kg, 75kg, 100kg, 150kg |
| Zero balance | ±0.5mV/V |
| Output sensitivity | 0.8±0.2mV/V—Half Bridge, 1.6±0.2mV/V-Full Bridge |
| linearity | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Hysteresis error | 0.05%F.S |
| Creep | 0.05%F.S/1min |
| Comprehensive error | 0.05%F.S |
| Temp. effect on span | 0.1%F.S/10℃ |
| Temp. effect on zero | 0.2%F.S/10℃ |
| Input resistance | 1000±10Ω |
| Output resistance | 1000±10Ω |
| Insulation resistance | ≥2000MΩ (10VDC) |
| Excitation voltage | 3~10VDC |
| Operating temp.range | -10~+60℃ |
| Defend grade | IP66 |
| Material | alloy steel |
| Cable (Full bridge) | Red, Black, White (Green) |
| Safe Overload F.S | 150%F.S |
| Ultimate overload | 150±10kg |
| Wiring | Red(input+) Black(input-) White(output-) Green(output+) |
| Item | Full bridge / half bridge load cell |
