Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
/
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STD
-
Name:
-
T50 LPG ISO tank shipping container 20 feet LPG tank container
-
Loading medium:
-
LPG
-
Tare weight:
-
6750/13000 KG
-
Payload:
-
13750/22000 KG
-
Gross weight:
-
20500/35000 KG
-
Certification:
-
CSC
Quick Details
-
Type:
-
Tank Container
-
Capacity:
-
25000 liters, 25000/52000 liters
-
External Dimensions(l x W x H)(mm):
-
6058 x 2438 x 2591
-
Internal Dimensions(l x W x H)(mm):
-
/
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STD
-
Name:
-
T50 LPG ISO tank shipping container 20 feet LPG tank container
-
Loading medium:
-
LPG
-
Tare weight:
-
6750/13000 KG
-
Payload:
-
13750/22000 KG
-
Gross weight:
-
20500/35000 KG
-
Certification:
-
CSC
SPECIFICATION
|
Specification
|
|
|
|
1. Design standard
|
IMDG-CODE, GB150-98
|
|
|
2. Recognized register
|
CCS
|
|
|
3. Tank shape
|
Column shape, horizontal
|
|
|
4. Size
|
20/40 feet, tank type
|
|
|
5. Dimension
|
6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm
|
|
|
6. Capacity
|
25000/44500 liters
|
|
|
7. Loading medium
|
LPG
|
|
|
8. Tare weight
|
6750/13000 kg
|
|
|
9. Payload
|
13750/22000 kg
|
|
|
10. Gross weight
|
20500/35000 kg
|
|
|
Standard Configuration
|
|
|
|
1. Design pressure
|
1.8 Mpa
|
|
|
2. Working pressure
|
1.8 Mpa
|
|
|
3. Test pressure
|
2.2 Mpa, hydraulic pressure test
|
|
|
4. Gastight test pressure
|
1.8 Mpa
|
|
|
5. Vacuum test pressure
|
0.16 Mpa
|
|
|
6. Design temperature
|
-40 to 55 celsius
|
|
|
7. Working temperature
|
-40 to 55 celsius
|
|
|
8. Corrosion degree:
|
0
|
|
|
9. Welding joint efficiency
|
1.0
|
|
|
10. Radiographic inspection
|
100% X-RAY
|
|
|
11. Tank material
|
Q345DR, 12 mm
|
|
|
12. End enclosure
|
14 mm, bufferfly flat head
|
|
|
13. Compound manhole
|
DN500, 1.8+25% Mpa equipped with safety valve
|
|
|
14. Protective frame
|
800*750*150 mm
|
|
|
15. Liquid valve
|
DG50, 1 pc
|
|
|
16. Gas valve
|
DG50, 1 pc
|
|
|
17. Liquid lever
|
1 pc
|
|
|
18. Pressure gage
|
Y100, 1 pc
|
|
|
19. Thermometer
|
WSS412, 1 pc
|
|
|
20. Built-in safety valve spring
|
DG80, 1 pc
|
|
|
21. Adiabatic form
|
Sunshade
|
|
|
22. Guardrail of ladder
|
W = 400 mm
|
|
|
23. Allowable stacking weight
|
192000 kg
|
|
|
Optional Configurations
|
|
|
|
1. Recognized register
|
BV or LR
|
|

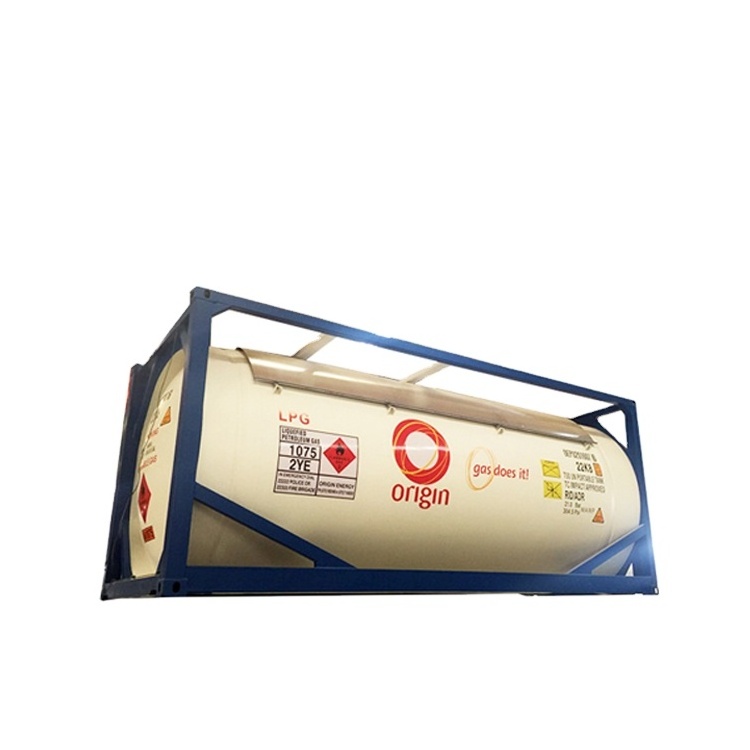

PRODUCT PICTURE
