Quick Details
-
Flow Rate:
-
50L/min
-
Printer:
-
Built-in thermal printer
Quick Details
-
Brand Name:
-
Sujing
-
Place of Origin:
-
China
-
Model Number:
-
Y09-550/Y09-350/Y09-5100
-
Flow Rate:
-
50L/min
-
Printer:
-
Built-in thermal printer

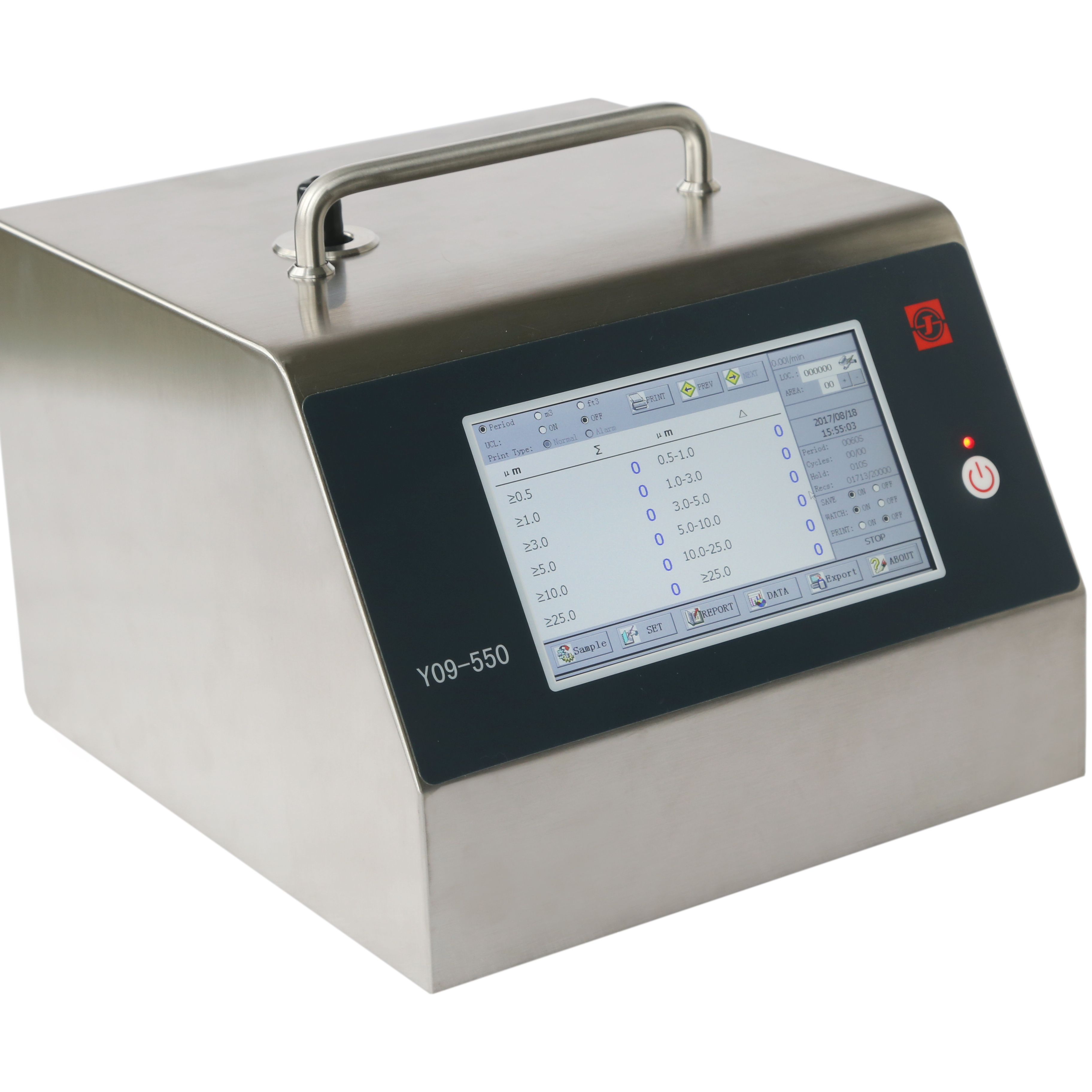

Y09-550 /Y09-350/Y09-5100 Laser Particle Counter for Cleanroom Monitoring
Y09-550 /Y09-350 airborne particle counter (hereinafter referred to as the instrument) is used to measure the size and quantity of dust particles per unit volume of air, and can directly verify ISO Class 5-8 (EU GMP Grade A-D) clean environments.
The instrument uses a laser diode light source, with touch screen (LCD) display, having such advantages like reasonable structure, high accuracy large flow rate, short sampling time, simple and convenient operation. The testing data can be directly stored in the U disk without computer acquisition, also it is micro computer controlled, can print sampling results by miniature built-in thermal printer. The instrument is widely used in electronic, optical, chemical, food, cosmetics, pharmaceuticals, biological products, aviation and aerospace etc.
l Simultaneously display of up to six particle size
l 20000-record data storage memory
l
Meet the requirements of ISO14644-1:2015
|
|
Y09-550 |
Y09-350 |
Y09-5100 |
|
Outside Dim |
268×192×292 ( mm 3 ) |
||
|
Display |
LCD |
||
|
Weight |
6 Kg |
||
|
Max.Consumption |
80W |
||
|
Power Source |
AC 220V±10%; DC16.8V (Built-in Lithium Battery) |
||
|
Size Channels |
0.5 , 1 , 3 , 5 , 10 , 25μm |
0.3,0.5 , 1 , 3 , 5 , 10μm |
0.5 , 1 , 3 , 5 , 10 , 25μm |
|
Calculation |
95%UCL calculation , showing particle concentration ( particles/cubic meter, particles/cubic feet ) |
||
|
Flow Rate |
50L/min( Imported Pump ) |
100L/min (Imported Pump ) |
|
|
Sample Time |
6~999999s ( Selectable ) |
||
|
Zero Count |
≤10min |
||
|
Location |
1~99 |
||
|
Printer |
Built-in Thermal Printer |
||
|
Alarm |
Class |
||
|
Data Storage |
20000 Samples/300Samples of UCL ( With PC Software ) |
||
|
Data Output |
USB Port |
||
|
Light Source |
Laser Diode ( 30000 hours mean time between failures ) |
||
|
Maximum Rated Particle Concentration |
35000 particles/L |
||
|
Operating Time |
More than 5.5 hours |
||
|
Environmental |
Temperature : 10~35 ℃ ; Humidity : 20%~75%RH; Atmosphere Pressure : 86~106Kpa |
||
