Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honor Machine
-
Year:
-
2021
-
Voltage:
-
380V/50HZ (Can be customized)
-
Dimension(L*W*H):
-
Customizable
-
Hollow part volume:
-
0.1-2L / 3-10L / 10-20L
-
Clamping Force (kN):
-
480
-
Power (kW):
-
20
-
Weight (KG):
-
1500 KG
-
Product name:
-
Semi Auto Bottle Blowing Machine
-
Capacity:
-
50-2000bph
-
Function:
-
PET Stretch Blowing
-
Suitable bottle:
-
PET bottle
-
Suitable bottle size:
-
0.2-2L / 3-10L / 10-20L
-
Machine material:
-
SUS304/316
-
Mold cavities:
-
1 / 2 / 4
-
Advantages:
-
Servo Motor
-
Control system:
-
PLC (SIEMENS)
-
After-sales Service Provided:
-
2 years
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Neck Diameter(mm):
-
28 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
330 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Honor Machine
-
Year:
-
2021
-
Voltage:
-
380V/50HZ (Can be customized)
-
Dimension(L*W*H):
-
Customizable
-
Hollow part volume:
-
0.1-2L / 3-10L / 10-20L
-
Clamping Force (kN):
-
480
-
Power (kW):
-
20
-
Weight (KG):
-
1500 KG
-
Product name:
-
Semi Auto Bottle Blowing Machine
-
Capacity:
-
50-2000bph
-
Function:
-
PET Stretch Blowing
-
Suitable bottle:
-
PET bottle
-
Suitable bottle size:
-
0.2-2L / 3-10L / 10-20L
-
Machine material:
-
SUS304/316
-
Mold cavities:
-
1 / 2 / 4
-
Advantages:
-
Servo Motor
-
Control system:
-
PLC (SIEMENS)
-
After-sales Service Provided:
-
2 years
-
Marketing Type:
-
Hot Product 2022
Semi Automatic 4 Cavity 2500bph PET Bottle 200ml 500ml 1000ml 1500ml Bottle Blow Molding Machine
Product Description

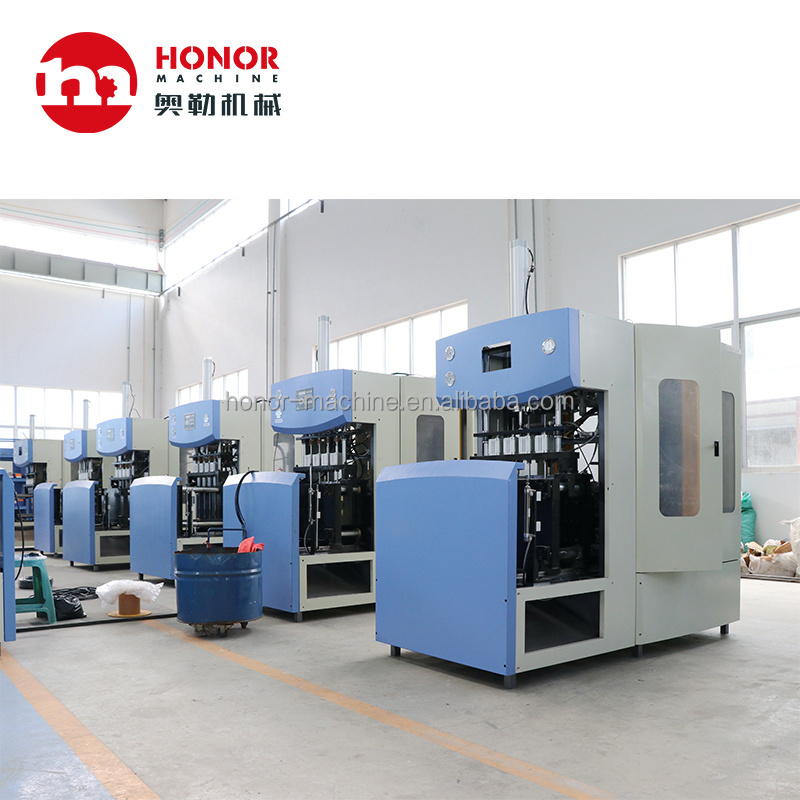

Semi Automatic PET Bottle Blowing Machine
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 0.1L to 20L. It is widely used to produce the mineral water bottle,carbonated drink bottle,Juice bottle, pesticide bottle ,oil bottle,daily chemical bottle, cosmetics bottle,wide-mouth Jar ,PET can etc.
Specification
|
Model
|
HM-1500
|
HM-S4
|
HM-8Y
|
HM-8B
|
HM-9B
|
HM-12
|
|
Capacity
(500ml/bottles/h)
|
1200-1600
|
1800-2200
|
500-700
|
300-500
|
200-400
|
60-100
|
|
Cavities
|
2+2
|
4
|
2
|
1
|
1
|
1
|
|
Bottle size(L)
|
0.2-2L
|
0.2-2L
|
0.2-2L
|
2-5L
|
5-10L
|
10-20L
|
|
Weight(KG)
|
1000
|
1300
|
780
|
980
|
1000
|
1380
|
Details Images
Main Features
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Auxiliary equipment description:
High Pressure Air Compressor Function
:To provide air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure
Air Cooling Dryer Function
:To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
Air filter Function
: To clear up the impurities out of the compressed air, like carbon hydrogen, tiny dust and solid particles.
