Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Multi Touch Screen
-
Size:
-
15.6inch
-
Aspect Ratio:
-
16:9
-
Color:
-
Black/White
-
Operating System:
-
Windows/ Android/ Linux/MAC
-
Interface:
-
USB/I2C
-
Touch points:
-
10 Points
-
Total Thickness:
-
4.65mm
-
Warranty:
-
12 Months
-
Transparancy:
-
95%
Quick Details
-
Screen Size:
-
15.6
-
Type:
-
Capacitive
-
Resolution:
-
4096*4096
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Multi Touch Screen
-
Size:
-
15.6inch
-
Aspect Ratio:
-
16:9
-
Color:
-
Black/White
-
Operating System:
-
Windows/ Android/ Linux/MAC
-
Interface:
-
USB/I2C
-
Touch points:
-
10 Points
-
Total Thickness:
-
4.65mm
-
Warranty:
-
12 Months
-
Transparancy:
-
95%
Pcap touch screen 15.6 inch projected capacitive touch screen customized diy multi touch panel usb pos terminal vending machine

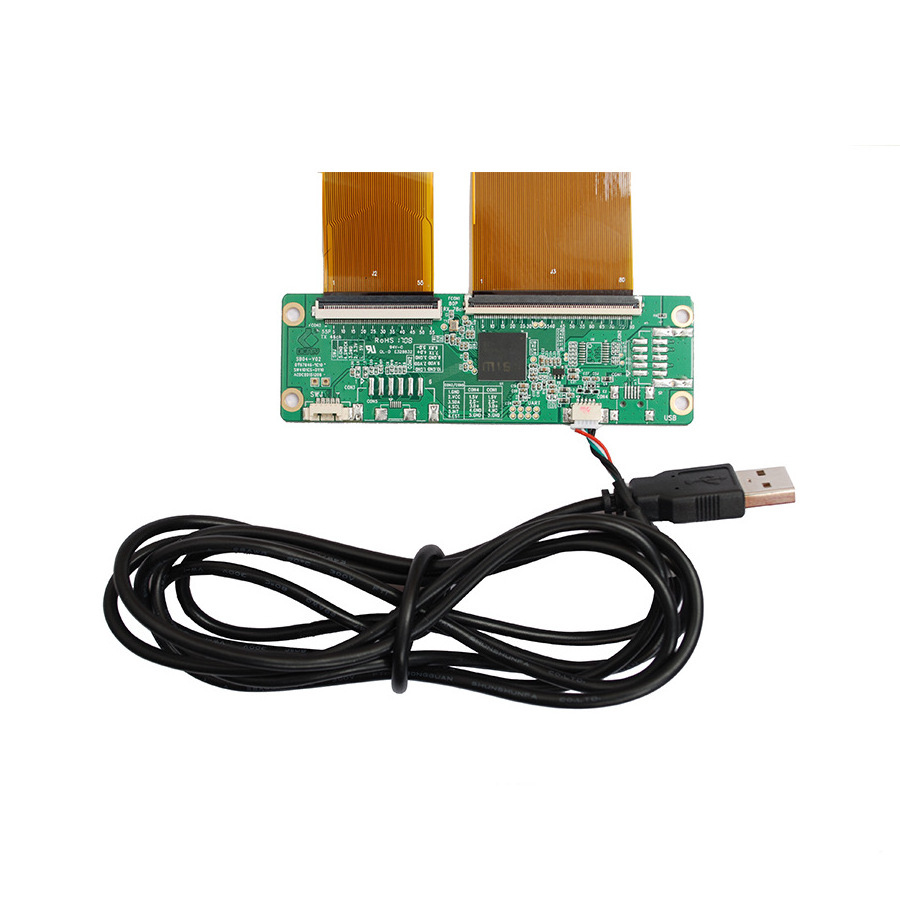

Pcap touch panel Projected Capacitive touch screen panel touch glass with Weida ILITEK EETI usb controller
Capacitive touch screen is a four-storey glass screen surface and laminated within the glass screen is coated with a layer of ITO, the outermost layer is a thin layer of silica glass, laminated ITO coating as a face, four electrode leads in the four corners, inner ITO good shielding to ensure a good working environment.
When finger touch the metal layer that is, because the body farm, users and touch-screen surface with a coupling capacitor, high frequency current, capacitance is a direct conductor, so fingers sucked away a very small amount of current from the contact point. The respectively current outflow from the touch electrode on the four corners of the screen, and flows through the four electrode current is proportional to the distance from the fingers to the four corners, controller through the accurate calculation of the four current percentage, came to the location of the touch point.
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB/RS232 Interface
> High accuracy and sensitivity
> Glass + Film or Glass + Glass or PET + Glass or Glass + Film + Film Material
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Produt Specification
|
Technical Support |
EETI WEIDA ILITEK |
|
Touch point |
10 points |
|
Touch method |
Finger,wear gloves,passive resistance touch pen |
|
Size |
Details reference to drawing |
|
Transparency |
≥90% |
|
Haze |
<1% |
|
Total thickness |
2.0/2.7/2.9/3.9/4.9mm ‹detailsreference to drawing› |
|
Cover glass thickness |
1.1/1.8/3.0/4.0mm ‹detailsreference to drawing› |
|
Durability |
More than 50 million single touches |
|
Position accuracy |
±1.5mm |
|
Interface |
USB‹stander›,RS232‹optional› |
|
Report rate |
≥100Hz |
|
Operating system |
Windows XP/Windows7/Windows8/Linux/Android |
|
Operating temperature |
-20℃–70℃‹Non condensing› |
|
Humidity |
RH<90% ‹Non condensing› |
|
Safety certificate |
CE FCC ROHS |
|
Warranty |
1 year |
|
Note |
Actual technicalspecifications depend on multiple design variables, including touch IC and The above values are for reference only. |
1.Q: Are you a factory?
A:Yes, we are a factory, we have our own production line.
2.Q: what's your products' quality control?
A:Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. Certification.
3.Q: What's your after-sale service?
A:We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4.Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the greater the quantities , the bigger the discount .
5.Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6.Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
7.Q:How does IR interactive whiteboard SKD work?
SKD is a good way to save transportation costing, custom tax, no development and nor research cost. Interactive whiteboard SKD includes PCB, aluminum frame, infrared filter, and accessories. Customer only needs to buy central panel, and assemble them perfectly.
8.Q:No response when touch the touch screen?
1.Check about the USB connection is fine,USB cable plug straight or extended?Or change a computer.
2.Abnormal operating system,Try to restart the computer
-
See if system identification in the hardware list to the touch, check the device manager of the human body to learn whether there is an exclamation point in the input device, such as there can be unloaded to identify
9.Q:Touch screen mouse disorderly jump
-
Check about the USB connection is fine,USB cable plug straight or extended?Or change a computer.
-
Abnormal operating system,Try to restart the computer
-
If there is a light interference,like strong light,mouse.
-
Structure lead the casing deformation.
