Quick Details
-
Weight (KG):
-
700 kg
-
Product Name:
-
Environmental Dust Collector
-
Application:
-
Waste Gas Purification
-
Type:
-
Exhaust Gas Treatment Equipment
-
Certification:
-
CE Certification
-
filtration efficiency:
-
99.99%
-
Motor:
-
SIEMENS
-
Filter:
-
TORAY in JAPA
-
Protocol:
-
Protocol
-
Energy saving:
-
Inverter control
-
HMI:
-
LCD
Quick Details
-
Core Components:
-
Siemens motor, Ultra-high negative pressure fan, TORAY filter system, Visual human-machine interface (HMI), Supporting EtherCAT bus, Frequency conversion, Industrial exterior design
-
Place of Origin:
-
China
-
Purify Efficiency:
-
99.99%
-
Weight (KG):
-
700 kg
-
Product Name:
-
Environmental Dust Collector
-
Application:
-
Waste Gas Purification
-
Type:
-
Exhaust Gas Treatment Equipment
-
Certification:
-
CE Certification
-
filtration efficiency:
-
99.99%
-
Motor:
-
SIEMENS
-
Filter:
-
TORAY in JAPA
-
Protocol:
-
Protocol
-
Energy saving:
-
Inverter control
-
HMI:
-
LCD
Product Description
Specially developed for dust collector control board and man-machine interface,
stable operation, intelligent and flexible, easy to operate, strong expansion. Professional intelligent program design, intuitive parameter setting, simple operation, intelligent operation according to the working condition, to ensure the normal work of dust collector. Onboard transformer to avoid interference from external circuit.
Optional 220V/380 voltage output. STM processor is used for control chip, and memory chip is designed separately to ensure flexible development and super stability. Onboard six - way back - blowing pulse output port, flexible choice of application, and can extend 48 - way pulse output. Onboard 10 points input, two alarm output. Rich interface, WIFI, EtherCAT, RS485, temperature sensor, micro differential pressure sensor, phase sequence monitoring, analog quantity, etc. For high-power motors, built-in star start function. Can connect the main equipment switch signal, remote control machine running stop. Remote and local can be started by one key, operation without manual intervention. Can control the frequency converter, more energy saving and environmental protection.

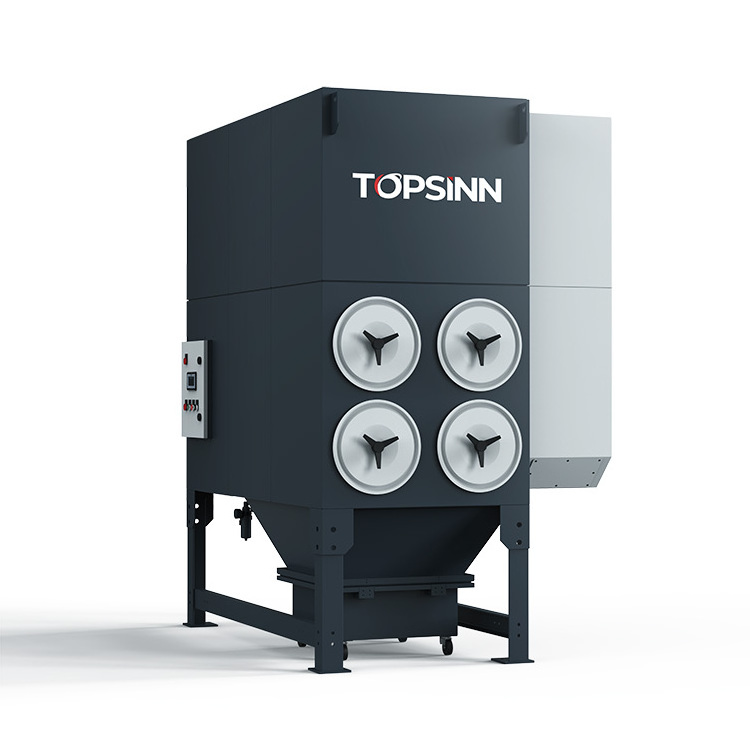

MF-4L-5.5KW
MF-6L-7.5KW
MF-8L-11KW
Human-computer interface
Specification
|
MODEL
|
MF-4L
|
MF-6L
|
MF-8L
|
|
Filter cartridge
material |
HV/Ahlstrom/TORAY，F9
|
HV/Ahlstrom/TORAY，F9
|
HV/Ahlstrom/TORAY，F9
|
|
Number of Filter
cartridge |
4
|
6
|
8
|
|
Air volume
|
3200m3/h
|
4000m3/h
|
7000m3/h
|
|
Air pressure
|
3000
|
3600
|
5000
|
|
Filtration
efficiency |
99.99%
|
99.99%
|
99.99%
|
|
Filtering area
|
82 cubic number
|
120 CBM
|
166 CBM
|
|
Entrifugal fan
|
5.5KW SIEMENS
|
7.5KW SIEMENS
|
11KW SIEMENS
|
|
Collector capacity
|
45L
|
50L
|
90L
|
|
Power requirments
|
THREE-PHASE FIVE-WIRE， 380V
|
THREE-PHASE FIVE-WIRE， 380V
|
THREE-PHASE FIVE-WIRE， 380V
|
|
pressure
request |
0.6MP, compressed air
without oil and water |
0.6MP, compressed air
without oil and water |
0.6MP, compressed air
without oil and water |
|
Unit weight
|
700KG
|
900KG
|
1200KG
|
|
Outline
Dimension(mm) |
A：2198，B：1348， C：1060，D：303
|
A：2807，B：1423， C：1180，D：383
|
A：2807，B：1423， C：1180，D：383
|
