- Product Details
- {{item.text}}
Quick Details
-
Dimension (L*W*H):
-
520*240*218mm
-
Weight:
-
22.5kg
-
System Type:
-
Off-grid System
-
Product name:
-
LiFePO4 battery
-
Brand name:
-
EITAI
-
Usage:
-
Solar Energy Solutions
-
Capacity:
-
50 Ah / 100 Ah / 200 Ah
-
Voltage:
-
12.8 V
-
Warranty:
-
5 Years
-
Application:
-
Off grid Solar System
-
Packing:
-
Standard Wooden Box
-
Certification:
-
CE, MSDS, UN38.3
-
OEM/ODM:
-
Accepatable
Quick Details
-
Model Number:
-
12.8V 50AH 100AH 200AH
-
Brand Name:
-
EITAI
-
Place of Origin:
-
Fujian, China
-
Dimension (L*W*H):
-
520*240*218mm
-
Weight:
-
22.5kg
-
System Type:
-
Off-grid System
-
Product name:
-
LiFePO4 battery
-
Brand name:
-
EITAI
-
Usage:
-
Solar Energy Solutions
-
Capacity:
-
50 Ah / 100 Ah / 200 Ah
-
Voltage:
-
12.8 V
-
Warranty:
-
5 Years
-
Application:
-
Off grid Solar System
-
Packing:
-
Standard Wooden Box
-
Certification:
-
CE, MSDS, UN38.3
-
OEM/ODM:
-
Accepatable

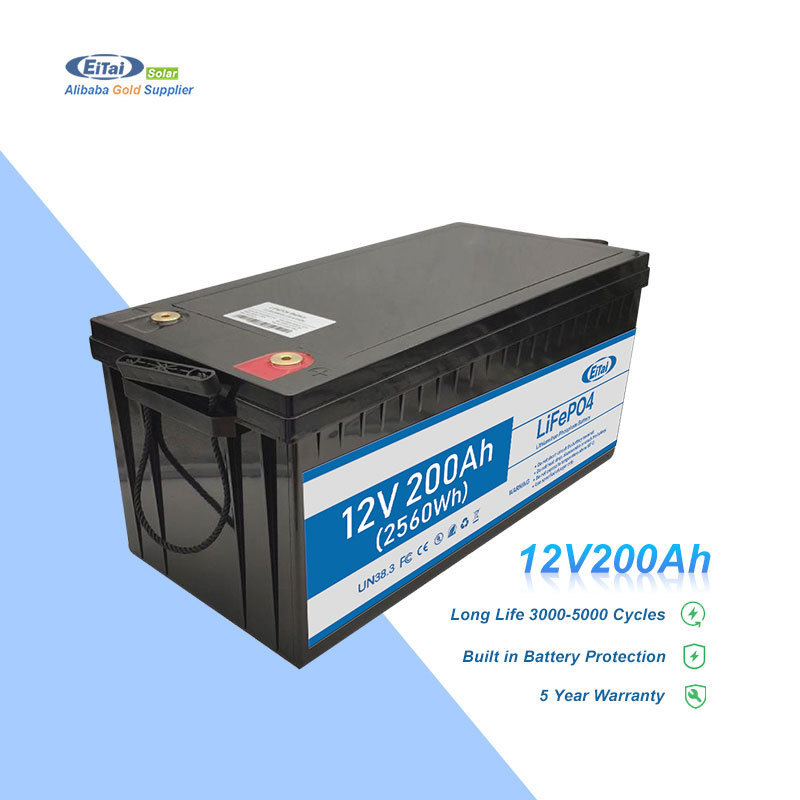

Product Description
Technical Parameters
|
Item
|
12V 50AH 640WH
|
12V 100AH 1280WH
|
12V 200AH 2560WH
|
|||
|
Performance
|
|
|
|
|||
|
Type
|
LiFePO4 battery
|
|
|
|||
|
Nominal voltage
|
12.8V
|
|
|
|||
|
Rated capacity
|
50Ah(0.2C/25°C)(Min:48Ah)
|
100Ah(0.2C/25°C)(Min:96Ah)
|
200Ah(0.2C/25°C)(Min:198Ah)
|
|||
|
Operating voltage range
|
10V~14.6V(Typical:12.8V)
|
|
|
|||
|
Charging voltage
|
14.6V
|
|
|
|||
|
Discharge cut-off voltage
|
10V
|
|
|
|||
|
Charging current(Max.)
|
25A
|
50A
|
100A
|
|||
|
Discharge current(Max.)
|
50A
|
100A
|
100A
|
|||
|
Dimensions（L*W*H）
|
230*138*208mm
|
330*172*215mm
|
520*240*218mm
|
|||
|
Weight
|
5.8kg
|
11.5kg
|
22.5kg
|
|||
|
Shell
|
Plastics/Black
|
|
|
|||
|
Function
|
|
|
|
|||
|
Series
|
Maximum support for 4 sets in series
|
|
|
|||
|
Parallel
|
Support
|
|
|
|||
|
Terminal stud
|
M6
|
M8
|
M10
|
|||
|
Alarm&potection
|
Over Voltage, Under Voltage, Over Current,Short Circuit etc.
|
|
|
|||
|
Working Condition
|
|
|
|
|||
|
Cooling mode
|
Automatic cold and hot
|
|
|
|||
|
Altitude
|
≤4000m
|
|
|
|||
|
Humidity
|
15%~85%
|
|
|
|||
|
Operating temperature(Charge)
|
0C~50°C
|
|
|
|||
|
Operating temperature(Dischage)
|
-10°C~60°C
|
|
|
|||
|
Recommended operating temperature(Charge)
|
15°C~40°C
|
|
|
|||
|
Recommended operating temperature(Dischage)
|
15°C~40°C
|
|
|
|||
|
Recommended operating temperature(Storage)
|
-20°C~45°C
|
|
|
|||
Factory & Package
Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : 5-15days
