Quick Details
-
Size:
-
5.2X5.36X4.22m
-
Material:
-
Stainless Steel
-
Wash speed:
-
40-60cars/H
-
Product name:
-
Bus And Truck Washing Machine/Roll-over Bus Wash Equipment
-
Color:
-
Customer's Request
-
Usage:
-
Garage Car Wash
-
Washing System:
-
Foam Washing
-
Power Supply:
-
380V Three-phase
-
Power:
-
11KW
-
Brush Quantity:
-
3 group
-
Key words:
-
Tunnel bus washer/washing machine
-
Water consumption:
-
150L/wash
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Amerigo
-
Model Number:
-
AB-360-3
-
Size:
-
5.2X5.36X4.22m
-
Material:
-
Stainless Steel
-
Wash speed:
-
40-60cars/H
-
Product name:
-
Bus And Truck Washing Machine/Roll-over Bus Wash Equipment
-
Color:
-
Customer's Request
-
Usage:
-
Garage Car Wash
-
Washing System:
-
Foam Washing
-
Power Supply:
-
380V Three-phase
-
Power:
-
11KW
-
Brush Quantity:
-
3 group
-
Key words:
-
Tunnel bus washer/washing machine
-
Water consumption:
-
150L/wash
Full automatic working, more convenient and faster usage

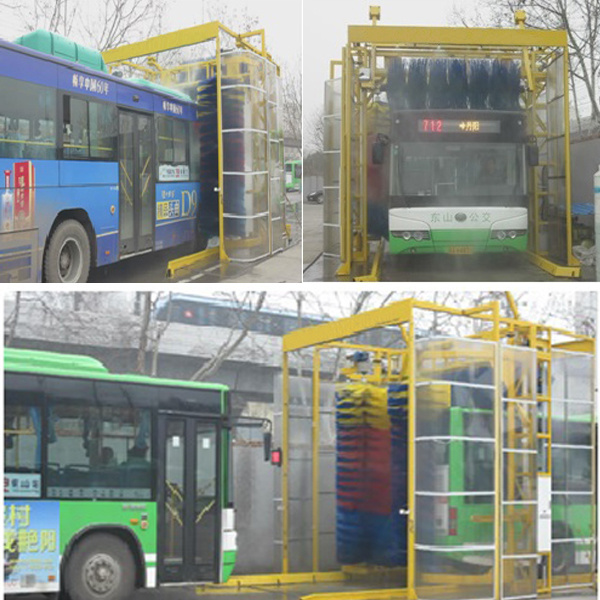

Large-scale channel-type computer-controlled car washers are designed exclusively for buses and motor buses, to be washed by channel type. The driver drives the car at a set of consistent speed into the machine to be washed. It washes the front and rear part of the car as well as both sides respectively. The fast mode of the car washer can wash buses rapidly and continously, with maximum washing capacity of 60 per hour, featuring in high degree of automation, fast speed, large quantity and occupies small floor space; it is widely applied in the public traffic system of various big cities nationwide
Main features of channel-type car washer
Computer controlled, high degree of automation, complete functions
Attractive apperance, energy conservation and environmental friendly, long service lift
Low cost of operation and low maintenance cost
Corrosion resistance and reliability
Specification
| Model | AB-360-3 |
| Wash type | Van type vehicles like motor bus and bus |
| Dimension (m) | 5.2L*5.4W*4.25H |
| Max washing dims (m) | Unlimited L*2.6W*3.6h |
| Washing speed | 60cars/h |
| Power type | 380V/50hz/11KW |
| Water consumption | 150L/wash |
| Front Big Vertical Brush (Foam brush) | / |
| Grant vertical Rear brush (Foam brush) | 2 Group |
| Balanced top brush (Foam brush) | 1 Group |
| Washing Mode |
Common water washing/wash with detergent Automatic control/manual control operation System automatic self-detection, automatic sensing spraying. Automatic profilling washing the car boday and automatic washing of the vehicle chassis The automatic high-pressure hub washing system, high-pressure bottom spraying system and sewage treatment system are available for customized option |
| Operating Mode | |
| Main function | |
| Optional components |
Note: Customize the height of the machine upon washing demand, with the maximum height of 4.2m
Packaging: Metal frame
Delivery time: 30 days
1 year warranty after container arrive at port of destination
OEM & ODM service
Spare parts will be replaced within one week, buyer bear the shipping cost
