Quick Details
-
Model Number:
-
HTAF-S-05
-
Specification:
-
5mm-65mm
-
Length:
-
1m
-
Thickness:
-
0.6-1.3mm
-
Standard:
-
ISO
-
Product name:
-
Hose and Cable Heat Aluminum Foil Fiberglass Corrugated Pipe
-
Color:
-
Silver
-
Inner Dia:
-
5mm-65mm
-
Wall Thickness:
-
0.6mm-1.3mm
-
Roll Length:
-
1m
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
HTAF-S-05
-
Specification:
-
5mm-65mm
-
Length:
-
1m
-
Thickness:
-
0.6-1.3mm
-
Standard:
-
ISO
-
Product name:
-
Hose and Cable Heat Aluminum Foil Fiberglass Corrugated Pipe
-
Color:
-
Silver
-
Inner Dia:
-
5mm-65mm
-
Wall Thickness:
-
0.6mm-1.3mm
-
Roll Length:
-
1m

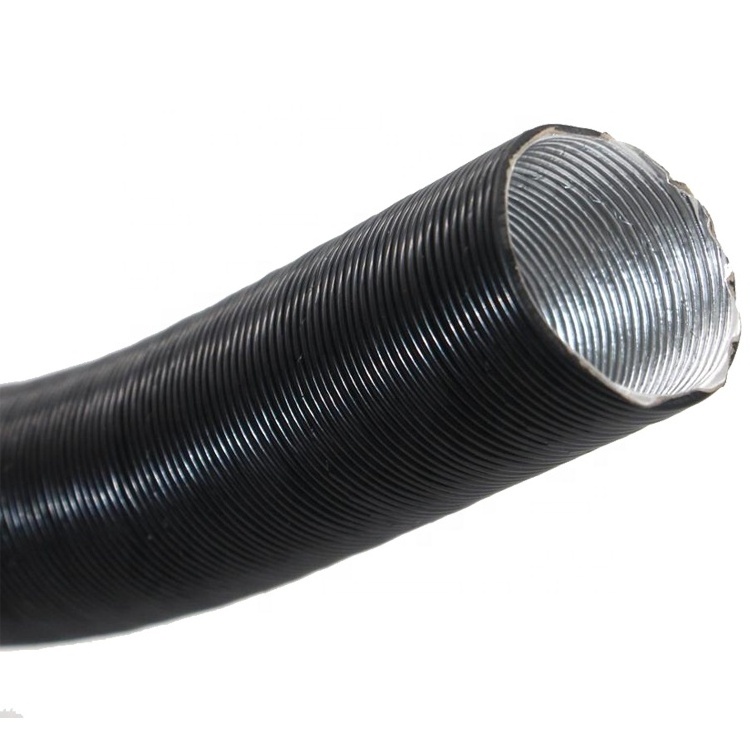

Hose and Cable Heat Aluminum Foil Fiberglass Corrugated Pipe
Aluminium foil fiberglass corrugated pipe is made of glass fiber and aluminium foil. It is a kind of water/oil resistant anti-aging,high heat resistant hose protector;180-degree free bending, no flanging off-layer or deformation when it is compressed or elongated.
Application:
Hose and Cable Heat&Flame Protection
|
Part No. |
Inner Dia (mm) |
Wall Thickness (mm) |
Roll Length (mtr) |
|
HTAF-S-05 |
5 |
0.6 |
1 |
|
HTAF-S-06 |
6 |
0.6 |
1 |
|
HTAF-S-08 |
8 |
0.6 |
1 |
|
HTAF-S-10 |
10 |
0.6 |
1 |
|
HTAF-S-12 |
12 |
0.7 |
1 |
|
HTAF-S-15 |
15 |
0.7 |
1 |
|
HTAF-S-20 |
20 |
0.8 |
1 |
|
HTAF-S-22 |
22 |
0.8 |
1 |
|
HTAF-S-25 |
25 |
0.9 |
1 |
|
HTAF-S-30 |
30 |
0.9 |
1 |
|
HTAF-S-32 |
32 |
0.9 |
1 |
|
HTAF-S-35 |
35 |
1 |
1 |
|
HTAF-S-40 |
40 |
1 |
1 |
|
HTAF-S-50 |
50 |
1 |
1 |
|
HTAF-S-55 |
55 |
1.2 |
1 |
|
HTAF-S-60 |
60 |
1.3 |
1 |
|
HTAF-S-65 |
65 |
1.3 |
1 |
*Specific products could be made according to customers’requirements.
Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
We design, build, manufacture and quality control our own products allowing the strictest of specifications, which directly benefit from Hitex years of experience gained in the global insulation market. Hence, all of our production plants are certified with ISO9001/ISO14001.
Q1.You are a trading company or manufacturer?
We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao
.
Q2.Can you send me a sample? Is it free?
Yes, the samples is free, but the courier charge should be on your side
Q3.Mode of transportation?
By sea or by air
Q4.How about the Delivery time?
Usually around 2-3 weeks after order confirmed
Q5.Can you product the customized goods?
Surely, we can be customized according to your demanding.
Q6.Do you have other production?
Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
Q7.What kinds of payment you accept?
We accept T/T, D/A, L/C,D/P,O/A
