Quick Details
-
Dimension(L*W*H):
-
15000x6000x2580mm
-
Year:
-
2022
-
Power (kW):
-
55 kW
-
Weight (KG):
-
3000 KG
-
capacity:
-
200kg/h-3000kg/h
-
End product:
-
rubber powder / fiber / steel
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
dongnuo rubber machinery
-
Voltage:
-
380V or required
-
Dimension(L*W*H):
-
15000x6000x2580mm
-
Year:
-
2022
-
Power (kW):
-
55 kW
-
Weight (KG):
-
3000 KG
-
capacity:
-
200kg/h-3000kg/h
-
End product:
-
rubber powder / fiber / steel
-
Adapt tire:
-
nylon tire , steel tire , truck tire
-
Marketing Type:
-
New Product 2022
Waste Tire Recycling Machine Manufacturing Equipment For Sale
Waste tire——Remove the ring wire——The whole tire cutter——Tire shredded into pieces——Rubber crushing——Magnetic separating ——Nylonscreening——Rubber powder
|
1
|

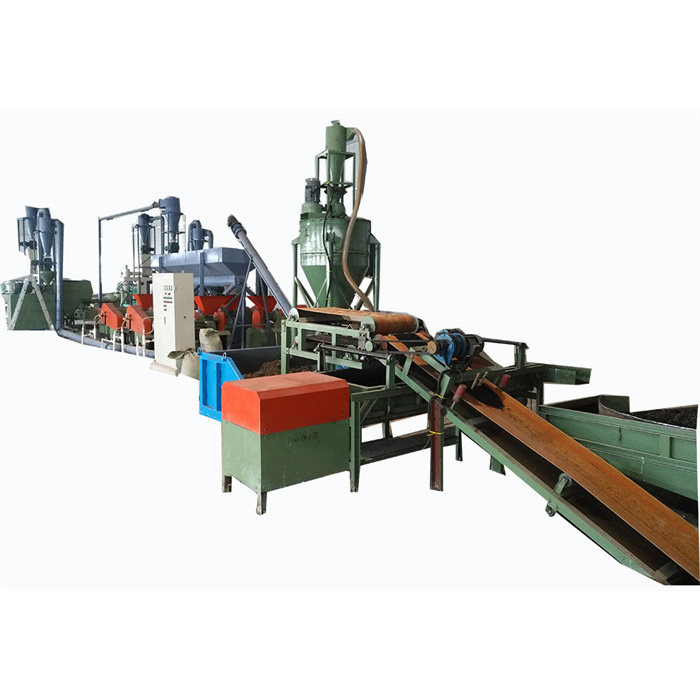

Mainly product: Waste tire recycling machine production line
|
|
2
|
All of my machines are customizable.
|
Product Description
1.Tire De-beader(Remove the ring wire)
Application: It is mainly use to extract the bead wire from tire rim.
|
1-Capacity
|
20-40 tires/hour(550-1200mm outer diameter)
|
|
2-Pulling force(T)
|
15 Tons
|
|
3-Max.tire diameter
|
1200mm
|
|
4-Power(KW)
|
7.5 KW
|
|
5-Operation way
|
hydraulic system(automatic control)
|
2.WTC-1200 Whole tyre cutter
|
1-Specification of raw material
|
900-1200mm tires
|
|
2-Specification of finished material
|
100-400mm tire blocks
|
|
3-Production Capacity
|
40-60 tires per hour
|
|
4-Pulling force
|
20 T
|
|
5-Max. Tyre diameter
|
≤1200mm
|
3.ZPS-900 tyre shredder
4.XKP-560 Rubber Crushing Mill
|
1-Feeding size
|
≤900 whole tyre(removed bead)
|
|
2-Main motor(2 motors)
|
30KW*2=60KW
|
|
3-Motor power of Output conveyor & circular sieve
|
2.2kw
|
|
4-Size of Discharge
|
50x50mm
|
|
5-Production capacity
|
1000~1500kg/h
|
|
6-Cutter rotate speed
|
28.5R/MIN
|
|
Diameter of back roll
|
560mm(groove roller)
|
|
Working length of roller
|
800 mm
|
|
Linear speed of front roll
|
25.56 m/min
|
|
Ratio
|
1:1.30
|
|
MAX gap
|
15 mm
|
