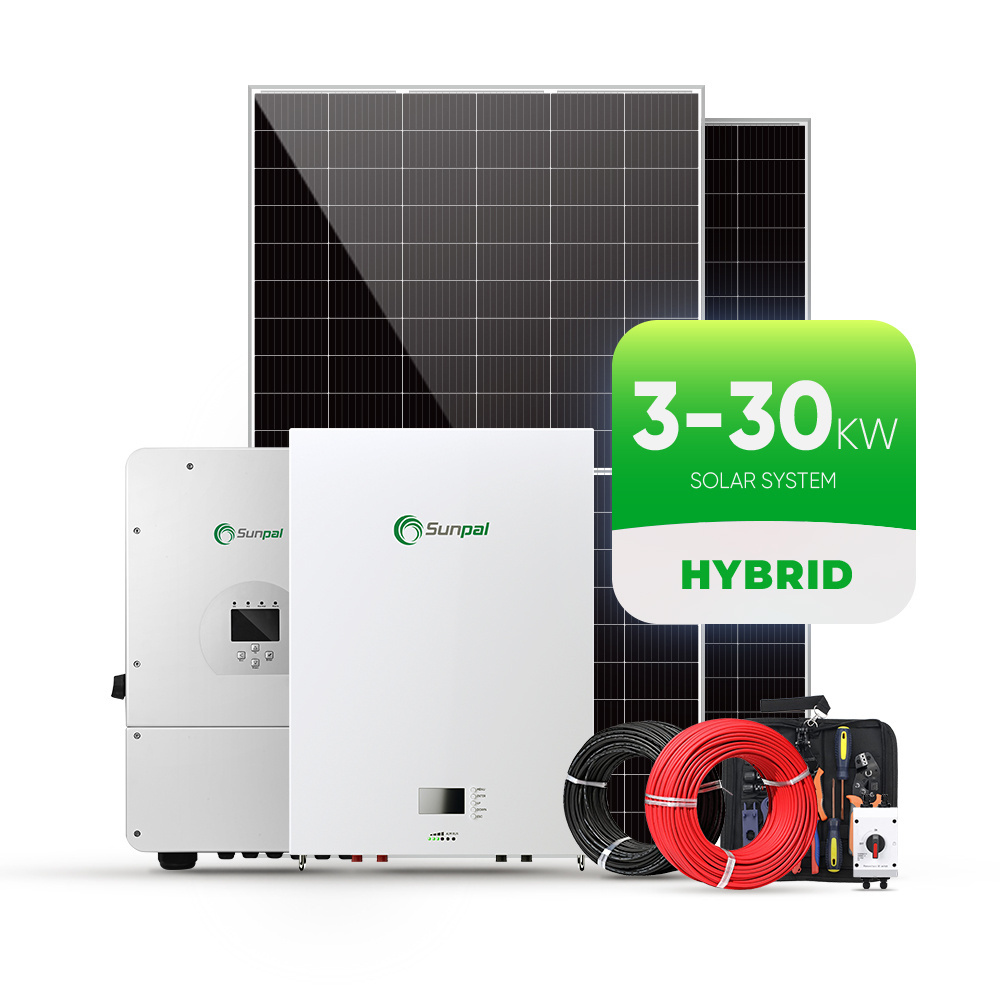

Sunpal High Quality 5KWATTS 8KWATTS 10KWATTS 12KWATTS Solar Panel 400 Watt Completely System

Sunpal High Quality 5KWATTS 8KWATTS 10KWATTS 12KWATTS Solar Panel 400 Watt Completely System

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.43

≥10000 Pieces

US $0.41

≥500000 Pieces

US $0.36

≥1000000 Pieces

US $0.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE

Place of Origin:: Anhui, China

Brand Name:: Sunpal

Output Voltage (V):: 380-415V

Output Frequency:: 50/60HZ

Work Time (h):: 24h

Product name:: Household Hybrid Solar Power System

Specification:: 3KW 5KW 10KW 100Kw

System Type:: Off-grid Hybrid Solar Photovoltaic System

Solar panel:: Mono Crystalline Perc Solar Panel

Inverter:: Single Phase/Split Phase/3Phase

Battery:: Lead Acid/LiFePO4 Lithium Battery

Mounting Structure:: Customzied

Usage:: Home Solar Energy Generation

Packing:: Wooden Box

Technical Support:: Complete Technical Support

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: CE

Place of Origin:: Anhui, China

Brand Name:: Sunpal

Output Voltage (V):: 380-415V

Output Frequency:: 50/60HZ

Work Time (h):: 24h

Product name:: Household Hybrid Solar Power System

Specification:: 3KW 5KW 10KW 100Kw

System Type:: Off-grid Hybrid Solar Photovoltaic System

Solar panel:: Mono Crystalline Perc Solar Panel

Inverter:: Single Phase/Split Phase/3Phase

Battery:: Lead Acid/LiFePO4 Lithium Battery

Mounting Structure:: Customzied

Usage:: Home Solar Energy Generation

Packing:: Wooden Box

Technical Support:: Complete Technical Support

Product Description

How it Works

What's Included

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	21 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set
Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG04LP3-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V

Maximum Power Current: 12.84A

Open Circuit Voltage: 49.75V

Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm

Weight:26.9 kg

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design.

6 time periods for battery charging and discharging.

Max.charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
