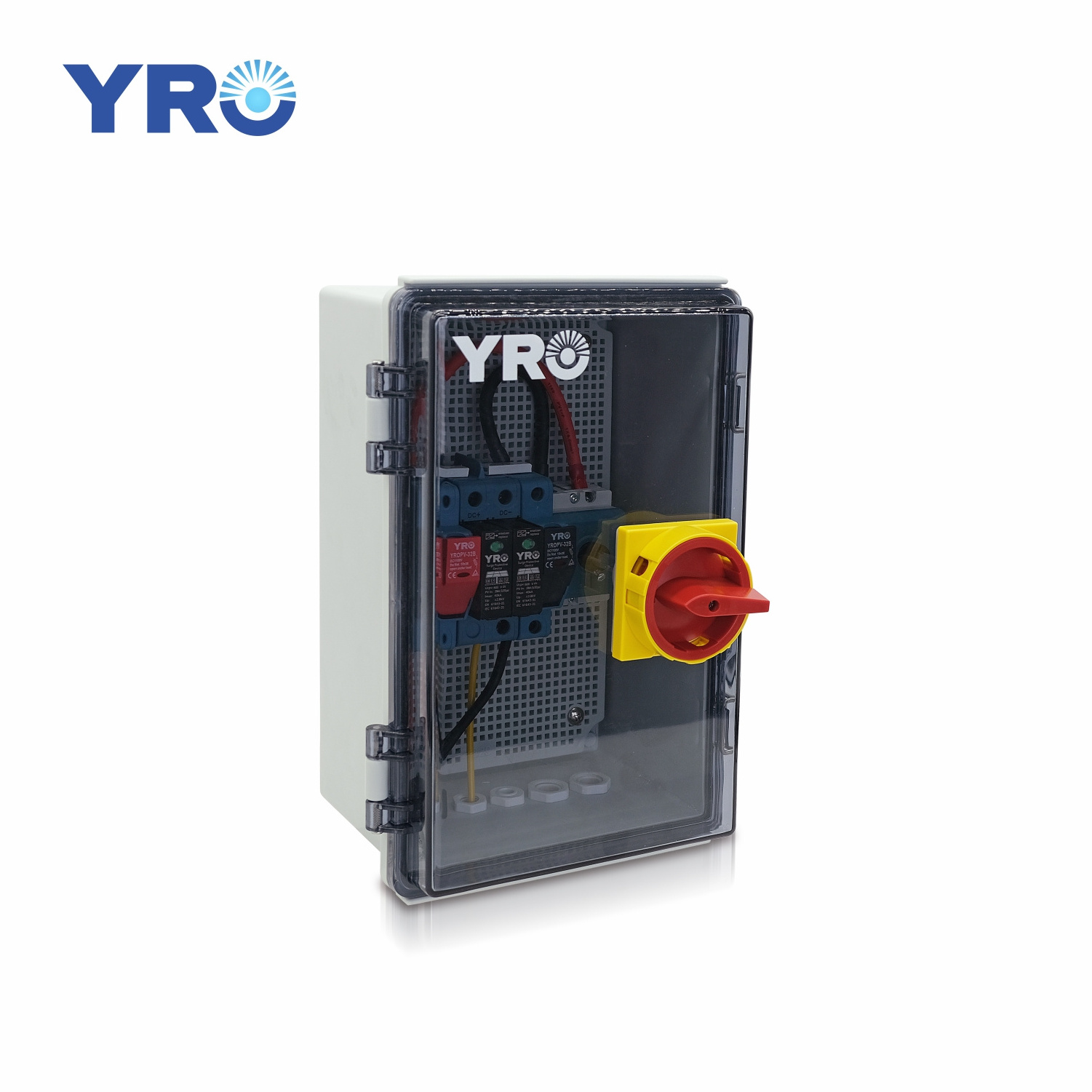

YRO Electric Solar Combiner Box 1 Strings to 36 Strings
600V/1000V/1500V/AFCI/Monitoring Option
YRO
Electric with 10+ years experience of working in the electrical industry offers a full range of solar PV combiner boxes for
residential, commercial, and utility-scale renewable energy projects.
*2 Years warranty
*600V/1000V/1500V
*AFCI Combiner Box
*IP65 Waterproof Enclosure
*Build-in TUV listed DC switchgears
*From 1 to 24 strings customized solutions
*Design and customized at IEC 62109-1 with CE, and TUV certificates.
*Over-voltage, over-load, lightning protection; Real-time detection, long-distance communication.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
PV Array Combiner Box
-
Application:
-
Solar Power System
-
Material:
-
ABS
-
Delivery:
-
3-20 Days
-
MOQ:
-
1 PC
-
Voltage:
-
DC 1000V
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
YRO
-
Model Number:
-
YRHLX
-
Product name:
-
PV Array Combiner Box
-
Application:
-
Solar Power System
-
Material:
-
ABS
-
Delivery:
-
3-20 Days
-
MOQ:
-
1 PC
-
Voltage:
-
DC 1000V
Product Description
Specification
|
Model No.
|
YRHLX
|
|
Input
|
1 string
|
|
Output
|
1 string
|
|
Max Voltage
|
1000V
|
|
Max DC Short Circuit Current Per Input（Isc）
|
15A-30A（Changeable）
|
|
Max Current Output
|
30A
|
|
Enclosure
|
|
|
Material Type
|
Polycarbonate
|
|
Degree of Protection
|
IP66
|
|
Degree of Resistance to Impacts
|
IK10
|
|
Dimension（W*H*D）
|
200*300*150mm
|
|
Input Cable Glands
|
PG09 ,2.5-16mm²
|
|
Output Cable Gland
|
PG21 2.5-16mm²
|
