- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Haitun
-
Model Number:
-
PC-15
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10bar
-
Connection:
-
1'' Male
-
Starting pressure setting:
-
1.5bar 2.2bar
-
Protection rating:
-
IP65
-
Frequency:
-
50 /60 Hz
-
Warranty:
-
1 Year
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
110V/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haitun
-
Model Number:
-
PC-15
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10bar
-
Connection:
-
1'' Male
-
Starting pressure setting:
-
1.5bar 2.2bar
-
Protection rating:
-
IP65
-
Frequency:
-
50 /60 Hz
-
Warranty:
-
1 Year
-
Certification:
-
CE

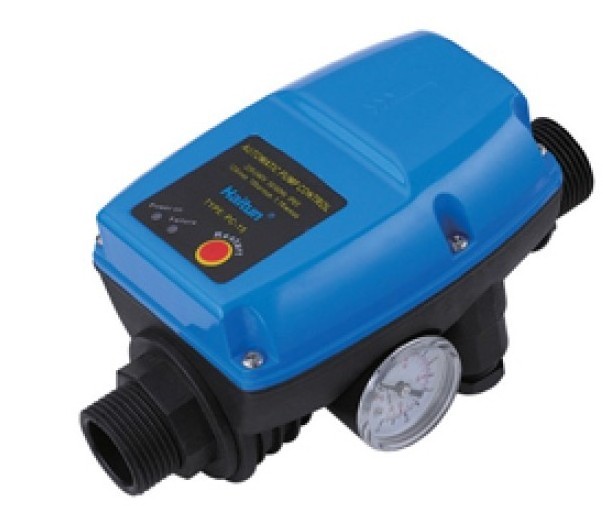

Product Description
1. Automatic control of pump operation and stopping
2. Stop pumping automatically in case of water shortage
3. Auto-start of incoming calls after power failure
4. Forced startup
5. Thread Interface: G 1"External Thread
6. Start-up pressure can be adjusted during installation. Adjustment range: 1.0bar-3.5bar
2. Stop pumping automatically in case of water shortage
3. Auto-start of incoming calls after power failure
4. Forced startup
5. Thread Interface: G 1"External Thread
6. Start-up pressure can be adjusted during installation. Adjustment range: 1.0bar-3.5bar
Technical parameters:
1. Start-up pressure: 1.5 bar or 2.2 bar
2. Maximum rated current: 10A
3. Permissible maximum pressure: 10bar
4. Rated voltage: 110V or 220V
5. Frequency: 50/60HZ
6. Maximum ambient temperature: 40 C
7. Maximum Medium Temperature: 60 C
8. Protection Level: IP65
2. Maximum rated current: 10A
3. Permissible maximum pressure: 10bar
4. Rated voltage: 110V or 220V
5. Frequency: 50/60HZ
6. Maximum ambient temperature: 40 C
7. Maximum Medium Temperature: 60 C
8. Protection Level: IP65
Detailed Images
Related Products
Packing&Shipping
|
BOX SIZE(CM)
|
20.2×10.3×10.3
|
|
CARTON SIZE(CM)
|
42×32.5×21.5
|
|
PCS/CTN
|
12
|
|
N.W.(KGS)
|
6.5
|
|
G.W.(KGS)
|
8.00
|
|
20GP QUANTITIES(PCS)
|
11940
|
Company Introduction
As one of the biggest manufacturers, ZHEJIANG SHENNENG TECHNOLOGY CO.,LTD was established in 1993,our products are pressure
control and water pumps. with the trademark “SHENNENG” and “”HAITUN, which are widely welcomed by all over the world customers.
Over 20 year’s development, our annual production capacity of the pressure control has achieved 5 million sets, the annual
production capacity of water pump has achieved 200 thousand sets, we passed ISO9001:2008 quality management system, our products
won the certificates: CCC(China),TUV(Germany),CE(Europe) ,UL(America) ,CSA(Canada),Rohs(EU).
Our purpose is “QUALITY FIRST”, we have built advanced producing and consummate testing equipment, with professional technical
engineers and managers. Each product was checked before sent out our factory.
ZHEJIANG SHENNENG TECHNOLOGY CO.,LTD has about 50,000 square meters building, Over 33,000 square meters for the production. Now we
have three different factories, More than 500 staffs.
Here we warmly invite you, our friends to visit to our factory and kindly give your comments for our development
control and water pumps. with the trademark “SHENNENG” and “”HAITUN, which are widely welcomed by all over the world customers.
Over 20 year’s development, our annual production capacity of the pressure control has achieved 5 million sets, the annual
production capacity of water pump has achieved 200 thousand sets, we passed ISO9001:2008 quality management system, our products
won the certificates: CCC(China),TUV(Germany),CE(Europe) ,UL(America) ,CSA(Canada),Rohs(EU).
Our purpose is “QUALITY FIRST”, we have built advanced producing and consummate testing equipment, with professional technical
engineers and managers. Each product was checked before sent out our factory.
ZHEJIANG SHENNENG TECHNOLOGY CO.,LTD has about 50,000 square meters building, Over 33,000 square meters for the production. Now we
have three different factories, More than 500 staffs.
Here we warmly invite you, our friends to visit to our factory and kindly give your comments for our development
FAQ
Q1: Are you a factory or just a trading company?
A1:We are a manufacturer that specializes in pressure control pressure switch for more than 30 years. Submersible deep well pump, inverter and inverter pump for more than 10years.
Q2: Is customized service available?
A2: Of course, OEM & ODM is available.
Q3: How can I get Pressure Control quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.
Whatsapp: +86 13758256437
Wechat:+86 18858636697
e-mail: haitun6@snpump.cn
Q4: How long is the warranty?
A4: One year.
Q5: I am buying from another supplier, but need better service, would you match or beat the price I am paying?
A5: We always feel we provide the best service and competitive prices. We would be more than happy to personalize a competitive quote for you, just contact us.
