Quick Details
-
Seals Type:
-
open
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
0.28 kg
-
Basic dynamic load rating:
-
31 kN
-
Basic static Load Rating:
-
20.8 kN
-
Reference speed:
-
11 000 r/min
-
Limiting Speed:
-
15 000 r/min
-
r:
-
1mm
-
Material, bearing:
-
Bearing steel
-
Cage:
-
Non-metallic
-
Ring type:
-
One-piece inner and outer rings
-
Operating Temperature Range:
-
-40 to 120
Quick Details
-
Precision Rating:
-
P6
-
Number of Row:
-
Double row, Single row
-
Brand Name:
-
SYBR
-
Seals Type:
-
open
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
0.28 kg
-
Basic dynamic load rating:
-
31 kN
-
Basic static Load Rating:
-
20.8 kN
-
Reference speed:
-
11 000 r/min
-
Limiting Speed:
-
15 000 r/min
-
r:
-
1mm
-
Material, bearing:
-
Bearing steel
-
Cage:
-
Non-metallic
-
Ring type:
-
One-piece inner and outer rings
-
Operating Temperature Range:
-
-40 to 120
Product Description

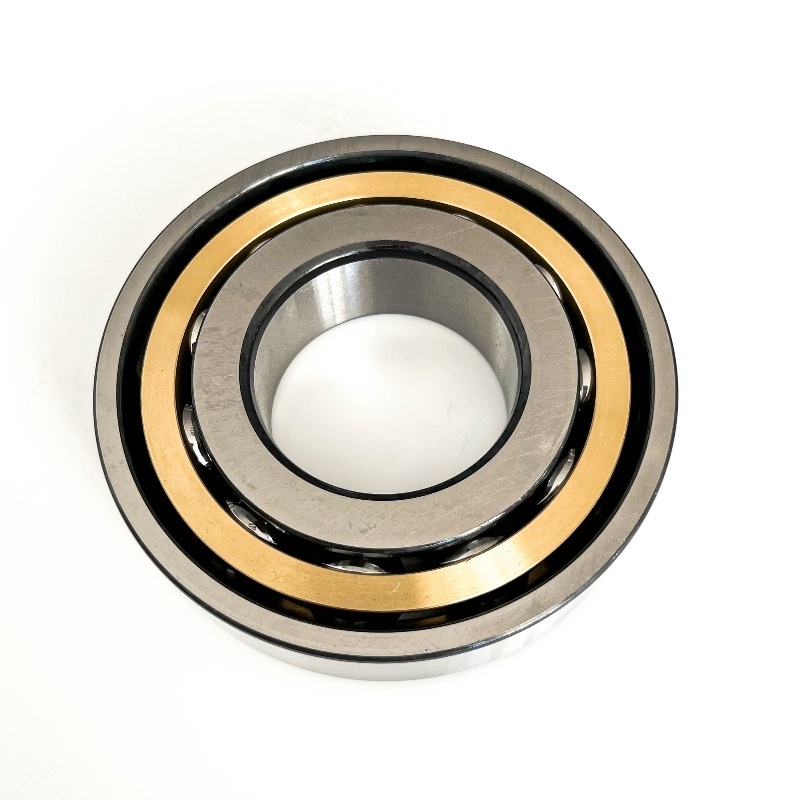

Angular contact ball bearings are nonseparable bearings with a defined contact angle in the radial direction relative to the straight line that runs through the point where each ball makes contact with the inner and outer rings.
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
Features & Benefits
* High-speed capability
* Accommodate relatively high radial loads and large unilateral axial loads
* Accommodate relatively high radial loads and large unilateral axial loads
Specification
|
Contact type
|
Normal contact (two-point contact)
|
|
Number of rows
|
1
|
|
Locating feature, bearing outer ring
|
None
|
|
Ring type
|
One-piece inner and outer rings
|
|
Cage
|
Machined brass
|
|
Matched arrangement
|
No
|
|
Universal matching bearing
|
Yes
|
|
Axial internal clearance
|
Not applicable
|
|
Matched condition (axial clearance/ preload)
|
Axial clearance CB
|
|
Tolerance class
|
Class P6 (P6)
|
|
Material, bearing
|
Bearing steel
|
|
Coating
|
Without
|
|
Sealing
|
Without
|
|
Lubricant
|
None
|
|
Relubrication feature
|
Without
|
|
d
|
35 mm
|
Bore diameter
|
|
D
|
72 mm
|
Outside diameter
|
|
B
|
17 mm
|
Width
|
|
d1
|
≈49.65 mm
|
Shoulder diameter of inner ring (large side face)
|
|
d2
|
≈41.96 mm
|
Shoulder diameter of inner ring (small side face)
|
|
D1
|
≈58.25 mm
|
Shoulder diameter of outer ring (large side face)
|
|
a
|
31 mm
|
Distance side face to pressure point
|
|
r1,2
|
min.1.1 mm
|
Chamfer dimension
|
|
r3,4
|
min.0.6 mm
|
Chamfer dimension
|
|
da
|
min.42 mm
|
Diameter of shaft abutment
|
|
Da
|
max.65 mm
|
Abutment diameter housing
|
|
Db
|
max.67.8 mm
|
Diameter of housing abutment
|
|
ra
|
max.1 mm
|
Radius of fillet
|
|
rb
|
max.0.6 mm
|
Radius of fillet
|
