Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1000*800mm
-
Cutting Thickness:
-
Materials
-
Control Software:
-
CorelDraw/Ruida/Leetro/AutoCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FST
-
Weight (KG):
-
300 KG
-
Core Components:
-
laser tube
-
Products handled:
-
nonmetal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

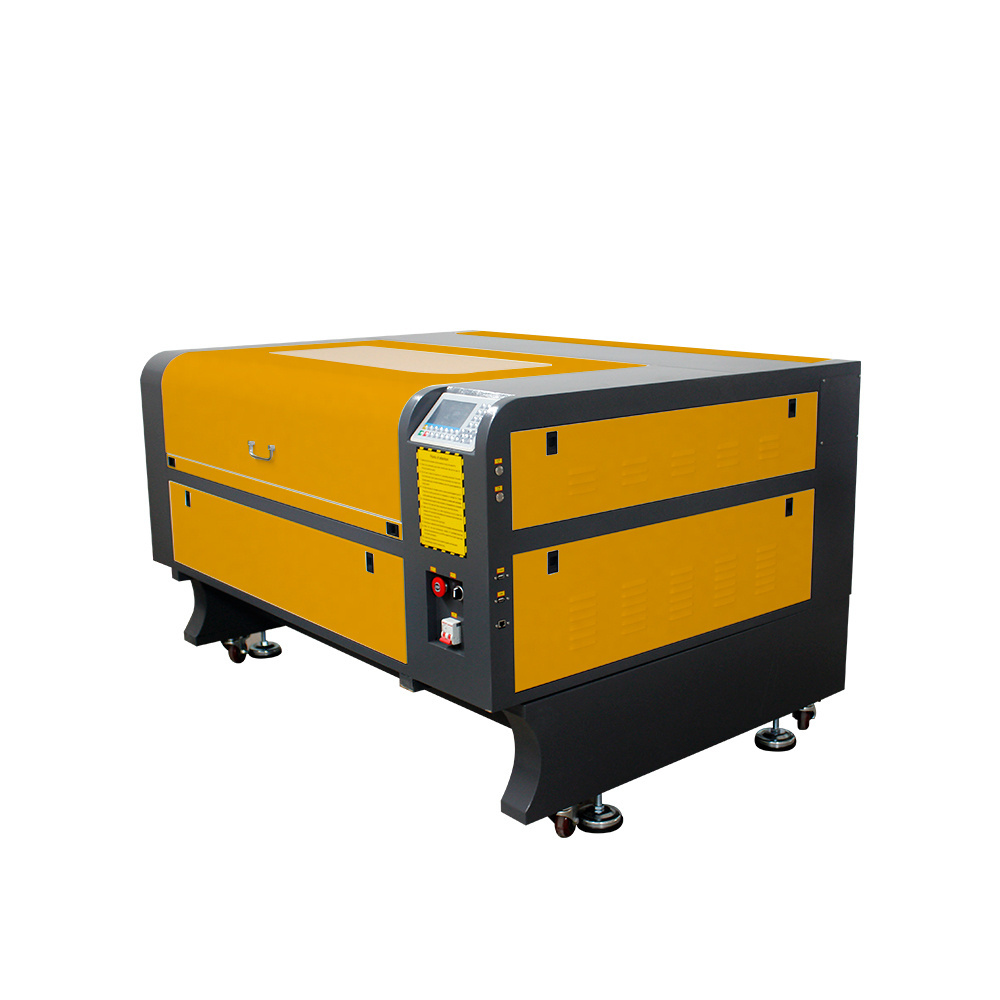

Co2 Laser Cut Machine with Laser cutting System
-
Laser power:
-
60w/80w/100w/130w/150w
-
Keyword:
-
1080 sealed Co2 Laser Cutting Machine
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Function:
-
Cutting Nonmetal Materials
-
Model:
-
1080 Laser Cutting Machine
-
Working area:
-
800*1000mm
-
Type:
-
Water Cooling CO2 Laser Cutting Machines
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1000*800mm
-
Cutting Thickness:
-
Materials
-
Control Software:
-
CorelDraw/Ruida/Leetro/AutoCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FST
-
Weight (KG):
-
300 KG
-
Core Components:
-
laser tube
-
Products handled:
-
nonmetal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Co2 Laser Cut Machine with Laser cutting System
-
Laser power:
-
60w/80w/100w/130w/150w
-
Keyword:
-
1080 sealed Co2 Laser Cutting Machine
-
Laser tube:
-
Sealed CO2 Glass Tube
-
Function:
-
Cutting Nonmetal Materials
-
Model:
-
1080 Laser Cutting Machine
-
Working area:
-
800*1000mm
-
Type:
-
Water Cooling CO2 Laser Cutting Machines
Product description
Product Paramenters
|
Model
|
FST-1080
|
|
Worktable
|
Honeycomb/Aluminum knife
|
|
Eneraving area
|
1000*800mmm
|
|
Laser power
|
60W/80W/100W/130W/150W etc.
|
|
Engraving speed
|
500mm/s Max
|
|
Cutting speed
|
60mm/s
|
|
Cutting Depth(Acrylic)
|
0-15mm(acrylic)
|
|
Up and down work table
|
up and down 300mm adjustable
|
|
Minimum shaping character
|
1x1mm
|
|
Power supply
|
220v(or 110v) +/- 10%
|
|
Resetting positioning
|
Accuracy less than or equal to 0.01mm
|
|
Water protecting
|
Yes
|
|
Operating Temperature
|
0-45℃
|
|
Operating humidity
|
35-70℃
|
|
Graphic format supported
|
PLT/DXF/BMP/JPG/GIF/PNG/TIF
|
|
Operation System
|
Windows XP/Vista/win7/win8/win10
|
|
Software
|
Ruida rdworksv8
|
|
water cooling
|
Yes
|
|
Laser tube
|
Sealed Co2 glass laser tube
|
|
machine size
|
1570mm*1180mm*1060mm
|
Application Industry:
Applicable materials:
Acrylic,leather,wood,rubber,double-color board,MDF,plywood,bamboo,paper,cardboard,marble,granite,stone,glass,fabric,textile,coated metal,painted metal,anodised aluminum etc.
Applicable industries:
Arts and crafts advertising,decoration,wood working,leather manufacturing,packaging,printing,mould making,furniture,clothing and brand making etc
|
Applicable material for reference
|
|
|
|
|
|
|||||
|
Material
|
Engrave
|
Cut
|
Material
|
Engrave
|
Cut
|
|||||
|
Natural wood
|
√
|
√
|
Paper
|
√
|
√
|
|||||
|
Acrylic
|
√
|
√
|
Mylar
|
√
|
√
|
|||||
|
Glass
|
√
|
×
|
Press board
|
√
|
√
|
|||||
|
Double color plate
|
√
|
√
|
Rubber
|
√
|
√
|
|||||
|
Bamboo
|
√
|
√
|
Plywood
|
√
|
√
|
|||||
|
MDF
|
√
|
√
|
Fiberglass
|
√
|
√
|
|||||
|
Cloth
|
√
|
√
|
Painted metal
|
√
|
√
|
|||||
|
Leather
|
√
|
√
|
Plastic
|
√
|
√
|
|||||
|
Marble
|
√
|
×
|
Ceramic
|
√
|
×
|
|||||
|
Matte boards
|
√
|
√
|
Coated Metal
|
√
|
×
|
|||||
|
Stone
|
√
|
×
|
Other materials
|
Inquire us, we will test for you
|
|
|||||
|
Cutting thickness of different laser power for reference
|
|
|
|
|||
|
Laser power(W)
|
Acrylic(mm)
|
Plywood(mm)
|
MDF(mm)
|
|||
|
40W
|
3
|
2
|
1.5
|
|||
|
60W
|
8
|
5
|
3
|
|||
|
80W
|
12
|
8
|
6
|
|||
|
100W
|
15
|
12
|
9
|
|||
|
150W
|
25
|
20
|
15
|
|||
*The above data is for reference only
