Quick Details
-
Power:
-
11-15KW
-
Dimension(L*W*H):
-
100*50*200mm
-
Factory direct sales:
-
with competitive price
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CGY
-
Weight (KG):
-
3600 KG
-
Power:
-
11-15KW
-
Dimension(L*W*H):
-
100*50*200mm
-
Factory direct sales:
-
with competitive price
-
Certification:
-
ce

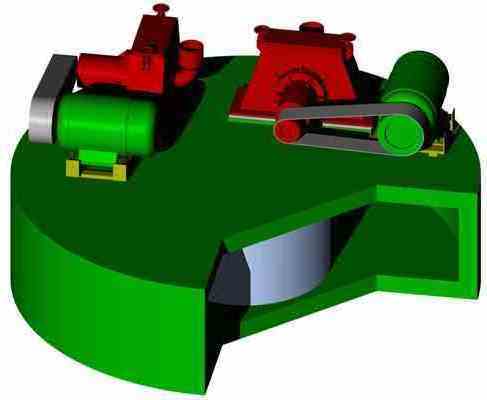

Rotary Table Shot Blast Wheel Machine
Product Technology Data:
Rotary Table Shot Blast Machine Technology Data:
| Model | MDT2-P11-1 | ||
| MDT2-P11-1E | MDT2-P11-1 H | ||
| N O. | Machine Parameter Configuration | Economical | High Quality |
| 1 | Application | Small and medium-sized/mold/forging and casting | |
| 2 | Size:L*W*H(mm) | 5750*3900*4700 | 5750*3900*4700 |
| 3 | Single Turntable Load(kg) | 200 | 200 |
| 4 | Parts Maximum Height (mm) | 400 | 400 |
| 5 | Turntable Diameter(mm) | 1200 | 1200 |
| 6 | Produce Speed(Batch/min) | 10-15 | 5-10 |
| 7 | Dust Emision(mg/m³) | ≤30 | ≤20 |
| 8 | Noise(db) | ≤85 | ≤80 |
| 9 | Total Power(kw) | 21.5 | 23 |
| 10 | Compressed Air Loss(m³/min) | 0.5 | 0.5 |
| NO. | Machine Parameter Configuration | Economical | High Quality |
| 1 | Shot Room Full Manganese Steel | YES | |
| 2 | Double Turntable | ||
| 3 | Spiral Pusher Alarm System | ||
| 4 | Elevator Alarm System | ||
| 5 | DC-6 Cartridge Filter | YES | NO |
| 6 | WDC-80 Wet Dust Collector | NO | YES |
| 7 | Q034-11kw Impeller Head | YES | NO |
| 8 | P11 Impeller Head | NO | YES |
| 9 | Steel Shot Flow Semi-Automatic Control System | YES | NO |
| 10 | Steel Shot Flow Automatic Control System | NO | YES |
| 11 | Impeller Head Frequency Adjust Speed | YES | |
| 12 | Electrical Cabinet Air Condition | NO | |
| 13 | Sound Insulation Room | FOR CHOOSING | |
| 14 | Storage Bin Alarm System | NO | YES |
| 15 | Tool (1 Set) | YES | |
| 16 | Followed Accessories | FOR CHOOSING | |
Product Description:
Rotary Table Shot Blast Machine Description:
1. Shot blasting is a method used to clean, strengthen (peen) or polish metal.
2. Shot blasting is used in almost every industry that uses metal, including aerospace, automotive, construction,foundry,
shipbuilding rail, and many others. There are two technologies used: wheel blasting or air blasting.
Product Advantage:
Rotary Table Shot Blast Machine Advantage:
1.Using full manganese steel body, use life is 20 years
2.Using advanced wet dust collector system
3.Using crushed shot secondary separation system
4.Using high performance P series impeller head (die steel CNC machining + vacuum heat treatment)
5.Steel Shot Flow Automatic Control System
6.Using 3 layers seal structure for machine body,without any Shot leaked
7.Steel Shot Automatic Recycle Fault Detection Alarm System
Rotary Table Shot Blast Machine Comapred Advantage:
1.Environmental indicators reach the European standards
2.The efficiency is increased by 30%
3.Spare parts usage is reduced by 80%
4.Maintainability is increased by 90%
5.Automation degree increased by 50%
6.Integrated design, more convenient maintenance
Product Application:
Rotary Table Shot Blast Machine Application:
1. Wind power gear , fire power gear.
2. Mine machine gear box.
3. Heavy gear.
4.Metal, including aerospace, automotive, construction,foundry, shipbuilding rail, and many others.
