Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Artechcnc
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight (KG):
-
1100
-
Warranty:
-
1 year
-
Certification:
-
CE
-
Product name:
-
Sofa processing auto cnc router wooden bed making machine
-
Z axis transmission:
-
ball screw
-
X Y axis transmission:
-
gear rack
-
Spindle:
-
6kw air cooling spindle
-
Working area:
-
1300x2500x200mm
-
Control system:
-
NC Studio
-
Inverter:
-
Fuling
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Servo Motor
-
Table:
-
vacuum table
Quick Details
-
Working Table Size(mm):
-
1300x2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Artechcnc
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1300x2500x200mm
-
Weight (KG):
-
1100
-
Warranty:
-
1 year
-
Certification:
-
CE
-
Product name:
-
Sofa processing auto cnc router wooden bed making machine
-
Z axis transmission:
-
ball screw
-
X Y axis transmission:
-
gear rack
-
Spindle:
-
6kw air cooling spindle
-
Working area:
-
1300x2500x200mm
-
Control system:
-
NC Studio
-
Inverter:
-
Fuling
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Motor:
-
Servo Motor
-
Table:
-
vacuum table

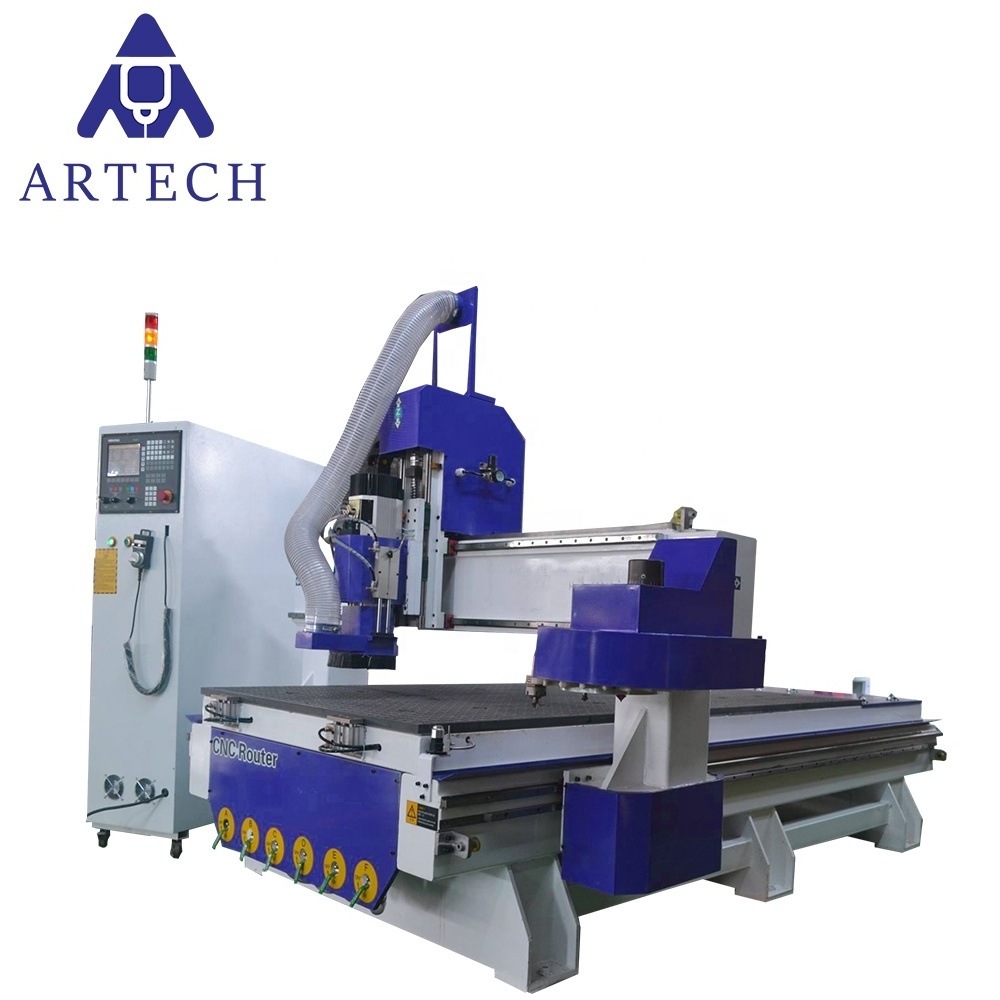

Sofa processing auto cnc router , wooden bed making machine
Feature of atc cnc router:
1. Ball screw for Z axis.It's stable running,precision and fast.
2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3. With NC studio control system,easy to learn design software,just install it onto your computer and start creating paterns.
4. This atc wood cnc router designed with risk type auto tool changer.Differents tool can be installed in tool holder.Spindle working one by one,more convenient to change the tool,high efficiency and save time.
5. Heavy duty frame and gantry,very strong and stability.
|
Parameters |
Standard Specifications |
|
X,Y,Z Working Area |
1300*2500*200mm auto cnc router |
|
Spindle Power |
ATC air cooling spindle |
|
X,Y,Z Traveling Positioning Accuracy |
±0.01/2000mm |
|
Table |
vacuum absorbtion table or T.slot table |
|
vacuum pump |
air cooling 5.5kw pump |
|
X,Y,Z Rail and Transmission |
Taiwan TBI Ball Screw and gear rack |
|
Max. Rapid Travel Rate |
50000mm/min |
|
Max. Working Speed |
30000mm/min |
|
Spindle Speed |
18000RPM |
|
Drive Motors |
servo motor and drivers or stepper motor and drivers |
|
Working Voltage |
AC380V/3PH/50Hz or 220V |
|
Command Language |
G Code |
|
Operating System |
NC stduio or DSP/Mach3/Syntec |
|
Software Compatibility |
Option:Type3, Ucancam, Artcam, solidworks,etc. |
|
Running Environment |
Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
|
Parameters |
Standard Specifications |
|
Oil system |
Handel |
|
Frame structure |
Welding structure |
|
Collect |
ER32 collect |
|
Dust collector |
1 pieces |
|
wireless wheel |
Yes
|
ATC cnc router Detail Image:
Get more other cnc machine information
Application of atc cnc router:
1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
4. Metal industry:carving aluminum,copper,stainless steel and so on.
Package and Delivery of atc cnc router:
Package Detail: 1.Outside package:Standard plywood package.
2.Inner package:Stretchy film and plastic film for humidity.
And we can package according to your requests.
Delivery Detail: For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients' specific requirements,it will be 15 to 30 working days after payment.
