Quick Details
-
Model Number:
-
YCST-NA125.2-S
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.85kg
-
Operating Temperature[°C]:
-
-40℃-90℃
-
Electric Energy:
-
66.56 Wh
-
Nominal Voltage:
-
12.4V
-
Nominal Capacity:
-
5.2AH
-
Specific Energy:
-
66.48Wh
-
Cycle Life:
-
≥3000 cycles @1C 80%DOD
-
Size:
-
112*69*106mmor customize
-
CCA:
-
150
-
OEM:
-
Acceptable
-
Warranty:
-
3years
-
Chargeable:
-
Yes
Quick Details
-
Battery Size:
-
12502
-
Battery Capacity:
-
66.48Wh
-
Brand Name:
-
Yichen
-
Model Number:
-
YCST-NA125.2-S
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.85kg
-
Operating Temperature[°C]:
-
-40℃-90℃
-
Electric Energy:
-
66.56 Wh
-
Nominal Voltage:
-
12.4V
-
Nominal Capacity:
-
5.2AH
-
Specific Energy:
-
66.48Wh
-
Cycle Life:
-
≥3000 cycles @1C 80%DOD
-
Size:
-
112*69*106mmor customize
-
CCA:
-
150
-
OEM:
-
Acceptable
-
Warranty:
-
3years
-
Chargeable:
-
Yes
Product Description
12V 40Ah Sodium Ion Battery

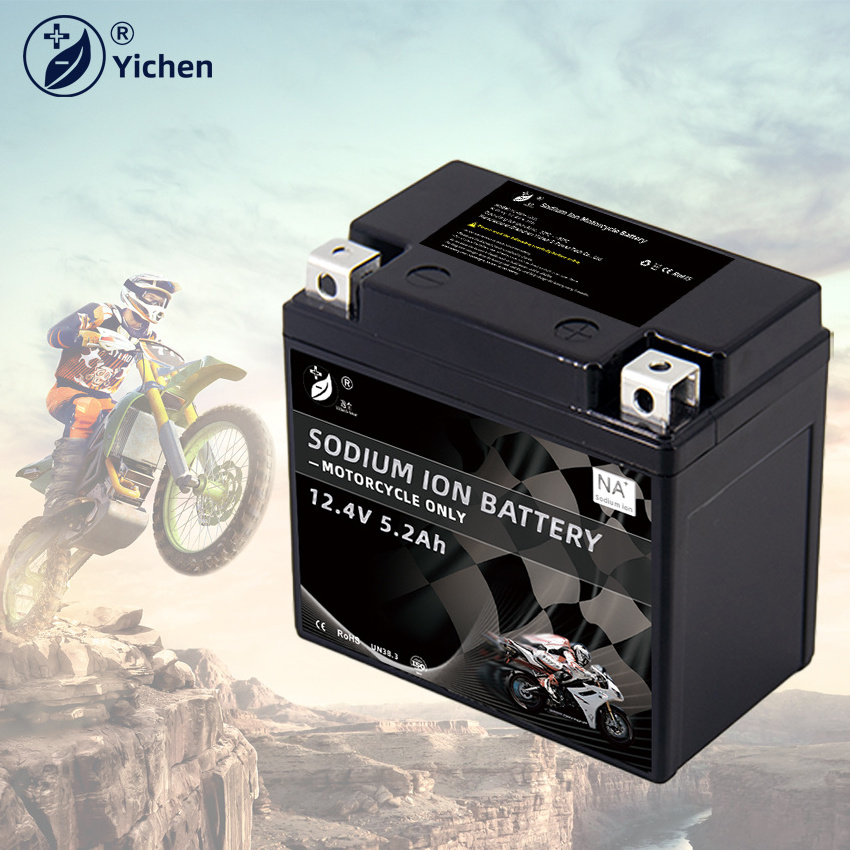

12.4V 5Ah 5200mah Sodium Ion Motorcycle Battery
【Excellent Performance】
The life cycle of our sodium ion motorcycle battery: 2000, and the service life is as long as 3 years.
Lightweight (0.8kg), the weight is only one-third of the lead-acid battery, the energy density is 3 to 5 times that of lead-acid
battery, working temperature: discharge: -30 to 90℃.
【Safety and Environmental Protection
】The use of lead-acid batteries will
cause heavy metal pollution to the natural environment, while lithium batteries will not. Choosing lithium batteries helps protect
the environment.
【Compatibility
】Our 12v sodium ion battery can replace the following motorcycle battery models:
YTX7A-BS,YTX9-BS，YTZ10S,YT12A-BS，YTZ10S,YT12A-BS. It can also be used as a starter to start a small motorcycle.
Specification
|
Electrical Characteristics |
Model number
|
YCST-NA12052-S
|
|
|
Nominal Voltage
|
12.4 V
|
|
|
Nominal capacity
|
5200mah
|
|
|
Energy
|
64480mWh
|
|
|
Internal Resistance
|
≤ 30mΩ
|
|
|
Cycle life
|
≥3000 cycles @ 60%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100% @0.5C
|
|
|
Efficiency of Discharge
|
96~99% @1C
|
|
Standard Charge |
Charge Cut-off Voltage
|
15.8V ±0.2
|
|
|
Charge Mode
|
0.2C to 15.8V, then 15.8V,charge current to 0.02C (CC/CV)
|
|
|
Standard Charge Current
|
0.2C
|
|
|
Max. Charge Current
|
3C
|
|
Standard Discharge |
Continuous Current
|
1C
|
|
|
Max. Pulse Current
|
10C
|
|
|
Discharge Cut-off Voltage
|
6V
|
|
Environmental |
Charge Temperature
|
-10°C~45°C @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-50°C~90°C @60±25% Relative Humidity
|
|
|
Storage Temperature
|
-10℃ to 60 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP67
|
|
Mechanical |
Plastic Case
|
ABS
|
|
|
Dimensions (mm)
|
113*69*106mm(YT5)
|
|
|
Weight
|
0.8 kg
|
|
|
Terminal
|
Customize
|
|
Function
|
|
Support Customization
|
|
Color
|
|
Black
|
Related Products
Features and Applications
Why choose Yichen Sodium Ion Battery?
* Na ion batteries have better high and low temperature performance. The high temperature discharge capacity (55°C and 80°C) exceeds 100% of the rated capacity, and the low temperature -40°C discharge capacity exceeds 70% of the rated capacity. And it can realize 0.1C charging and discharging at low temperature -20°C, and its charging and discharging efficiency is close to 100%,which has better low temperature charging performance than lithium batteries.
* Na ion batteries have better rate performance. The Stokes diameter of sodium ions is smaller than that of lithium ions, and the electrolyte with the same concentration has higher ionic conductivity than lithium salt electrolytes. The solvation energy of sodium ions is lower than that of lithium ions, resulting in faster kinetics and interfacial diffusion properties in the electrolyte.
