Quick Details
-
Ice storage capacity:
-
30kg, 600kg
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
brown
-
Weight:
-
110 KG
-
Raw Material:
-
Liquid CO2
-
Dry Ice Size (mm):
-
3 ~ 14
-
Dry Ice Density (kg/m3):
-
>1500
-
Conversion Rate:
-
> 40%
-
Dry Ice Output (kg/h):
-
25~30
-
Motor Power (Kw):
-
2.2 (380V/50Hz or 220V/50Hz)
-
Run:
-
Hydraulic
-
Dimension (L*W*H mm):
-
700*435*680
-
Total Weight (kg):
-
110
Quick Details
-
Ice Shape:
-
dry ice
-
Voltage:
-
380V/50Hz or 220V/50Hz
-
Power:
-
2.2kw
-
Ice storage capacity:
-
30kg, 600kg
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
brown
-
Weight:
-
110 KG
-
Raw Material:
-
Liquid CO2
-
Dry Ice Size (mm):
-
3 ~ 14
-
Dry Ice Density (kg/m3):
-
>1500
-
Conversion Rate:
-
> 40%
-
Dry Ice Output (kg/h):
-
25~30
-
Motor Power (Kw):
-
2.2 (380V/50Hz or 220V/50Hz)
-
Run:
-
Hydraulic
-
Dimension (L*W*H mm):
-
700*435*680
-
Total Weight (kg):
-
110
Product Paramenters
|
Model No.
|
BR-KBM-30
|
|
Brand
|
brown
|
|
Weight
|
110kgs
|
|
Raw Material
|
Liquid CO2
|
|
Rated power
|
2.2kw
|
|
Power supply
|
380V/50Hz or 220V/50Hz
|
|
Dry Ice Size
|
3 ~ 14mm
|
|
Dry Ice Density
|
>1500kg/m3
|
|
Dry Ice Output
|
25~30kg/h
|
|
Oil Tank Volume
|
20L
|
|
Dimension (L*W*H ):
|
700*435*680mm
|
Our Advantages
1. Desktop cabinet-type chassis design, using stainless steel shell, clear and beautiful appearance; it occupies less than 1/3 of its counterparts, has no exposed parts, and is easy to dustproof and clean;
2. The hydraulic system is advanced in design and imported components are selected. No external cooling is required, and the hydraulic oil temperature is lower than 40 degrees, so the hydraulic components have a long life and can operate continuously for 24 hours;
3. By changing different molds, dry ice pellets of various specifications can be produced;
4. There are casters at the bottom of the machine, making it easy to move;
5. The operating sound is not as loud as that of a washing machine, so it does not affect the work of others. Low power, both lighting electricity and power electricity can be used;
6. The product has added a device that can adapt to unqualified carbon dioxide in the process design, and can still operate normally when the water content seriously exceeds the standard;
2. The hydraulic system is advanced in design and imported components are selected. No external cooling is required, and the hydraulic oil temperature is lower than 40 degrees, so the hydraulic components have a long life and can operate continuously for 24 hours;
3. By changing different molds, dry ice pellets of various specifications can be produced;
4. There are casters at the bottom of the machine, making it easy to move;
5. The operating sound is not as loud as that of a washing machine, so it does not affect the work of others. Low power, both lighting electricity and power electricity can be used;
6. The product has added a device that can adapt to unqualified carbon dioxide in the process design, and can still operate normally when the water content seriously exceeds the standard;
Product Description
1. Application of granular dry ice:

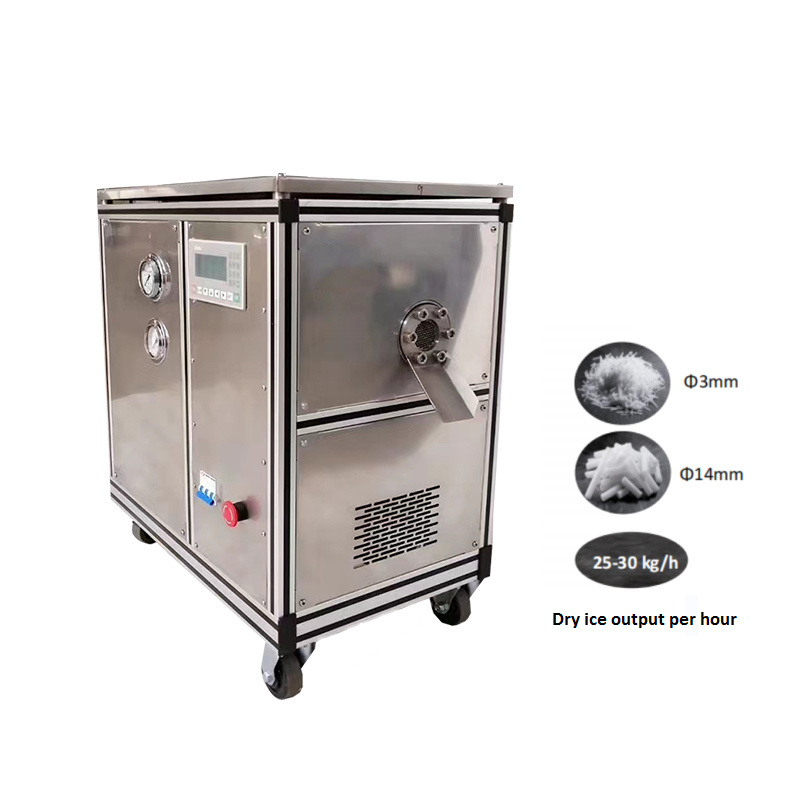

1) This mini small dry ice machine can produce high density granular dry ice 3mm ~ 14mm.
2) The 3mm dry ice rice is mainly used for dry ice jet blasting cleaning in the industry of tire mold, car interior mold,
precision casting, printing machine, substation, engine maintenance, hotel kitchenware etc.
3) Larger dry ice pellet is mainly used for catering entertainment wedding cloud&fog effect, food cooling purpose and logistics refrigerated transport.
1) This mini small dry ice machine can produce high density granular dry ice 3mm ~ 14mm.
2) The 3mm dry ice rice is mainly used for dry ice jet blasting cleaning in the industry of tire mold, car interior mold,
precision casting, printing machine, substation, engine maintenance, hotel kitchenware etc.
3) Larger dry ice pellet is mainly used for catering entertainment wedding cloud&fog effect, food cooling purpose and logistics refrigerated transport.
2. Main Configurations of brown Dry Ice Making Machine
1) Motor: Taiwan brand
2) Oil Pump: Japan brand
3) Raw material control: Europe brand
3) Hydraulic components: Japan brand
5) PLC and electrical components: Korea and Germany brand
3. Features of brown Dry Ice CO2 Production Machine
1) Desktop type design with stainless steel shell, only 1/3 land occupation than other similar dry ice making machine.
2) Full automatic control system and advanced hydraulic system with famous foreign brand components used, one-button operation.
3) Modern text screen with two languages at least, easy and simple.
4) Special design the dry ice maker can still keep good running when the liquid CO2 water content is high.
5) Patented recycle technology of exhaust CO2 gas to cool hydraulic system to make sure working temperature of dry ice pelletizer
below 40 degree, the components lifetime are longer and the dry ice machine can run 24 hours continuously.
6) Equipped with trundles, easy to move.
7) Different size of dry ice pellets can be produced by changing dry ice forming mold & die.
8) This dry ice maker is over 10 years improved, very reliable.
1) Motor: Taiwan brand
2) Oil Pump: Japan brand
3) Raw material control: Europe brand
3) Hydraulic components: Japan brand
5) PLC and electrical components: Korea and Germany brand
3. Features of brown Dry Ice CO2 Production Machine
1) Desktop type design with stainless steel shell, only 1/3 land occupation than other similar dry ice making machine.
2) Full automatic control system and advanced hydraulic system with famous foreign brand components used, one-button operation.
3) Modern text screen with two languages at least, easy and simple.
4) Special design the dry ice maker can still keep good running when the liquid CO2 water content is high.
5) Patented recycle technology of exhaust CO2 gas to cool hydraulic system to make sure working temperature of dry ice pelletizer
below 40 degree, the components lifetime are longer and the dry ice machine can run 24 hours continuously.
6) Equipped with trundles, easy to move.
7) Different size of dry ice pellets can be produced by changing dry ice forming mold & die.
8) This dry ice maker is over 10 years improved, very reliable.
Dry ice manufacturing process
Production Suggestion
1) Find a Gas Company or Station Who has big liquid carbon dioxide tank and sells liquid CO2.
2) Buy a suitable liquid CO2 tank or dewar bottle.
3) Buy a dry ice making machine.
4) Buy some dry ice storage boxs.
1) Find a Gas Company or Station Who has big liquid carbon dioxide tank and sells liquid CO2.
2) Buy a suitable liquid CO2 tank or dewar bottle.
3) Buy a dry ice making machine.
4) Buy some dry ice storage boxs.
