Partition wall installation machine full hydraulic concrete wall panel lifting and installation machine

Partition wall installation machine full hydraulic concrete wall panel lifting and installation machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: New Product 2022

Weight (KG):: 650 kg

Product name:: wall panel lifting and installation machine

Application:: Installation wall panels

Power supply:: 48v-60V

Lifting capacity:: 400KGS

Color:: yellow, green

Lifting height:: 3.35M

Wall panel thickness:: 75-200mm

Wall panel height:: 7.2 meters

wall panel width:: 0.6meters

Machine dimension:: 1650*850*1550mm

Quick Details

Warranty:: 1 Year

Place of Origin:: Henan, China

Brand Name:: HENAN WISHES

Marketing Type:: New Product 2022

Weight (KG):: 650 kg

Product name:: wall panel lifting and installation machine

Application:: Installation wall panels

Power supply:: 48v-60V

Lifting capacity:: 400KGS

Color:: yellow, green

Lifting height:: 3.35M

Wall panel thickness:: 75-200mm

Wall panel height:: 7.2 meters

wall panel width:: 0.6meters

Machine dimension:: 1650*850*1550mm

Product Overview

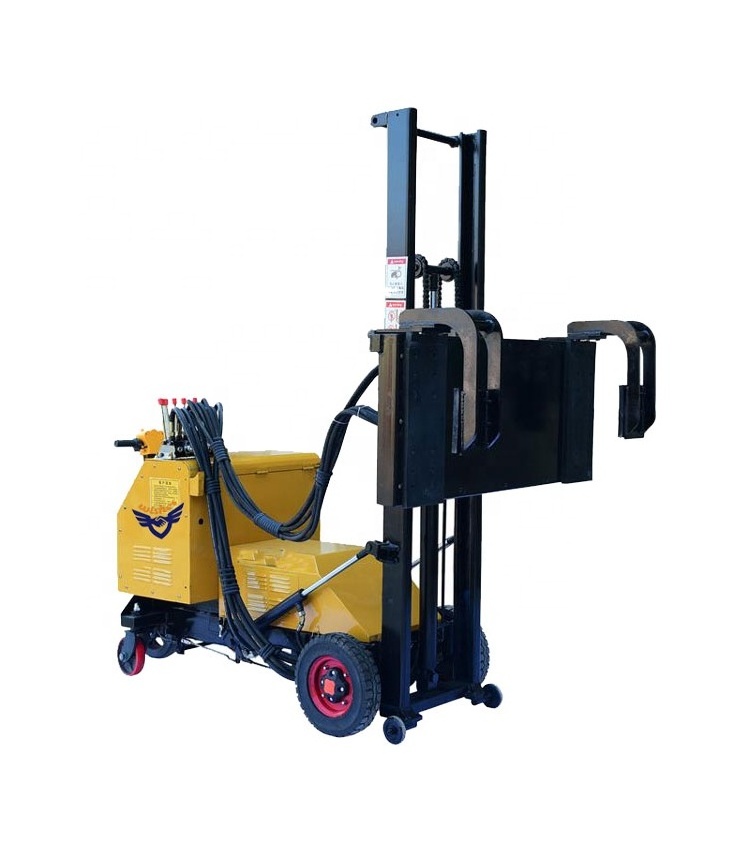

Hydraulic Wall Panel Installation Machine

The machine can automatically pick up wall panels ,moves the wall panels ,lift,rotate, and then put the wall panels in a right installation position. The machine work for the common wall panels installtion , such as acotec wall panels, EPS wall panels, Alc wall panels so on.

FEATURES AT A GLANCE

A dvantages of wall panel installing machine

* Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.
* Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the
installation and splicing at the same time.
* Improve work efficiency, save labor
* Ensure the personal safety of installation workers

PRODUCT CONFIGURATION

These hydraulic handles control the tightening, lifting, flipping, tilting back and forth, and side shifting of the wall panels respectively.

The hydraulic cylinder produces high-pressure oil to operate the five-link hydraulic directional valve to control the lifting,support, left and right side shift, 360- degree rotation, and the hydraulic clamp of the wall panel installation machine.

The 360-degree rotating device enables the panels to be installed horizontally or vertically. So the wall panel installation
machine works more flexibly

PRODUCT SPECIFICATIONS

Model	Max. Panel length	Max. Panel Weight	Machine Dimesnion	Machine Weight	Remark
WZY-3	3.3 meters	350KGs	16008501500mm	600KGS
WZY-4	4 meters	400KGS	16008501650mm	650KGS
WZY-4A	4 meters	400kgs	16008001450mm	600Kgs	Upper and lower panel jointing functions
WZY-5	5 meters	450KGS	185010501780mm	800KGS
WZY-6	6metrers	500KGS	185010501810mm	1000KGS
WZY-6A	6 meters	500KGS	185010501810mm	1000KGS	Upper and lower panel jointing functions
WZY-7	7.2 meters	750KGS	280012001800mm	1200KGS	Upper and lower panel jointing functions

Successful Project

SALES AND SERVICE NETWORK

FAQ

Q1：What type of wall panel your machine can work fore ?

A1： Acotec panel ,EPS panels, ALC panels, AAc panels etc.

Q2: What is your delivery time ?
A2：0-15days depend on the model of machines ordered
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container

For more questions, please inquiry to us , we will reply you immediately .
