Quick Details
-
Model Number:
-
HR-KA80J/H-600b
-
Voltage:
-
Three-phase, 380V, 50Hz
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Honray
-
Model Number:
-
HR-KA80J/H-600b
-
Voltage:
-
Three-phase, 380V, 50Hz
Products Description

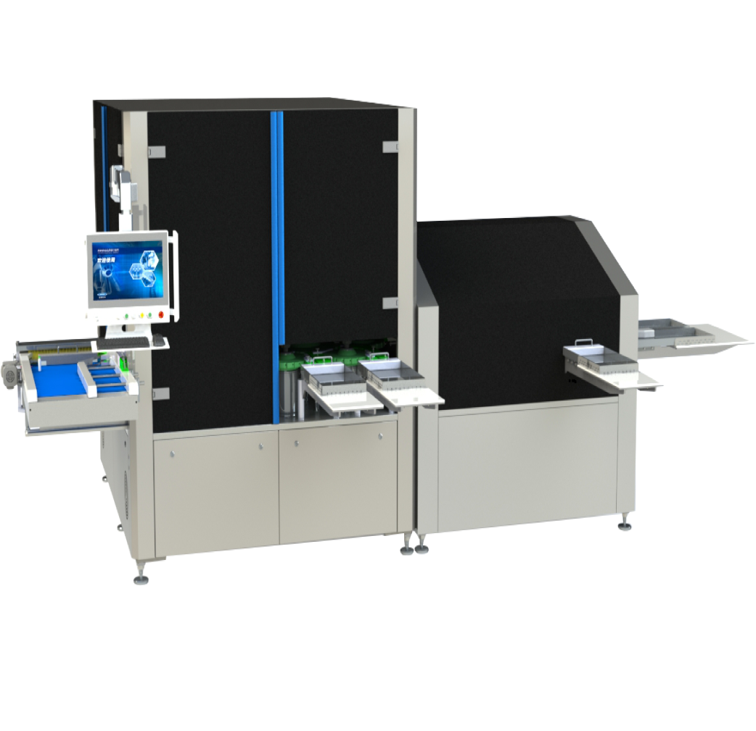

Chengdu Honray Automatic Intelligent Visual Inspection Machine For Small Volume Ampoule
Product Overview: This machine adopts the principle of machine vision to identify and detect visible foreign objects and defects. When inspecting inside the liquid, the inspected product is braked at rest at high speed rotation, and the industrial camera continuously takes pictures to obtain multiple images, which are processed by our self-developed vision inspection algorithm to determine whether the inspected product is qualified or not; when inspecting the appearance, 360° dead angle-free pictures are taken, which are processed by vision algorithm to identify the appearance defects. The detection result is communicated to the PLC control system through the Ethernet, which is configured according to the reject lane type to automatically reject unqualified products.
Main Features
1.
Automatic Machine:
On-line or off-line inspection, automatic feeding, automatic inspection, automatic rejection of
unqualified products.
2.
Two Rejection Lanes:
Two unqualified product lanes, rejection types can be configured.
3.
Standard Design:
The overall equipment design and manufacturing are in accordance with GMP and GAMP standards.
4.
Record Function:
The whole process of testing is traceable and the data is stored automatically.
Specifications
|
Name
|
Chengdu Honray Automatic Intelligent Visual Inspection Machine For Small Volume Ampoule
|
|
Model
|
HR-KA80J/H-600b
|
|
Application Range
|
2ml-20ml ampoules
|
|
Detection Items
|
Foreign matter in liquid, bottle defects (cracks, black spots), cap defects (edges, crooked cap, incomplete aluminum cap, etc.), liquid loading capacity |
|
Power
|
about 8KW |
|
Voltage
|
Three-phase five-wire system 380V±10% AC |
|
Compressed Air Consumption
|
0.5-0.7Mpa 70I/min
|
|
Maximum Production Capacity
|
36000pcs/h
|
