MKL395 biomass wood pellet mill machine with CE certification free sea shipping to port

Model: MKL225,

MKL229,

MKL295,

MKL335,MKL339

Remarks:

1) the Model number means the diameter of the flat die of the feed pellet machine

2) the diameter of the final product pellet is Φ2.5-10 mm .

Model: MKL225

Capacity : 400-500kg/h

Match Power : 7.5kw

Weight :580/600 kg

Driven by three or two rollers.

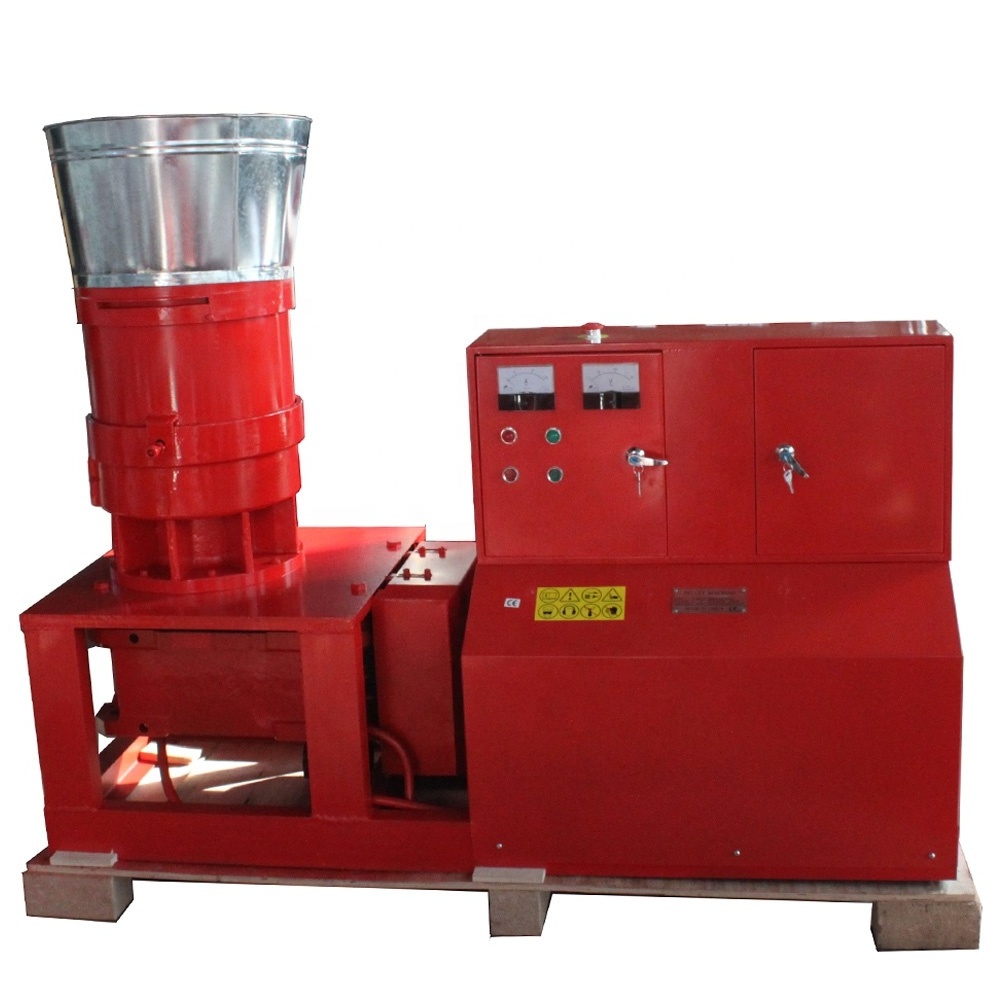

This electric flat die pellet mill has roller-driven design which ensures more powerful compression on the materials, so it can process hardwood materials into biomass pellets more easily than other die-driven pellet mills. With self-lubrication system and a little large capacity 400-500kg/h, it is an ideal choice for you to start a pellets business at home or workshop. High efficiency and low power consumption, our roller-driven pellet mill can make profits quickly for you. Roller Driven Flat Die Pellet Mill Working PrincipleThe main parts of flat die pellet mill are two rotating rollers and a stationary pellet die. When the machine works, the rotating roller will press material into the die hole of the stationary die. There are two highlights of pellet mill driven by rotating rollers. One isthat this design can prolong pellet mill service life, the other is it make wood pellets more smooth and solid.

A: New flat die pellet mill in first use may not produce pellets, because of the low smoothness of mould and bad cooperation in new devices. After using oily material for a period, the pellet machine can run smoothly.
B: The clearance between rollers and dies is too large. You can tighten the screw to narrow the gap to 1.5-2.5 mm.
C: Necessary steps to update a new die or roller shell because of wear and tear caused by long-term service.
D: The material is too wet or too dry, resulting in low productivity. You’d better increase or decrease the moisture to proper rate, generally 14%-16% in raw material.

Kinds of raw materials

Pellets as Stove Fuel

Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.

Advantage of Wood Pellet Mill

1. With reasonable design and compact structure. The MKL wood pellet mill is designed to be connected and disconnected easily. 2. Easy and convenient to use. Since the machine can connected with the tractor, so it is easy to move the MKL pellet mill . 3. Low energy consumption and high efficient. Since the MKL wood pellet mill is powered by the tractor, it can work continuously and use less energy.

4. With a competitive price. Since the MKL wood pellet mill is without power engine, so the price the lower and the farmers can take advantage of their tractors to be used as the power.                    5. Can customized according your requirement. We have 8 different models of MKL wood pellet mill in different size and production capacity, we can offer you MKL pellet mill according to your requirement.
